Description

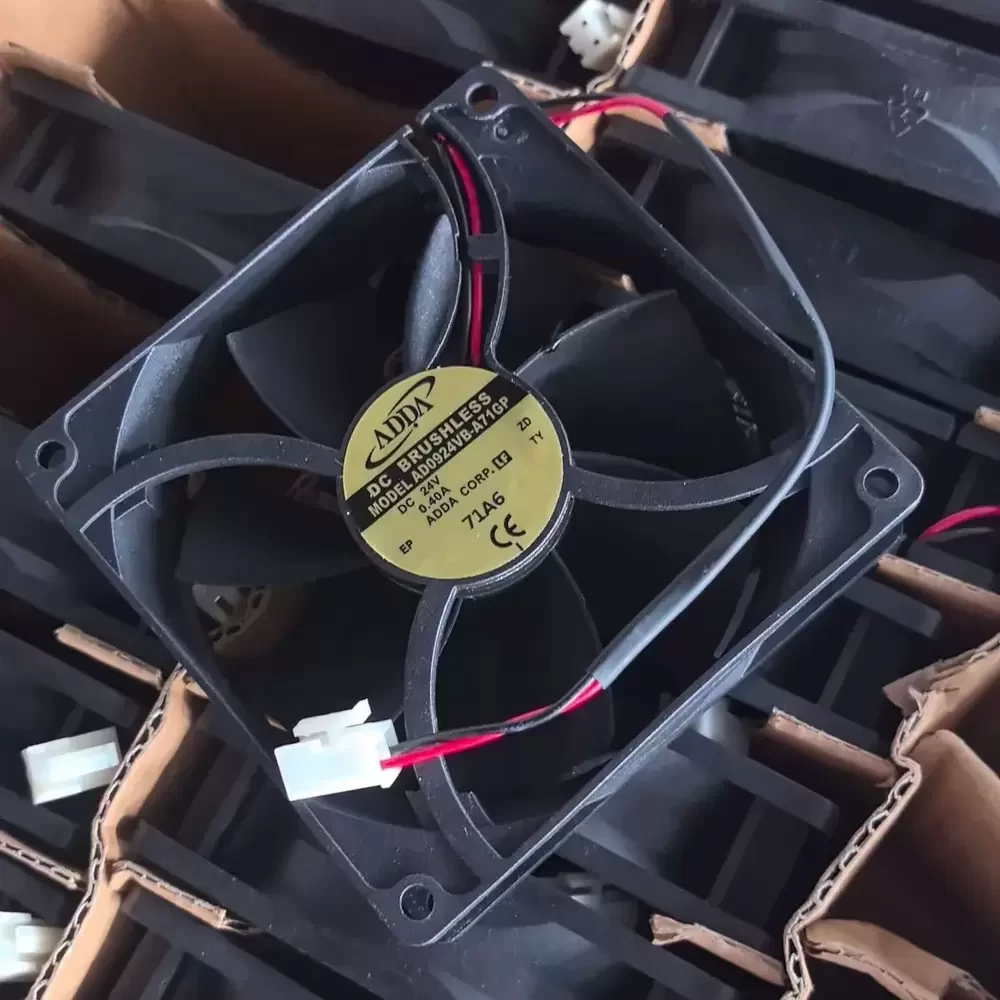

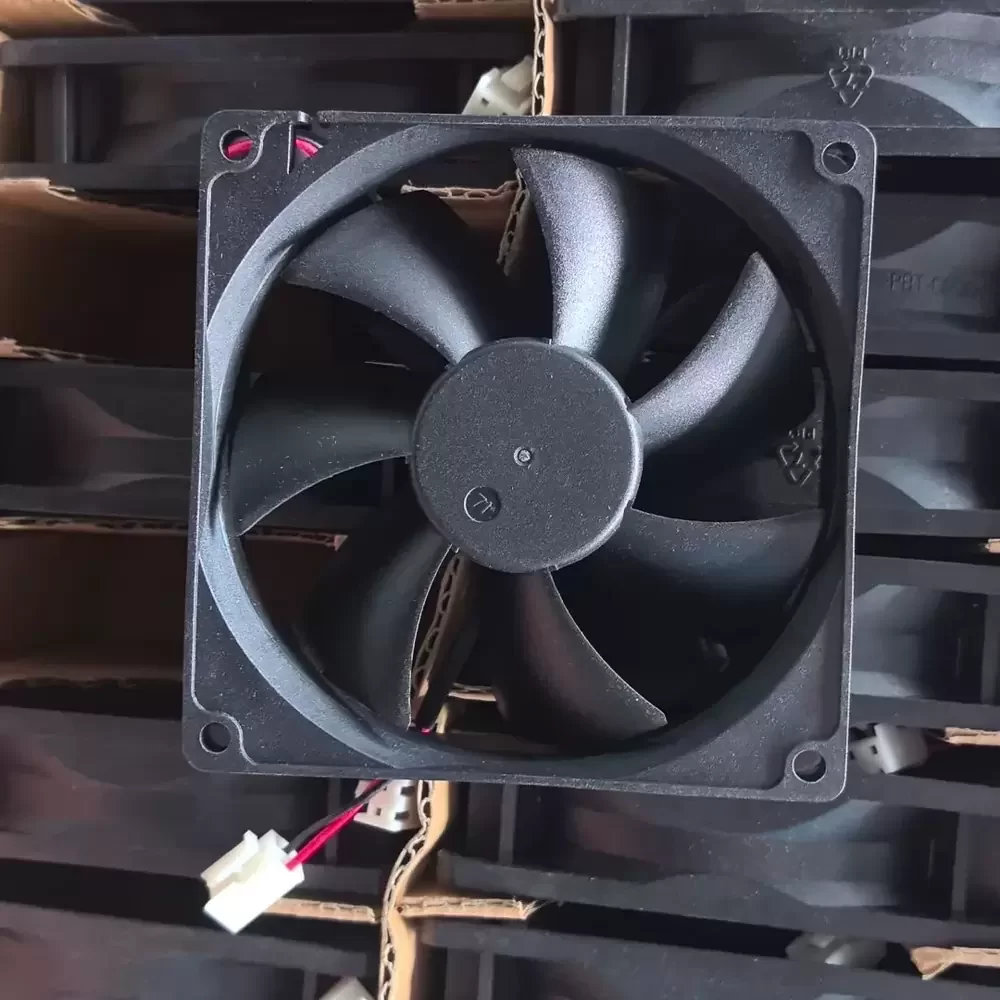

The ADDA AD0924VB-A71GP is a precision-engineered DC axial fan designed for critical thermal management in industrial environments. Utilizing advanced DC brushless motor technology, this unit delivers consistent airflow while maintaining optimal energy efficiency. The architecture features a robust ball bearing system, ensuring a reduced friction coefficient and extended operational lifespan under continuous load. Its aerodynamic impeller design minimizes turbulence, thereby lowering acoustic noise while maximizing static pressure capabilities. Constructed with high-grade thermoplastic materials, the fan offers superior structural rigidity and resistance to thermal deformation, making it an ideal solution for reducing thermal impedance in high-density electronic enclosures.
Model Number: AD0924VB-A71GP
Brand: ADDA
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.40 A
Power Consumption: 9.60 W
Rated Speed: 3400 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 60.0 CFM (101.9 m³/h)
Max. Static Pressure: 6.5 mmH₂O (63.7 Pa)
Dimensions: 92 x 92 x 25 mm
Weight: 95 g
Life Expectancy: 70,000 Hours @ 40°C
Termination: 2-Wire Lead
Housing Material: PBT (UL94V-0)
Impeller Material: PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Safety Certifications: UL, CUL, TUV, CE
The AD0924VB-A71GP is engineered for demanding industrial applications requiring reliable forced air cooling. It is frequently deployed in variable frequency drive (VFD) inverters, server rack enclosures, and telecommunications equipment where continuous operation is paramount. The robust design of the AD0924VB-A71GP also makes it suitable for CNC machinery control panels and medical instrumentation, ensuring sensitive components remain within safe thermal operating limits.
