Description

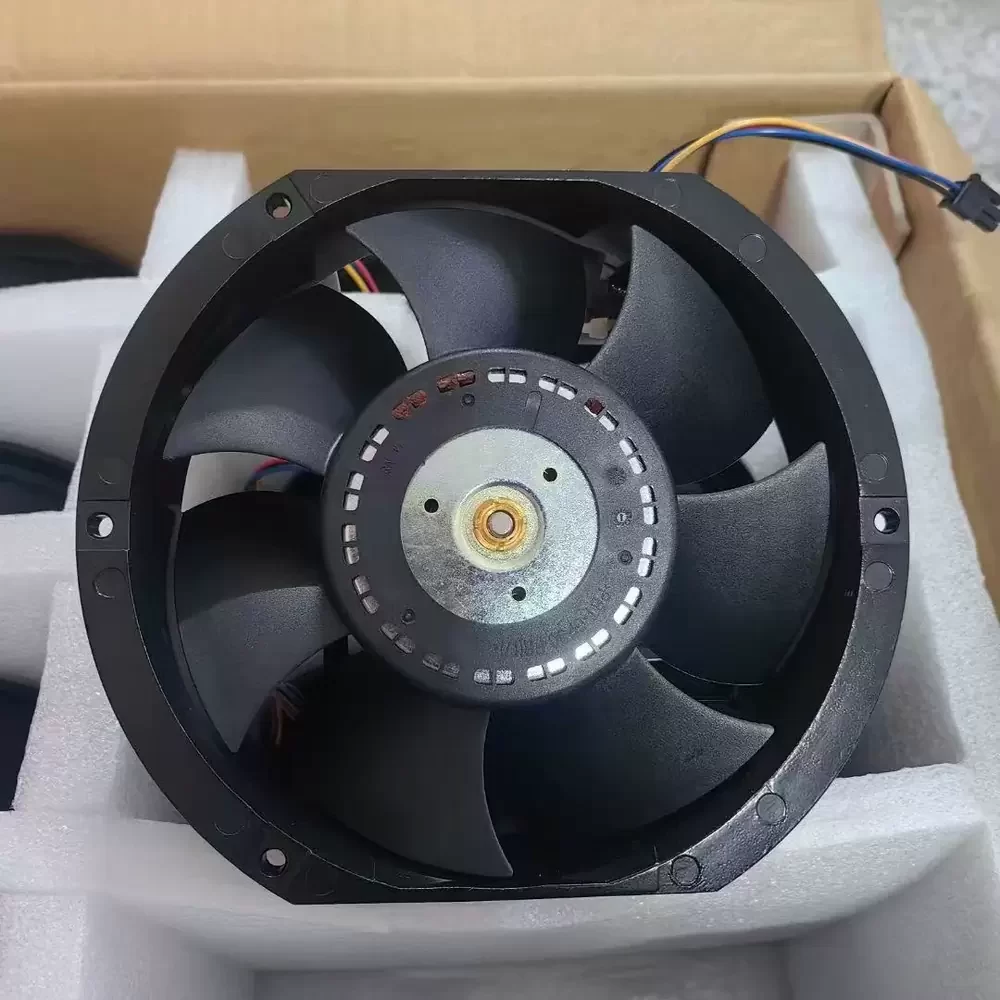

The AVC DATC1551B8F-P039 is a high-performance DC axial fan engineered for mission-critical thermal management in high-density server environments. Featuring a robust dual ball bearing architecture, this unit ensures exceptional longevity and mechanical stability under continuous high-speed operation. The aerodynamic impeller design optimizes airflow dynamics to minimize thermal impedance while maintaining structural rigidity against significant backpressure. Designed for 48VDC systems, it delivers substantial static pressure and volumetric flow, making it an ideal solution for overcoming high-resistance ventilation paths in dense electronic enclosures and industrial cabinets.
Model Number: DATC1551B8F-P039
Brand: AVC (Asia Vital Components)
Product Type: DC Axial Fan
Rated Voltage: 48 VDC
Voltage Range: 36.0 – 57.0 VDC
Rated Current: 3.25 A
Power Consumption: 156.0 W
Rated Speed: 5800 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 365.0 CFM (620.1 m³/h / 10.33 m³/min)
Max. Static Pressure: 1.85 inH₂O (460.5 Pa / 46.99 mmH₂O)
Dimensions: 172 x 150 x 51 mm
Frame Style: Oval (Side Cut)
Frame Material: Die-Cast Aluminum
Impeller Material: Thermoplastic PBT (UL94V-0)
Noise Level: 68.5 dB(A)
Termination: 4-Wire Leads with Connector
Speed Control: PWM (Pulse Width Modulation)
Signal Output: Tachometer (Frequency Generator)
Ingress Protection: IP20
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 70,000 Hours at 40°C
Safety Protection: Locked Rotor Protection, Polarity Protection
This high-capacity cooling solution is specifically calibrated for deployment in enterprise-grade server racks and telecommunications infrastructure where heat dissipation is critical. The DATC1551B8F-P039 excels in forcing air through dense component arrays, ensuring optimal operating temperatures for sensitive hardware. Additionally, the DATC1551B8F-P039 is frequently utilized in industrial automation equipment, rectifiers, and high-power supply units requiring reliable, high-static pressure ventilation to prevent thermal throttling.
