Description

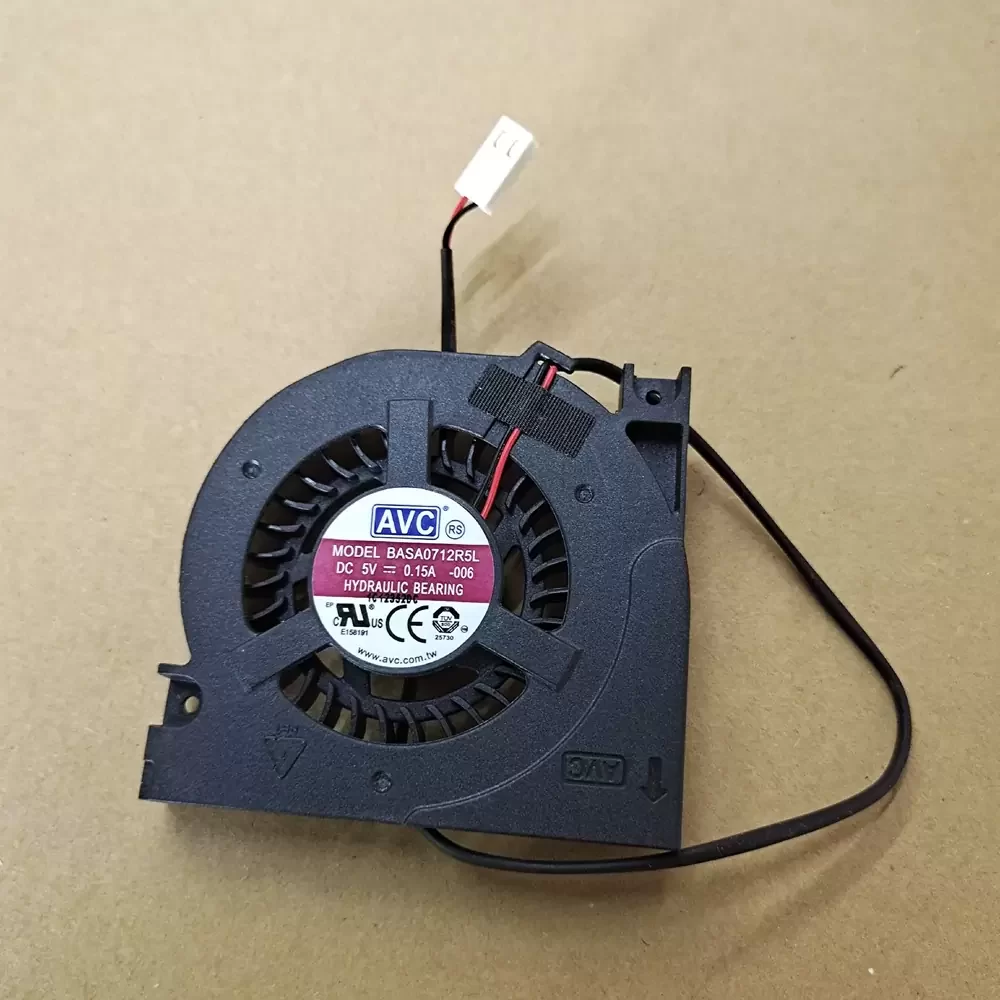

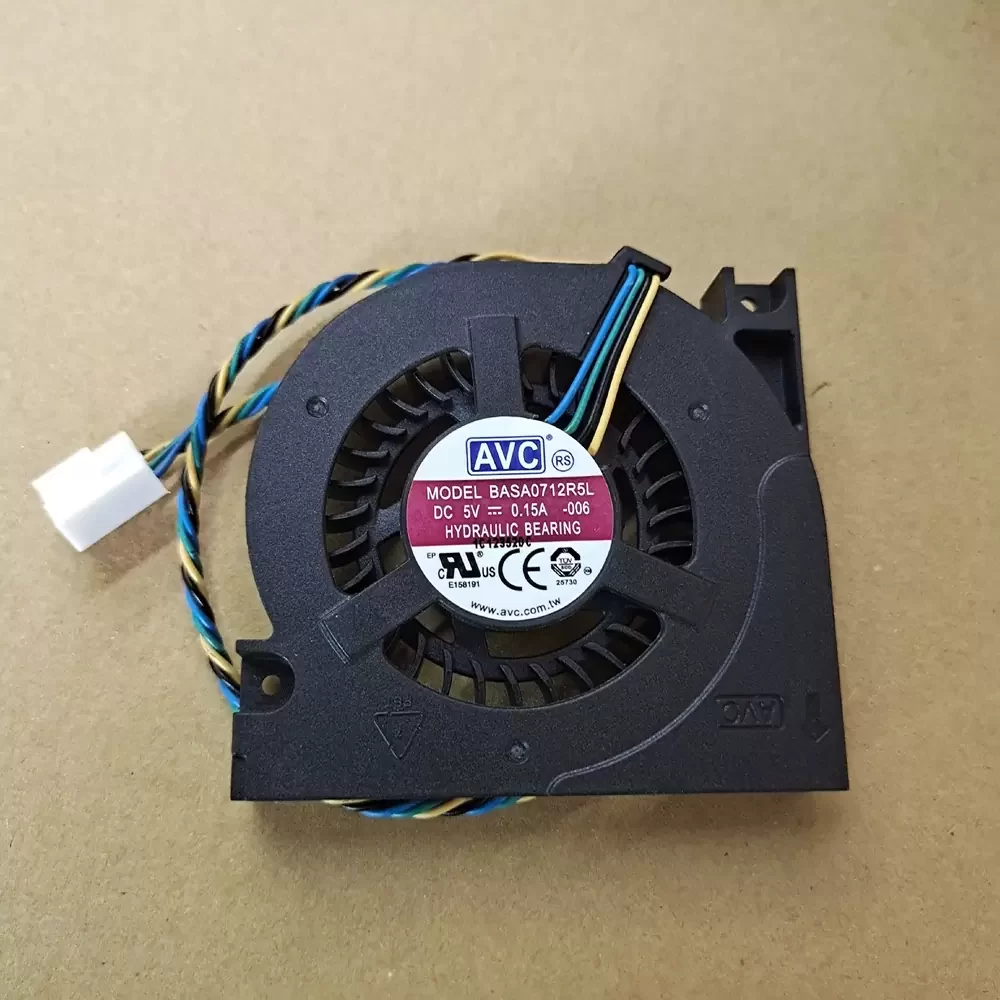

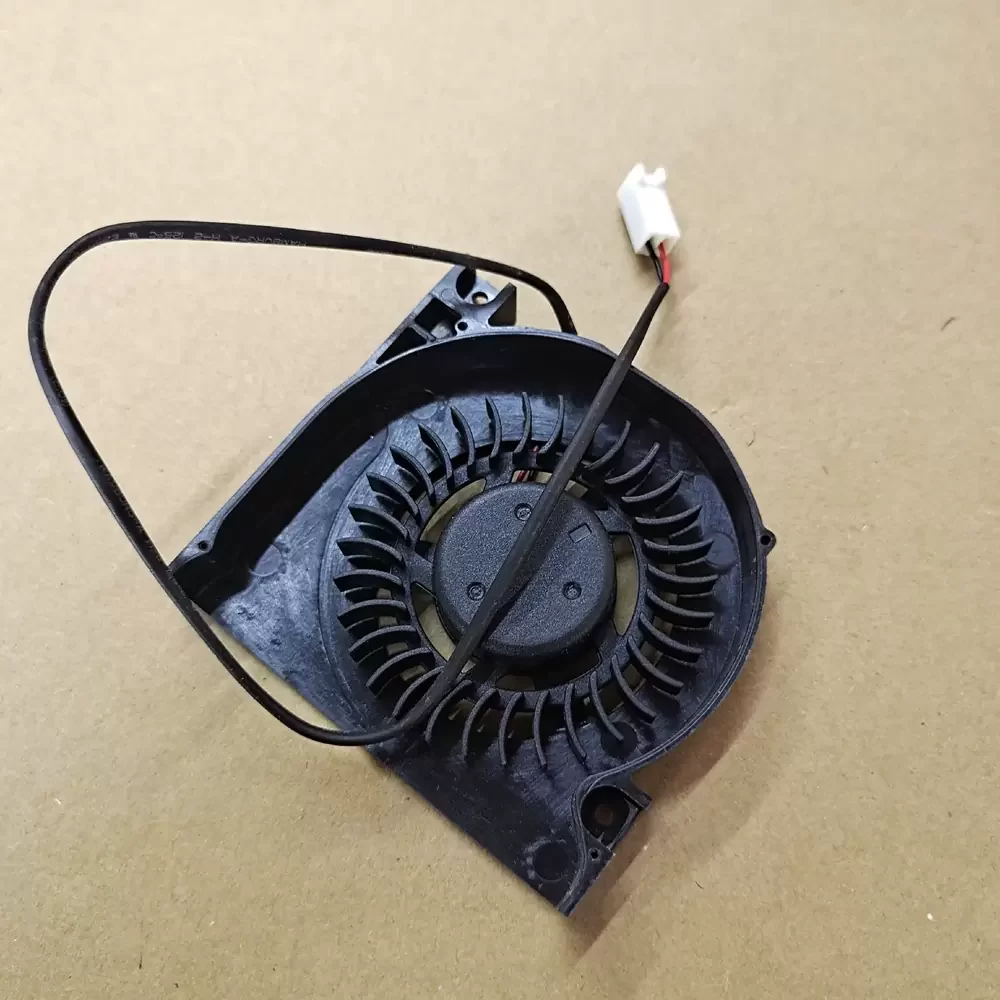

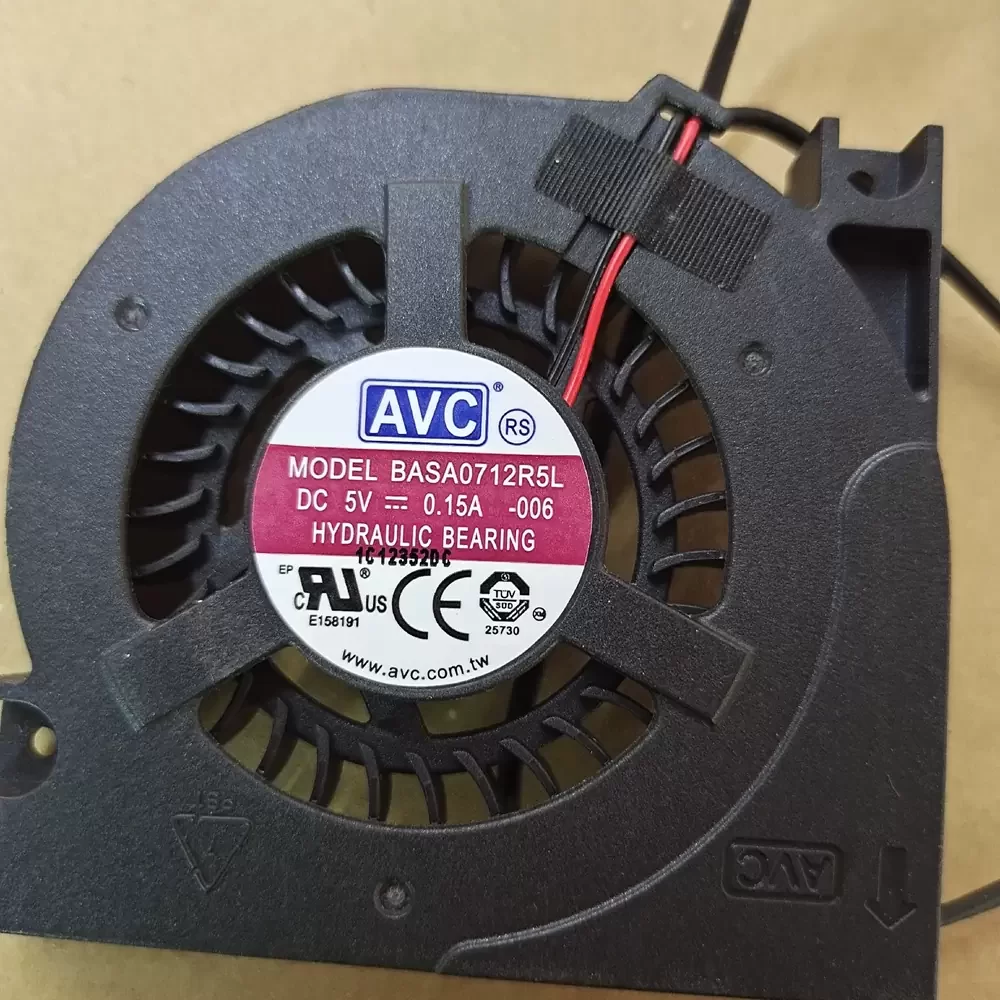

The AVC BASA0712R5L-006 is a 5VDC 70x70x12mm Blower optimized for low-profile thermal management in noise-sensitive environments. Engineered with a high-efficiency DC motor and precision bearing architecture, this unit minimizes thermal impedance while maintaining structural rigidity in compact enclosures. Operating at a rated current of 0.15A and a specialized low speed of 1650 RPM, it delivers consistent laminar airflow with minimal acoustic output. The aerodynamic centrifugal impeller is designed to overcome moderate static pressure, making it an ideal solution for localized cooling where standard axial fans cannot provide the necessary directional airflow or clearance.
Model Number: BASA0712R5L-006
Brand: AVC
Product Type: Blower Fan
Rated Voltage: 5 VDC
Voltage Range: 4.5 – 5.5 VDC
Rated Current: 0.15 A
Power: 0.75 W
Rated Speed: 1650 RPM
Bearing Type: Hydraulic/Sleeve System
Max. Air Flow: 4.2 CFM
Max. Static Pressure: 2.15 mmH₂O

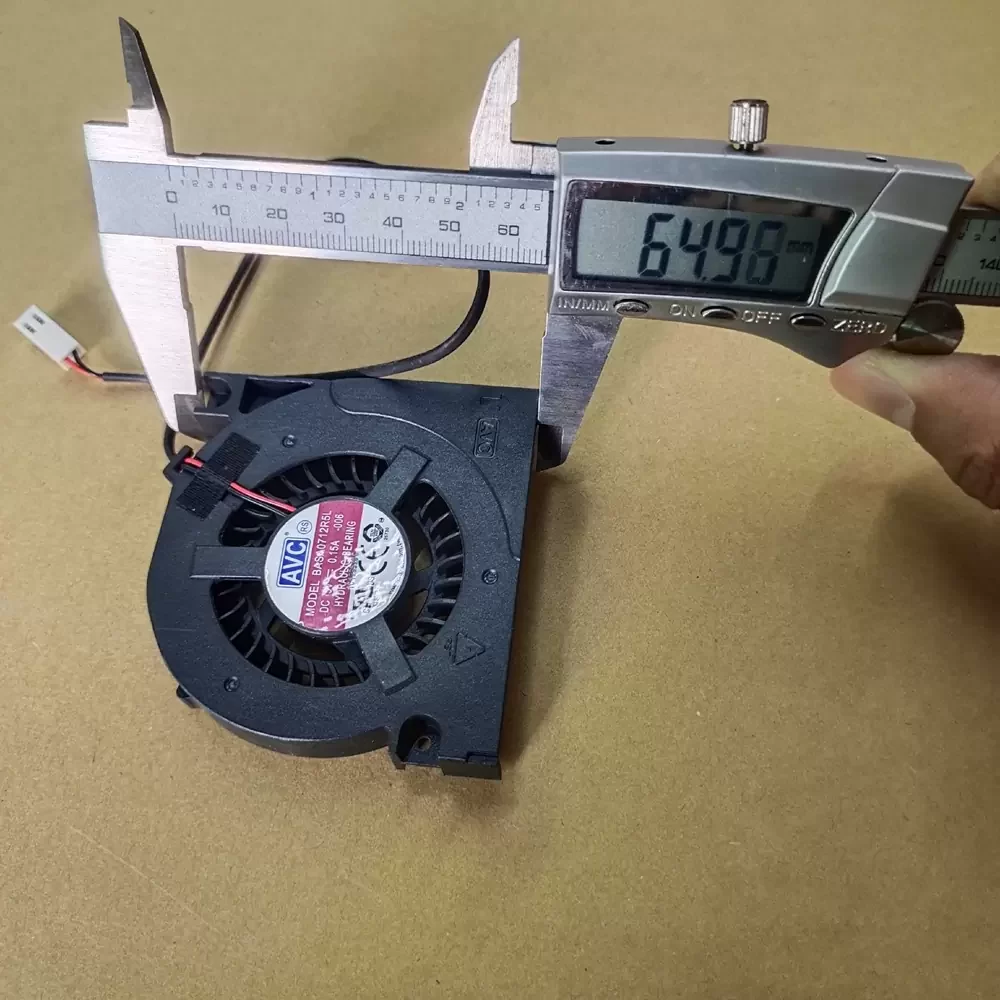

Dimensions: 70 x 70 x 12 mm
Weight: 35 g
Life Expectancy: 30,000 Hours at 40°C
Noise Level: 18.5 dBA
Housing Material: UL94V-0 Plastic
Blade Material: UL94V-0 Plastic
Termination: 2-Wire Lead Wires
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Mounting Orientation: All Directions
Protection Features: Locked Rotor Protection, Polarity Protection
BASA0712R5L-006 Applications
1. Ultra-Quiet Media Centers: The 1650 RPM low-vibration profile provides silent operation for home theater PCs and set-top boxes where acoustic interference must be eliminated.
2. Compact Projector Cooling: The 12mm slim centrifugal design allows for precise directional exhaust in tight optical engine compartments, serving as a high-reliability replacement fan.
3. Portable Medical Instrumentation: Low power consumption (0.75W) and 5VDC compatibility make it ideal for battery-operated diagnostic tools requiring steady, low-noise thermal regulation.
