AF750-30-11 ABB 1050A 400kW 3P 1000V Industrial Contactor

Description

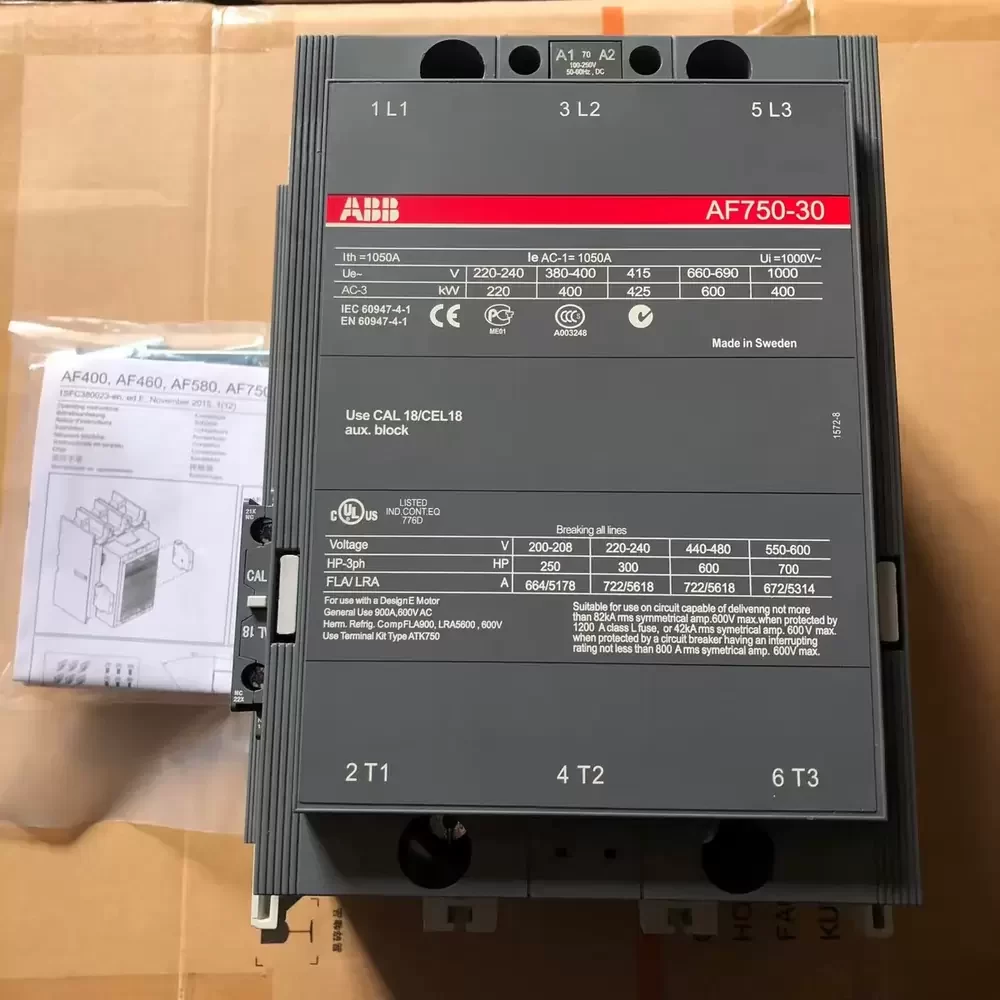

ABB AF750-30-11 is a 3-pole power contactor featuring a 210 mm width, 1050 A rated operational current (AC-1), and 400 kW power rating at 400 V. It incorporates AF technology with an electronically controlled coil for wide voltage range management and integrated surge suppression. The unit is constructed with main circuit bars and pre-mounted 1 NO + 1 NC auxiliary contacts. It utilizes a block-type design with a net weight of 13.6 kg and dimensions of 210 x 242 x 283 mm.

AF750-30-11 Specifications
Model: AF750-30-11
Brand: ABB
Number of Poles: 3
Rated Operational Current AC-1: 1050 A
Rated Operational Current AC-3: 750 A
Rated Operational Power AC-3: 400 kW
Rated Operational Voltage: 1000 V AC
Rated Impulse Withstand Voltage: 8 kV
Auxiliary Contacts: 1 NO + 1 NC
Width: 210 mm
Depth: 242 mm
Height: 283 mm
Net Weight: 13.6 kg
Operating Temperature: -40 to 70 °C
IP Rating: IP00 (Main Terminals) / IP20 (Coil Terminals)
Mechanical Durability: 3 million cycles
Standards: IEC 60947-4-1, UL 508, CSA C22.2

AF750-30-11 Applications
Primary applications include integration into large-scale motor starting systems, industrial isolation units, and high-capacity power distribution panels. Deployed within bypass circuits for soft starters and variable speed drives, as well as heavy-duty HVAC control systems and pumping stations.
