NES-35-12 Mean Well 12VDC 3A 36W Switching Power Supply

Description

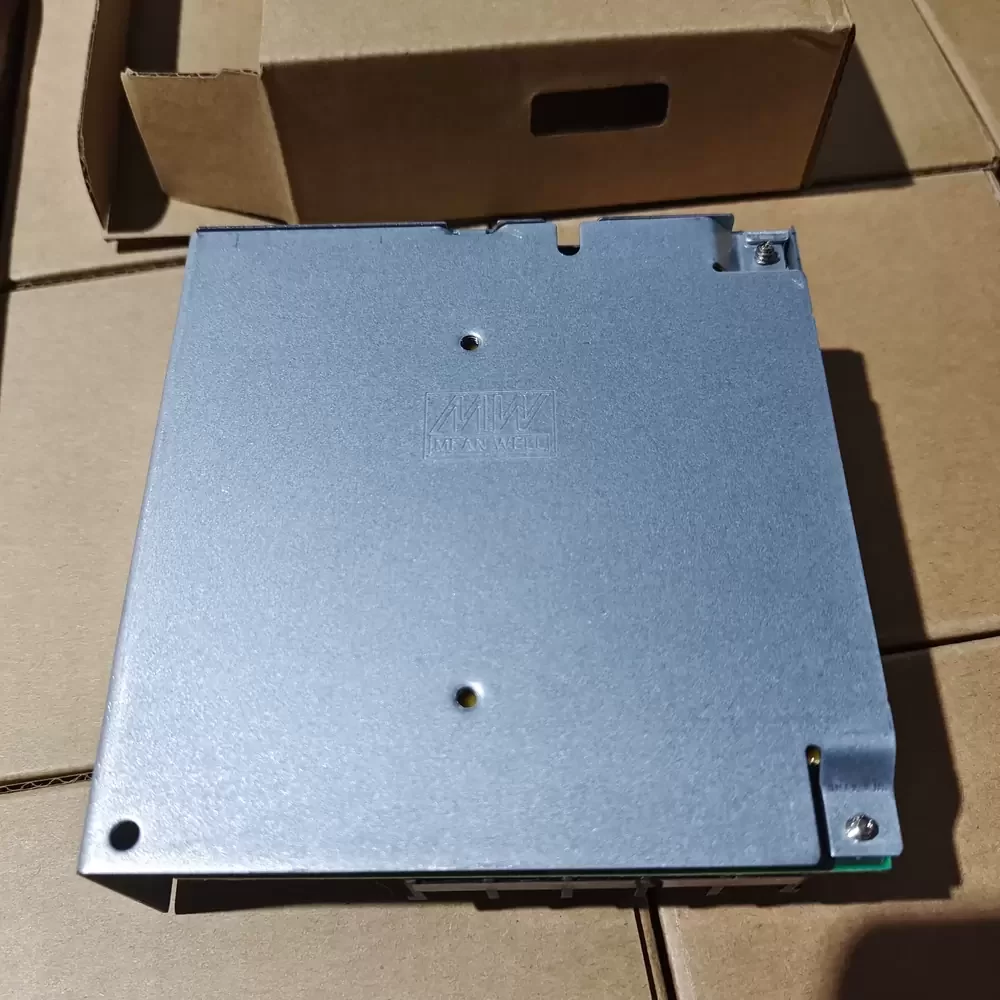

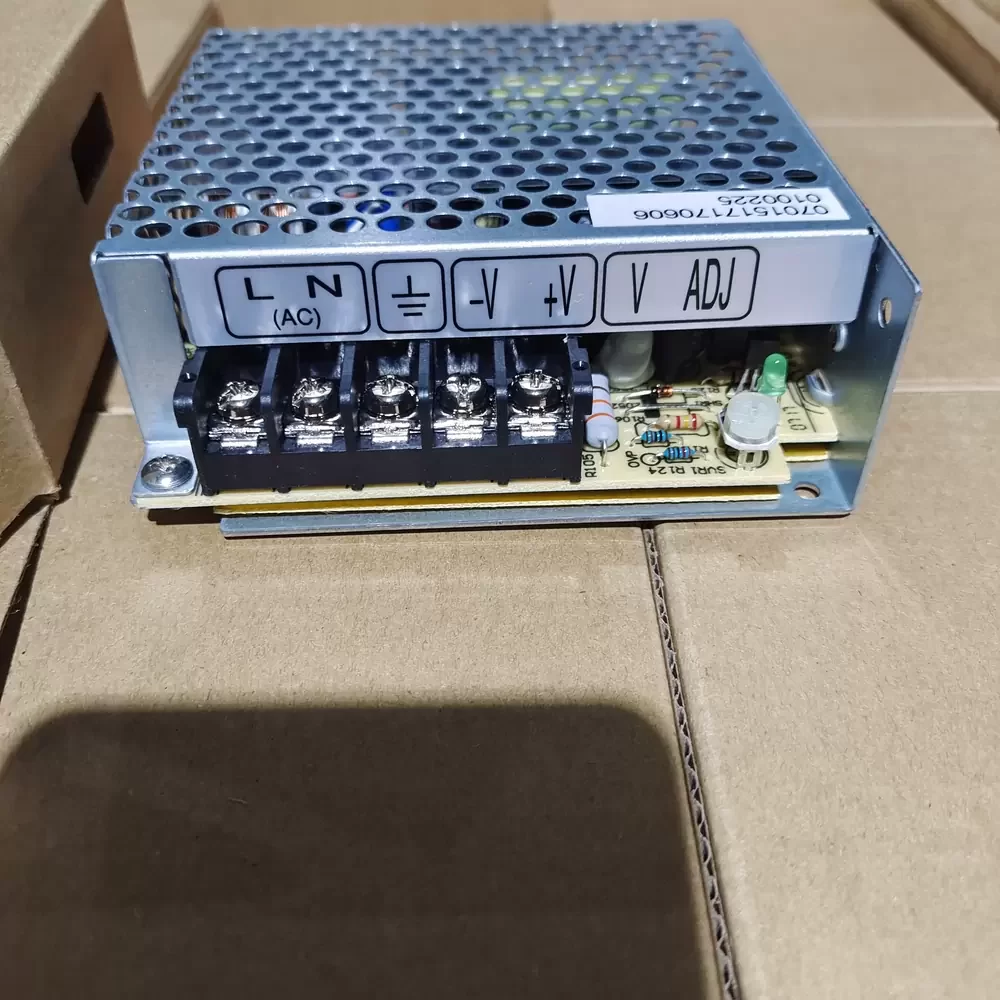

Mean Well NES-35-12 99 x 97 x 36 mm 12 VDC 3 A enclosed AC/DC switching power supply is a chassis-mounted component designed for regulated voltage conversion. It features a universal AC input range of 85 to 264 VAC and a DC input range of 120 to 370 VDC. The unit is constructed with a metallic chassis for free air convection cooling and utilizes a screw terminal block interface for input and output connections. Integrated protections include hiccup mode for short circuit and overload conditions, alongside a shut-down mechanism for over voltage. The internal circuitry supports a 36 W power rating with a typical efficiency of 81 % and a ripple and noise peak of 120 mVp-p.

NES-35-12 Specifications
Model: NES-35-12
Brand: Mean Well
Category: Enclosed AC/DC Switching Power Supply
DC Voltage: 12 VDC
Rated Current: 3 A
Current Range: 0 to 3 A
Rated Power: 36 W
Ripple and Noise (max.): 120 mVp-p
Voltage Adjustment Range: 10.8 to 13.2 VDC
Voltage Tolerance: ±1.0 %
Line Regulation: ±0.5 %
Load Regulation: ±0.5 %
Setup, Rise Time: 500 ms, 30 ms / 230 VAC
Hold Up Time (typ.): 50 ms / 230 VAC
Input Voltage Range: 85 to 264 VAC / 120 to 370 VDC
Input Frequency Range: 47 to 63 Hz
Efficiency (typ.): 81 %
AC Current (typ.): 0.75 A / 115 VAC, 0.5 A / 230 VAC
Inrush Current (typ.): 45 A / 230 VAC
Leakage Current: < 2 mA / 240 VAC
Overload Protection: 110 to 150 % rated output power
Over Voltage Protection: 13.8 to 16.2 V
Working Temperature: -20 to +60 °C
Working Humidity: 20 to 90 % RH non-condensing
Storage Temperature: -40 to +85 °C
Storage Humidity: 10 to 95 % RH
Temperature Coefficient: ±0.03 % / °C (0 to 45 °C)
Vibration: 10 to 500 Hz, 2 G 10 min / 1 cycle, 60 min each along X, Y, Z axes
Safety Standards: UL60950-1, CB, CE approved
Withstand Voltage: I/P-O/P: 3 kVAC, I/P-FG: 1.5 kVAC, O/P-FG: 0.5 kVAC
Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100 M Ohms / 500 VDC / 25 °C / 70 % RH
Dimensions: 99 x 97 x 36 mm (L*W*H)
Weight: 0.3 kg

NES-35-12 Applications
Primary applications include integration into industrial automation control systems, LED signage power distribution, and telecommunications equipment racks. Deployed within security monitoring hardware and small-scale electronic test benches requiring regulated 12 VDC voltage.
