Description

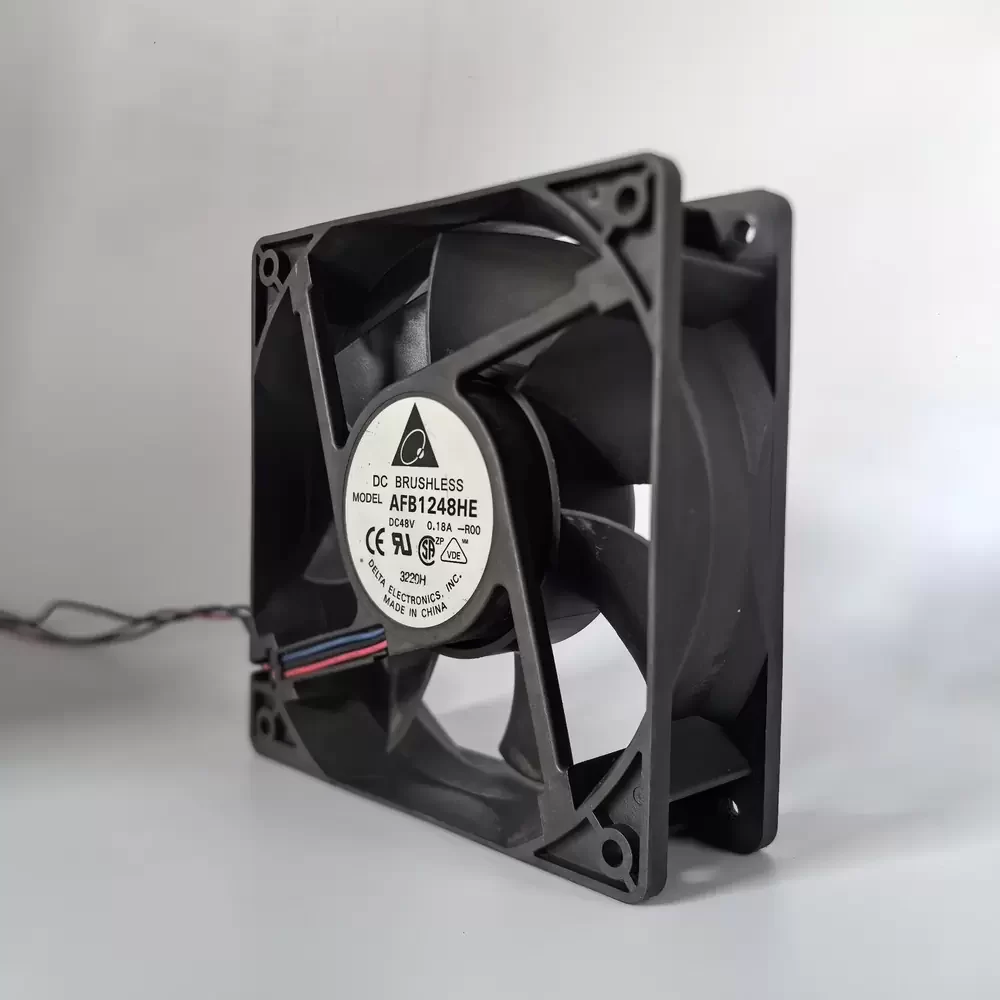

The Delta AFB1248HE-R00 is a precision-engineered DC Axial Fan designed for critical thermal management in industrial environments. Utilizing advanced dual ball bearing architecture, this unit ensures long-term structural rigidity and operational stability under continuous load. The aerodynamic impeller design optimizes airflow efficiency while minimizing thermal impedance, making it suitable for high-static pressure applications. The integrated R00 rotation detector sensor provides real-time feedback on fan status, enhancing system reliability. Constructed with UL94V-0 rated thermoplastic, the housing offers robust protection against environmental stressors, ensuring consistent performance in demanding server and telecommunication infrastructures.
Model Number: AFB1248HE-R00
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 48 VDC
Voltage Range: 28.0 – 56.0 VDC
Rated Current: 0.18 A
Power: 8.64 W
Rated Speed: 2600 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 105.94 CFM (180.0 m³/h / 3.00 m³/min)
Max. Static Pressure: 9.00 mmH₂O (88.26 Pa / 0.35 inH₂O)

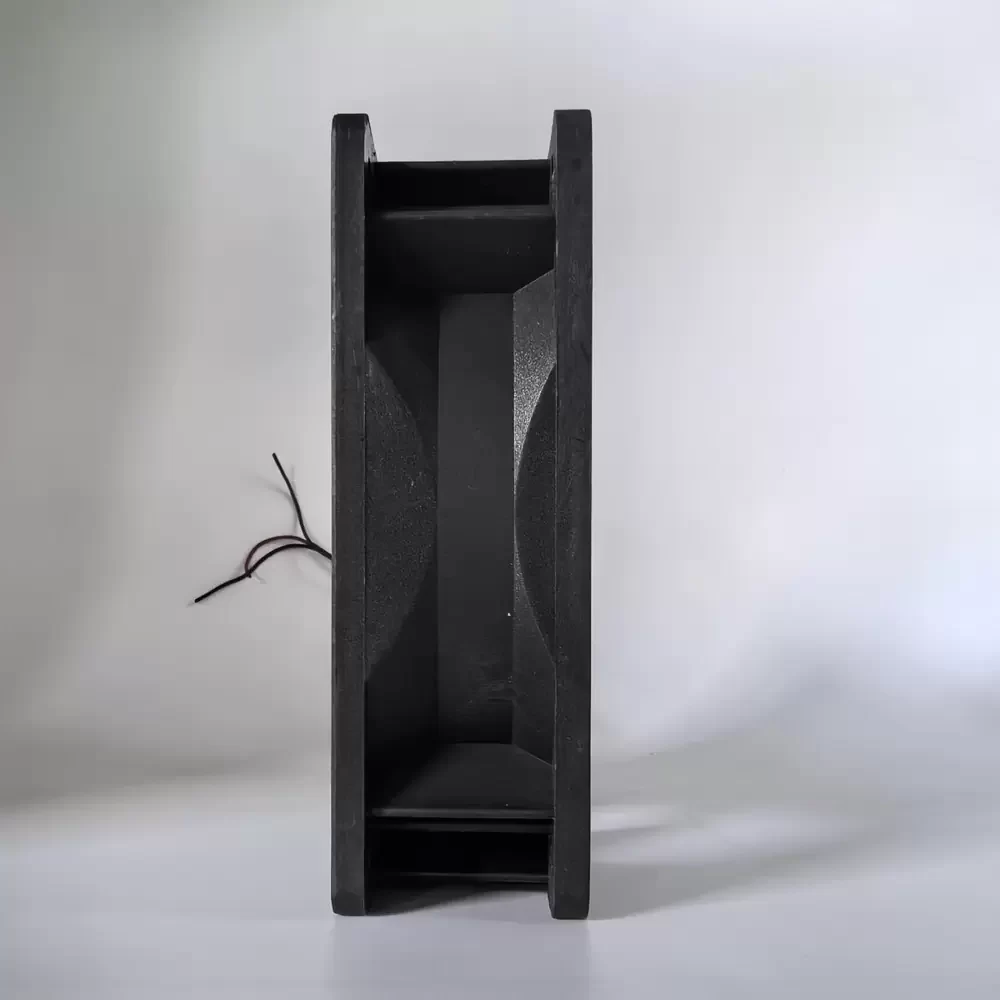

Dimensions: 120 x 120 x 38 mm
Weight: 256 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 41.0 dBA
Sensor Type: R00 (Rotation Detector / Locked Rotor)
Termination: 3-Wire Leads
Housing Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Insulation Resistance: 10 Megohms min at 500 VDC
Dielectric Strength: 500 VAC for 1 minute
Protection: Polarity Protection, Locked Rotor Protection
The AFB1248HE-R00 is engineered for high-density electronic enclosures requiring reliable forced convection cooling. Common deployment scenarios include rack-mounted server chassis, industrial automation control panels, and telecommunication base stations where continuous uptime is mandatory. The AFB1248HE-R00 effectively dissipates heat from power supply units and CNC machinery, ensuring component longevity by maintaining optimal operating temperatures within restricted spaces.
