9WG5748P5HD004 Sanyo Denki 48V 172x150x51mm IP68 Axial Fan

Description

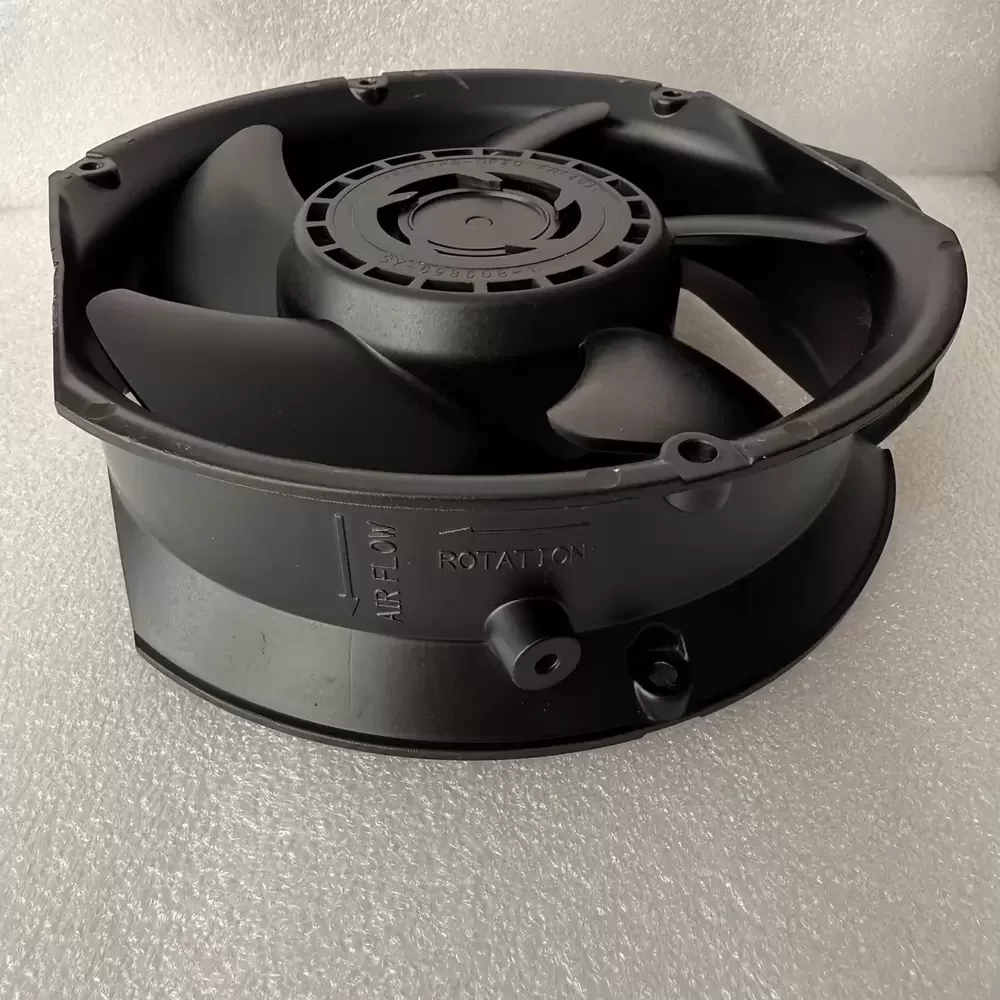

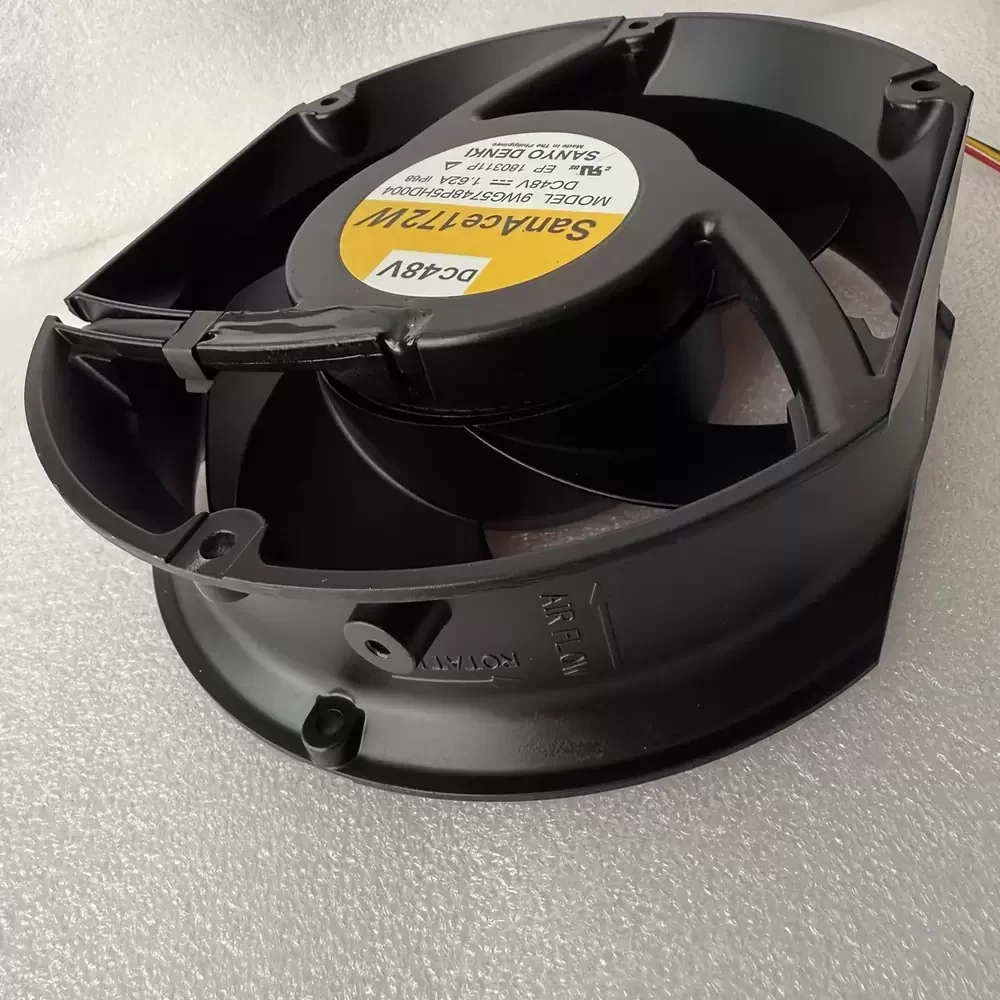

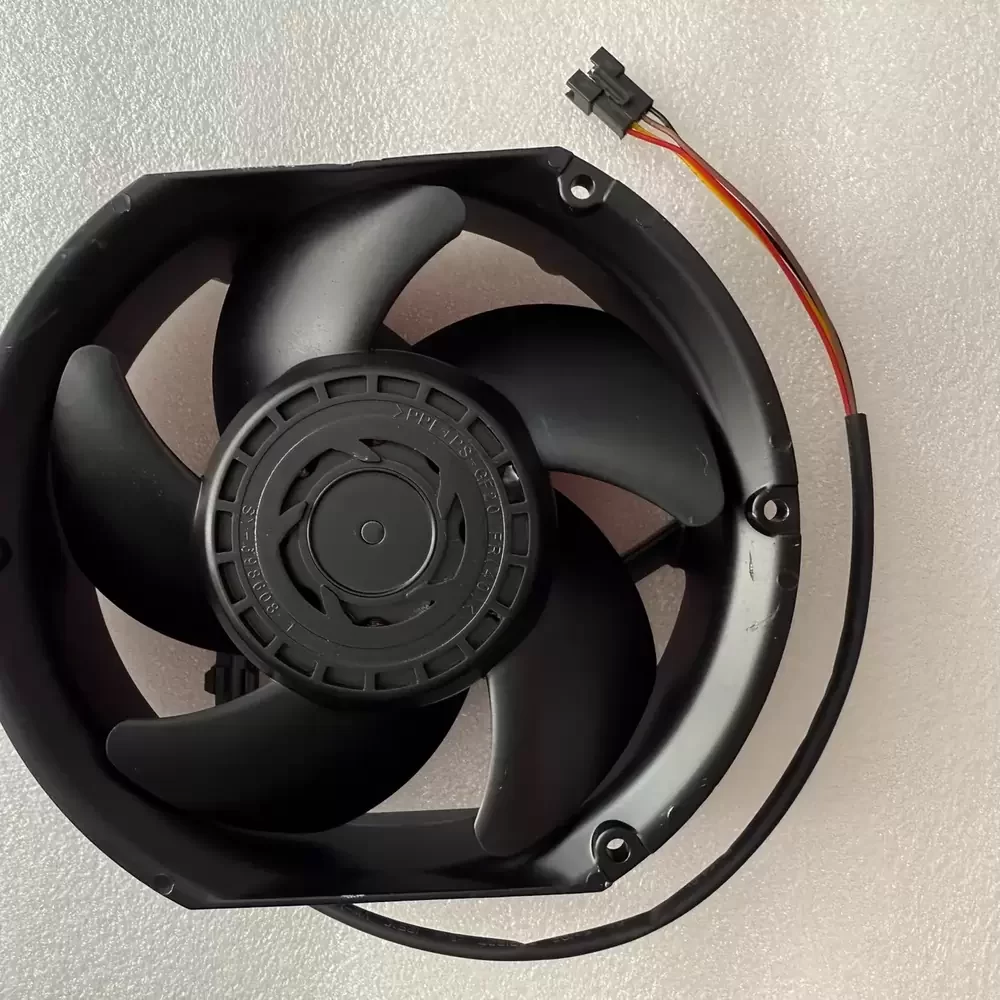

Sanyo Denki 9WG5748P5HD004 is a 172 x 150 x 51 mm axial fan operating at 48 V DC with a rated current of 1.62 A and a power consumption of 77.76 W. The unit features an aluminum frame and a plastic impeller rated UL 94V-0, utilizing a dual ball bearing system for mechanical rotation. It delivers a maximum airflow of 11.3 m³/min (399 CFM) and a maximum static pressure of 550 Pa at a rated speed of 8400 RPM. The internal circuitry is fully encapsulated to achieve an IP 68 ingress protection rating, ensuring operation in environments with water and dust exposure. Control is managed via a PWM interface for variable speed adjustment.

9WG5748P5HD004 Specifications
Model: 9WG5748P5HD004
Brand: Sanyo Denki
Series: San Ace 172 9WG
Frame Size: 172 x 150 x 51 mm
Rated Voltage: 48 V DC
Operating Voltage Range: 36 to 72 V DC
Rated Current: 1.62 A
Rated Input: 77.76 W
Rated Speed: 8400 RPM
Max Airflow: 11.3 m³/min
Max Airflow: 399 CFM
Max Static Pressure: 550 Pa
Max Static Pressure: 2.21 inchH2O
Sound Pressure Level: 68 dB (A)
Operating Temperature: -20 to +70 °C
Storage Temperature: -30 to +70 °C
Life Expectancy: 40000 hours at 60 °C
IP Rating: IP 68
PWM Control: Yes
Bearing Type: Dual Ball Bearing
Frame Material: Aluminum
Impeller Material: Plastic (UL 94V-0)
Mass: 860 g

9WG5748P5HD004 Applications
Primary applications include integration into outdoor telecommunications base stations, solar power inverters, and industrial frequency converters requiring high-pressure thermal management. Deployed within commercial EV charging stations and large-scale server rack cooling systems where exposure to moisture or particulate matter is prevalent.
