Description

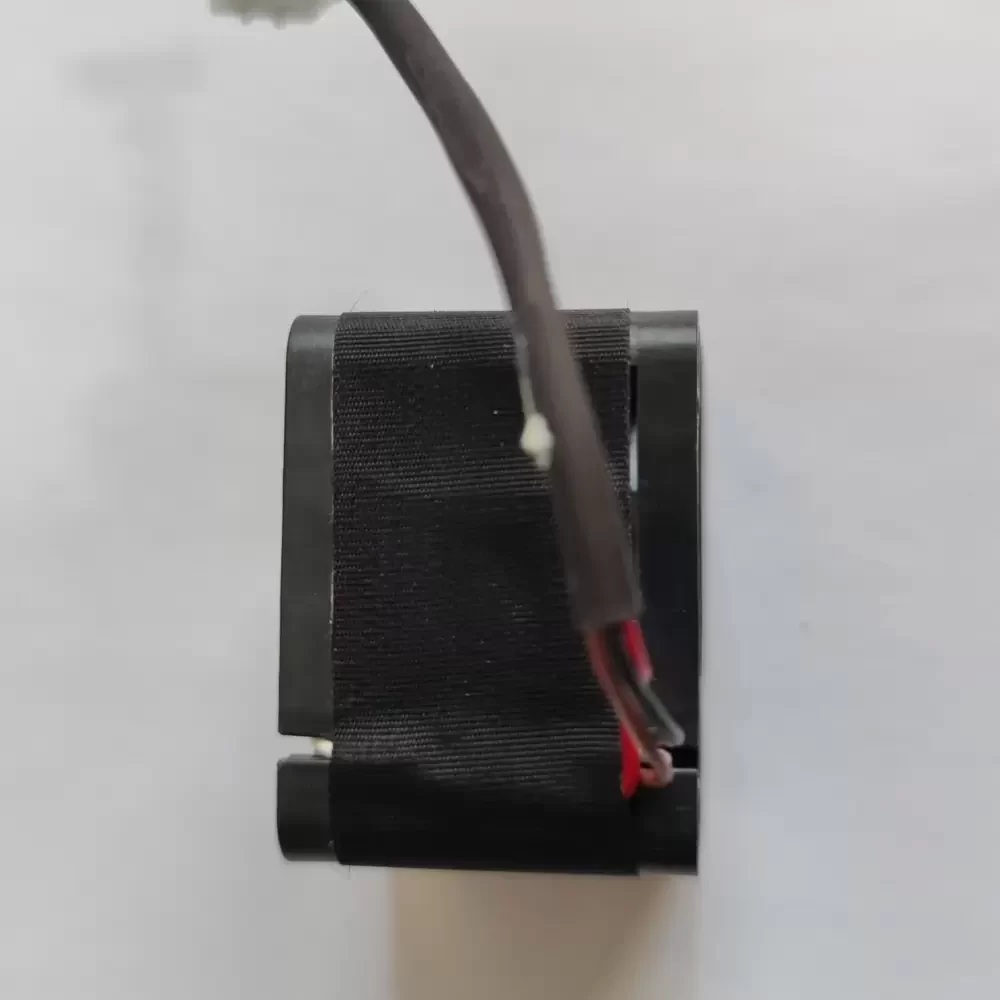

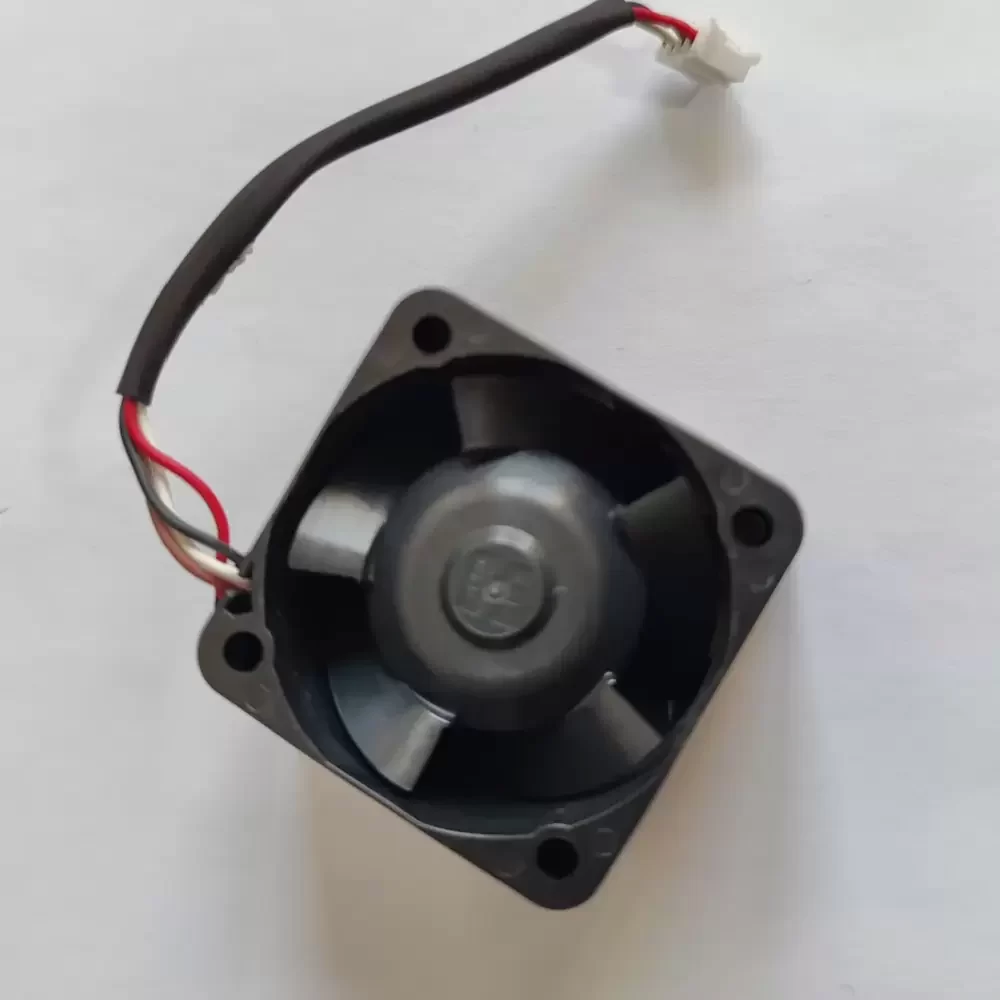

NMB 03828DA-12Q-BU-01 is a 12VDC 38x28mm Axial Fan optimized for high-density thermal management in space-constrained environments. This compact cooling solution utilizes a brushless DC motor integrated with a precision dual ball bearing architecture to ensure long-term reliability and reduced thermal impedance. The aerodynamic design of the UL94V-0 plastic impeller is engineered for structural rigidity, allowing the fan to overcome significant system resistance. Operating at a rated current of 0.75A with a power consumption of 9.0W, it features a 4-wire PWM interface for dynamic speed modulation, making it an ideal replacement fan for high-performance server nodes and power supply units requiring efficient heat dissipation.
Model Number: 03828DA-12Q-BU-01
Brand: NMB (MinebeaMitsumi)
Product Type: Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.75 A
Power: 9.0 W
Rated Speed: 18500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 18.5 CFM (31.4 m³/h / 0.52 m³/min)
Max. Static Pressure: 450 Pa (1.81 inH₂O)
Dimensions: 38 x 38 x 28 mm
Weight: 45 g
Life Expectancy: 70,000 hours
Speed Control: 4-Wire (PWM + Tachometer)
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Termination: 4-Lead Wires
Operating Temperature: -10 to +70 °C
Protection: Locked Rotor Protection, Reverse Polarity Protection
03828DA-12Q-BU-01 Applications
1. 1U/2U Server Nodes: High static pressure allows for efficient cooling through dense heatsink fins in compact rackmount chassis.
2. Network Switch and Router Modules: The 38mm form factor is ideal for modular line cards where high-velocity airflow is required to prevent localized hotspots.
3. Industrial Power Supplies: Serves as a critical replacement fan for high-wattage PSUs where overcoming internal component impedance is necessary for thermal stability.
