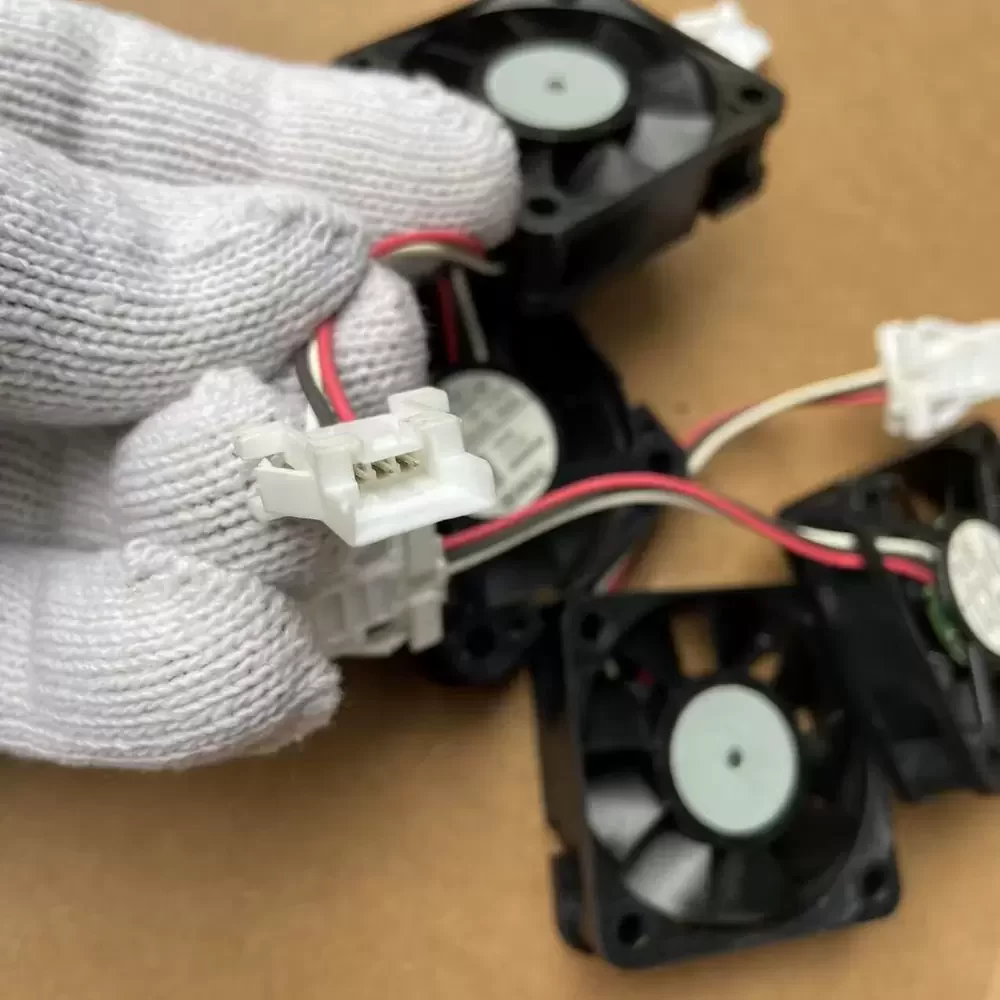

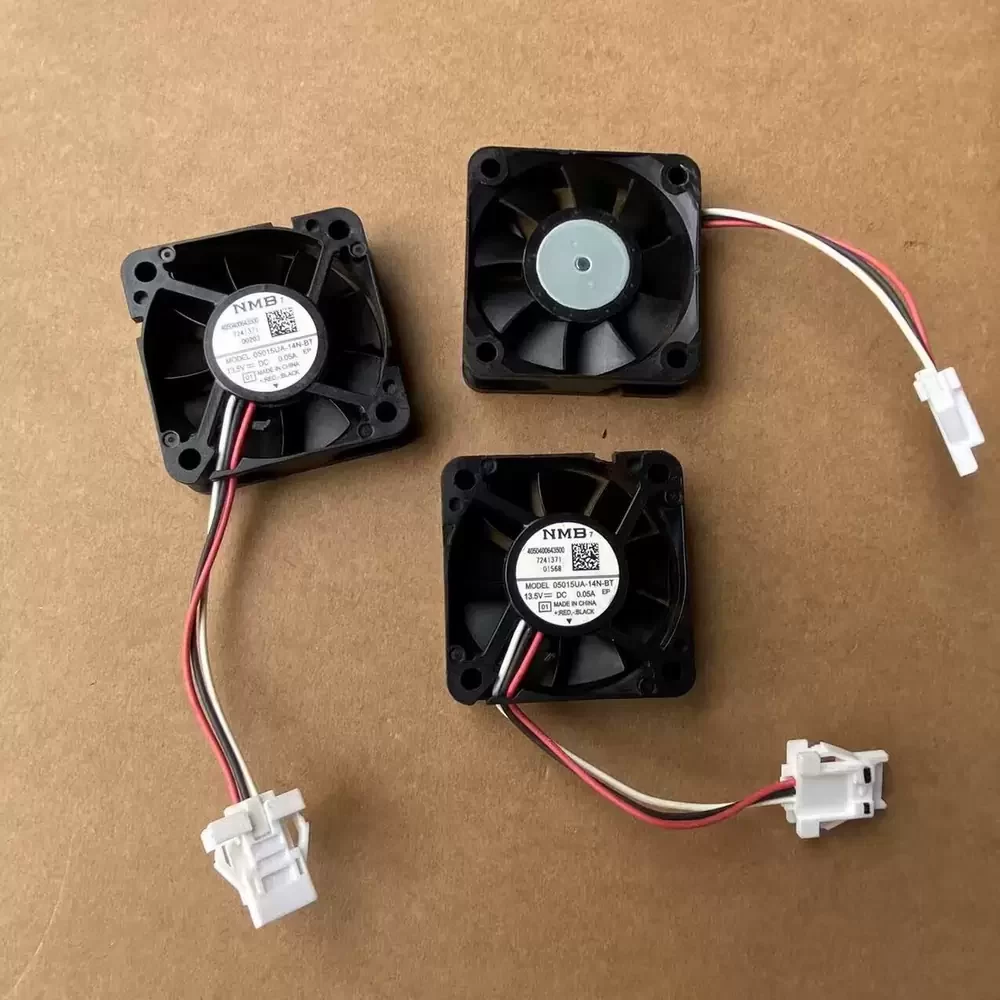

05015UA-14N-BT-01 NMB 13.5VDC 0.05A 50x50x15mm Cooling Fan

Description

The 05015UA-14N-BT-01 is a high-precision DC axial cooling fan engineered by NMB (MinebeaMitsumi) specifically for demanding thermal management in automotive and industrial electronics. Operating at a nominal 13.5 VDC with a low current draw of 0.05 A, this 50 mm unit delivers a balanced 9.5 CFM airflow while maintaining a quiet acoustic profile of 22 dBA. It features a robust dual ball bearing system designed for extended service life and a 3-wire configuration for tachometer output or speed monitoring. The frame and impeller are constructed from UL 94 V-0 rated thermoplastic PBT to ensure flame retardancy and structural integrity under continuous operation.

05015UA-14N-BT-01 Specifications
Model Number: 05015UA-14N-BT-01
Brand: NMB (MinebeaMitsumi)
Product Category: DC Axial Fan
Nominal Voltage: 13.5 VDC
Operating Voltage Range: 10.0 VDC to 15.0 VDC
Rated Current: 0.05 A
Input Power: 0.68 W
Rated Speed: 2500 RPM
Maximum Airflow: 9.5 CFM
Maximum Static Pressure: 18.5 Pa
Noise Level: 22 dBA
Bearing Type: Dual Ball Bearing
Dimensions: 50 x 50 x 15 mm
Frame Material: Plastic (PBT) UL 94 V-0
Impeller Material: Plastic (PBT) UL 94 V-0
Termination: 3-Wire Lead Wires
Sensor Type: Tachometer / Speed Sensor
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Mass: 25 g
Life Expectancy: 60,000 Hours at 40 °C

05015UA-14N-BT-01 Applications
Automotive LED headlight thermal regulation, compact power supply cooling, and telecommunications signal processing equipment. Direct integration into automotive lighting assemblies and small-scale industrial electronic enclosures.
