Description

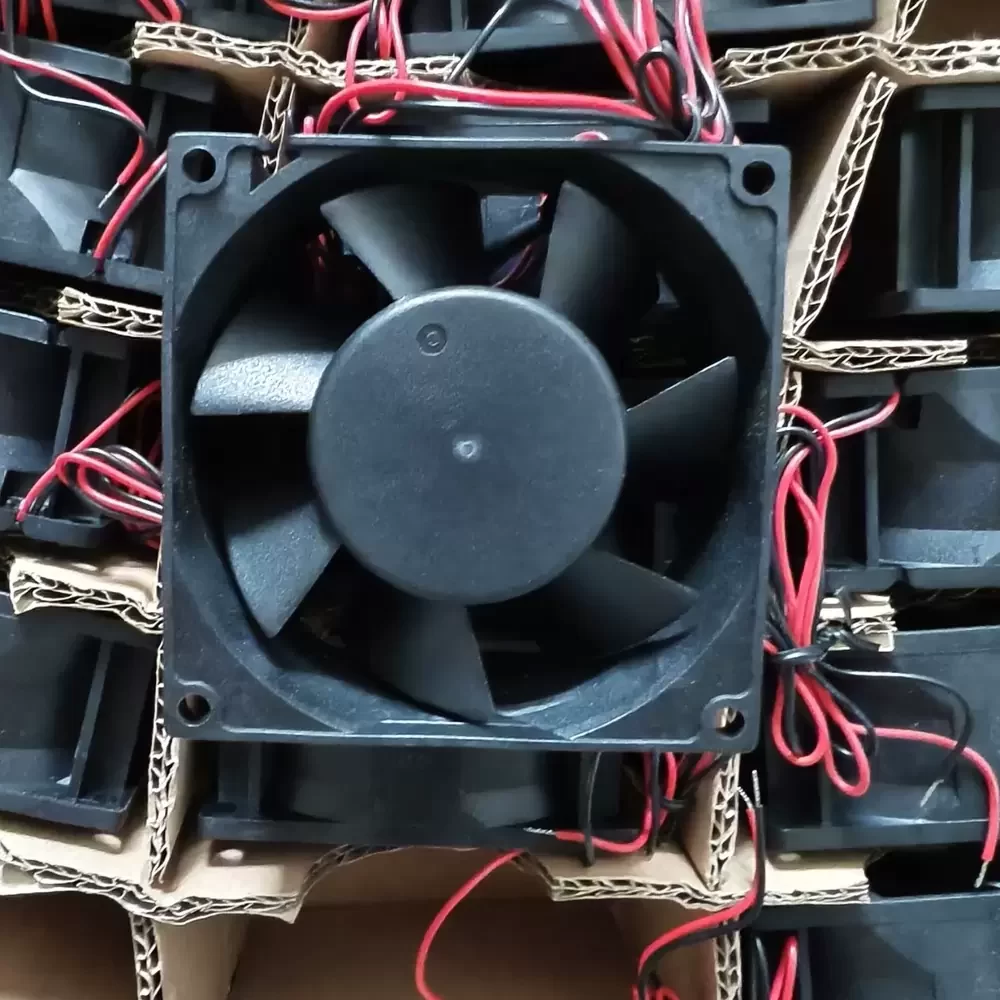

The AD0812VB-F71DS is a high-performance industrial axial fan engineered for extreme airflow requirements in compact 80 mm footprints. Operating at a nominal 12 VDC with a high current draw of 2.2 A, this unit delivers a maximum airflow of 110 CFM and a static pressure of 26.67 mmAq. It features a robust dual ball bearing system designed for continuous operation at 7000 RPM, ensuring long-term reliability in high-impedance environments.
AD0812VB-F71DS Specifications
Model Number: AD0812VB-F71DS
Brand: ADDA
Category: DC Axial Fan
Rated Voltage: 12 VDC
Operating Voltage Range: 10.8 to 13.2 VDC
Rated Current: 2.2 A
Rated Power: 26.4 W
Rated Speed: 7000 RPM
Maximum Airflow: 110 CFM (3.113 CMM)
Maximum Static Pressure: 1.050 InAq (26.67 mmAq)
Noise Level: 60.5 dB/A
Bearing Type: Dual Ball Bearing
Dimensions: 80 x 80 x 38 mm
Weight: 195 g
Frame Material: UL 94V-0 Glass Filled Polyester (PBT)
Impeller Material: UL 94V-0 Glass Filled Polyester (PBT)
Termination: 2-Wire Lead (UL 1007 AWG 24)
Operating Temperature: -10 to 70 °C
Storage Temperature: -40 to 70 °C
Motor Protection: IC Protected / Auto Restart
Safety Approvals: UL, CUL, TUV, CE
AD0812VB-F71DS Applications
High-density server chassis, industrial frequency converters, telecommunications power supplies, and automated control cabinets requiring high-pressure thermal management. Direct integration into high-load electronic cooling systems and heavy-duty inverter heat dissipation units.
