Description

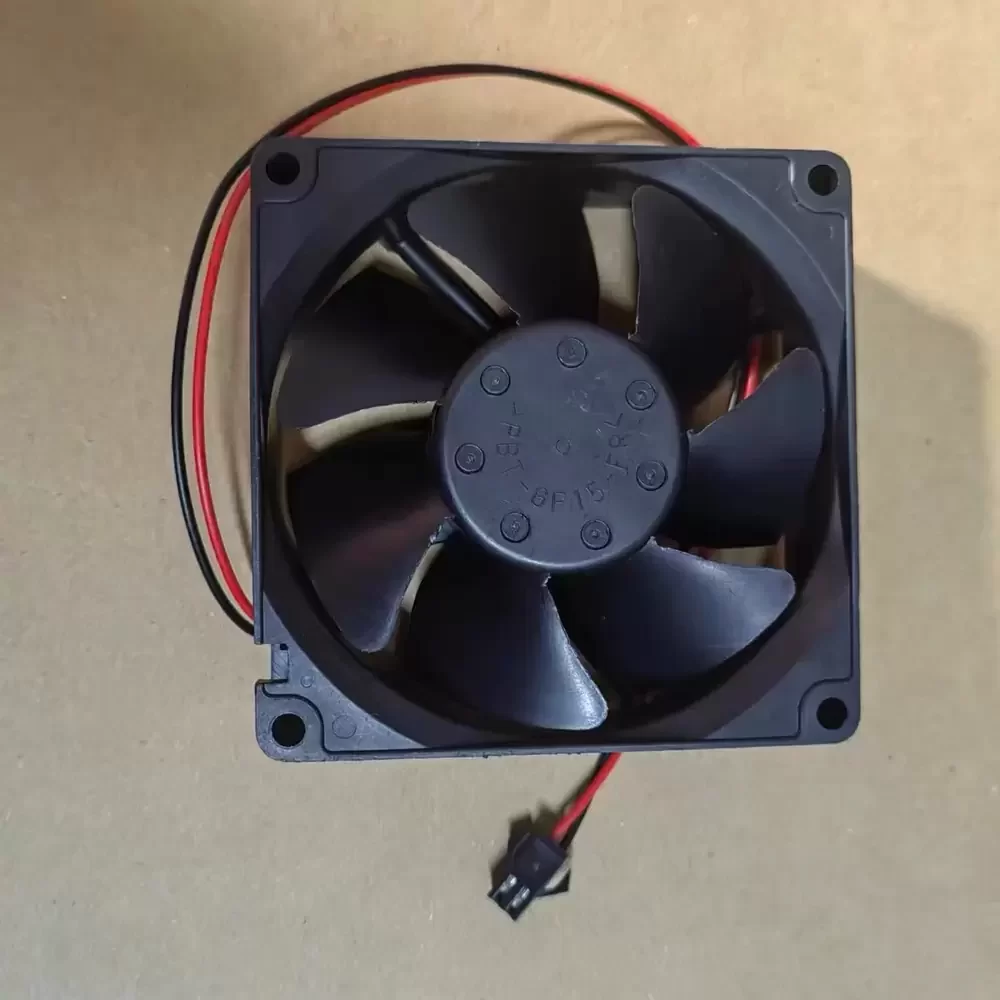

The 3110KL-05W-B50-D00 is a high-performance DC axial cooling fan engineered for industrial thermal management. Operating at a nominal 24VDC, this 80mm unit delivers a maximum airflow of 38.8CFM and a static pressure of 37.2Pa, ensuring efficient heat dissipation in high-density electronics. It features a dual ball bearing system for a 50,000-hour life expectancy at 25°C and is specifically utilized as the primary cooling component for ABB ACS510 and ACS550 series frequency converters.
3110KL-05W-B50-D00 Specifications
Model Number: 3110KL-05W-B50-D00
Brand: NMB-MAT (MinebeaMitsumi)
Product Category: DC Axial Fans
Frame Size: 80 x 80 x 25mm
Nominal Voltage: 24VDC
Operating Voltage Range: 10.0 to 27.6VDC
Rated Current: 0.15A
Input Power: 3.6W
Rated Speed: 3250 RPM
Maximum Air Flow: 38.8 CFM (1.1 m3/min)
Maximum Static Pressure: 0.15 In H2O (37.2 Pa)
Noise Level: 34 dB
Bearing Type: Dual Ball Bearing
Life Expectancy: 50,000 Hours (L10 at 25°C)
Termination: 2-Wire (Lead Wires)
Mass: 95g
Material Frame: Plastic (UL94V-0)
Material Impeller: Plastic (UL94V-0)
Operating Temperature: -10 to +70°C
Storage Temperature: -40 to +70°C
Insulation Resistance: 10M Ohm min. at 500VDC
Dielectric Strength: 700VAC for 1 minute
3110KL-05W-B50-D00 Applications
Mandatory thermal management for ABB ACS510 and ACS550 frequency converters, industrial switch-mode power supplies (SMPS), and high-density server rack enclosures.
