Description

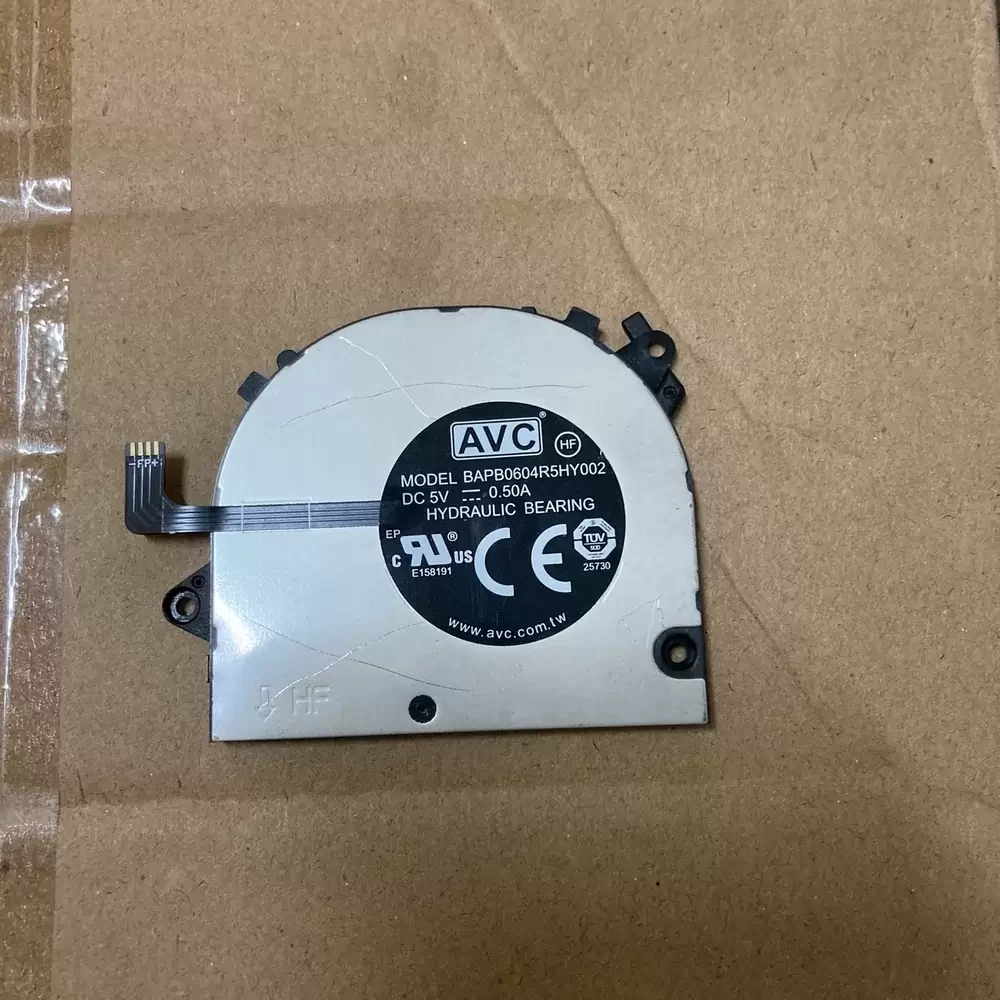

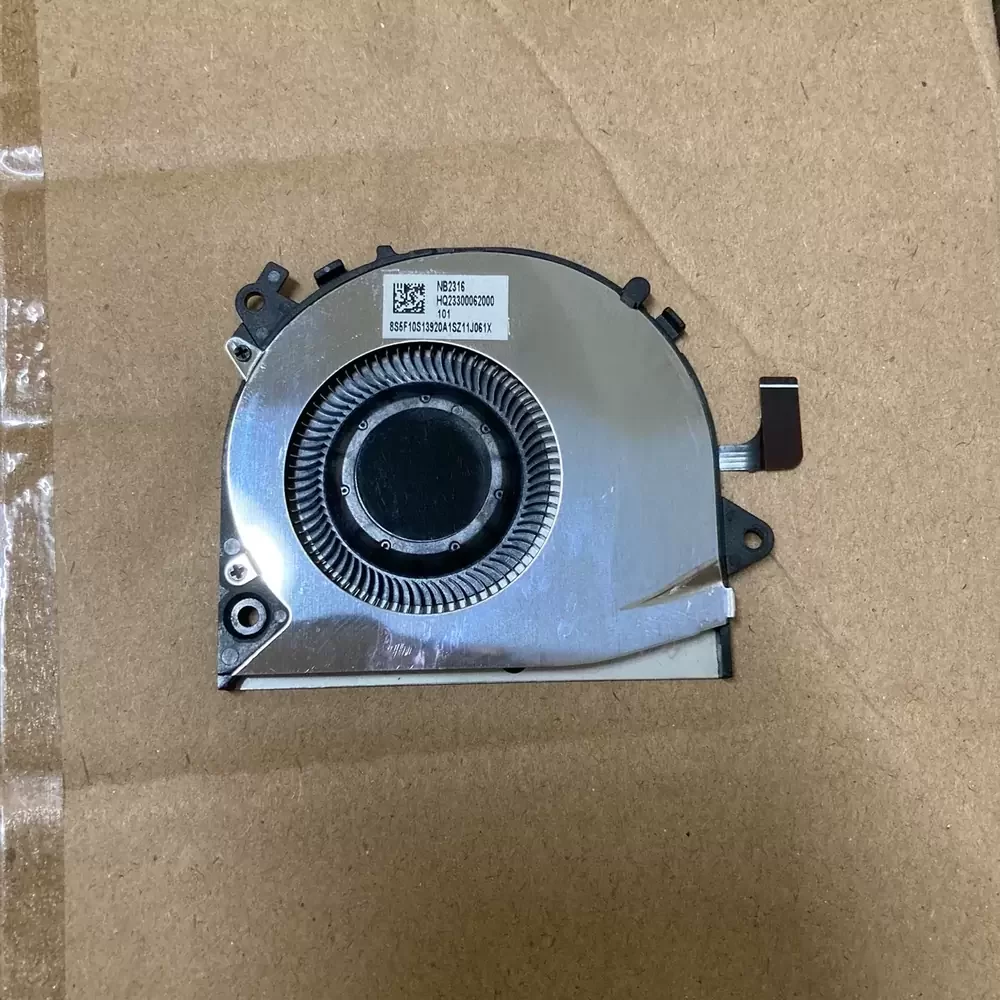

The AVC BAPB0604R5HY002 is a 5VDC 60mm Blower Fan optimized for thermal management in ultra-slim convertible computing architectures. By utilizing a high-density centrifugal impeller, this unit generates concentrated static pressure to overcome the airflow resistance inherent in tightly packed heat pipe fins. The fluid dynamic bearing system utilizes a pressurized lubricant film to eliminate mechanical contact during rotation, which prevents acoustic degradation and mechanical wear during 0.50A peak current cycles. Integrated PWM circuitry allows the system controller to modulate RPM based on real-time thermistor data, ensuring the 60mm 5VDC Blower Fan maintains optimal junction temperatures without unnecessary power draw. This BAPB0604R5HY002 Blower Fan effectively mitigates localized heat soak in mobile processors by maintaining a consistent 0.50A airflow velocity through restricted exhaust ports.
Model Number: BAPB0604R5HY002
Brand: AVC
Product Type: DC Centrifugal Blower Fan
Rated Voltage: 5VDC
Voltage Range: 4.5 – 5.5 VDC
Rated Current: 0.50A
Power: 2.5W
Rated Speed: Variable via PWM
Bearing Type: Fluid Dynamic Bearing (FDB)
Dimensions: 60mm x 60mm x 5mm
Weight: 18g
Life Expectancy: 40,000 Hours at 40C
Speed Control: PWM (Pulse Width Modulation)
Termination: 4-Pin / 4-Wire Connector
Housing Material: UL94V-0 Reinforced Plastic / Metal Shield
Blade Material: UL94V-0 PBT
Operating Temperature: -10C to +70C
Storage Temperature: -40C to +75C
Protection Features: Locked Rotor Protection, Auto-Restart
Certifications: CE, RoHS Compliant
Applications & Industry Use Cases
1. Lenovo Yoga Duet 7: Direct replacement fan for 13IML05 models to restore factory cooling efficiency.
2. Ultra-Thin Convertibles: Ideal for 2-in-1 laptops requiring low-profile 5mm centrifugal cooling solutions.
3. Tablet Thermal Repair: Used as a BAPB0604R5HY002 replacement fan to fix thermal throttling issues.
4. Mobile Edge Computing: Provides penetrating airflow for compact ARM-based processing modules.
5. Portable Medical Tablets: Ensures silent, reliable heat dissipation in handheld diagnostic equipment.
6. Industrial HMI Panels: Prevents heat soak in slim-form factor touch interface controllers.
