Description

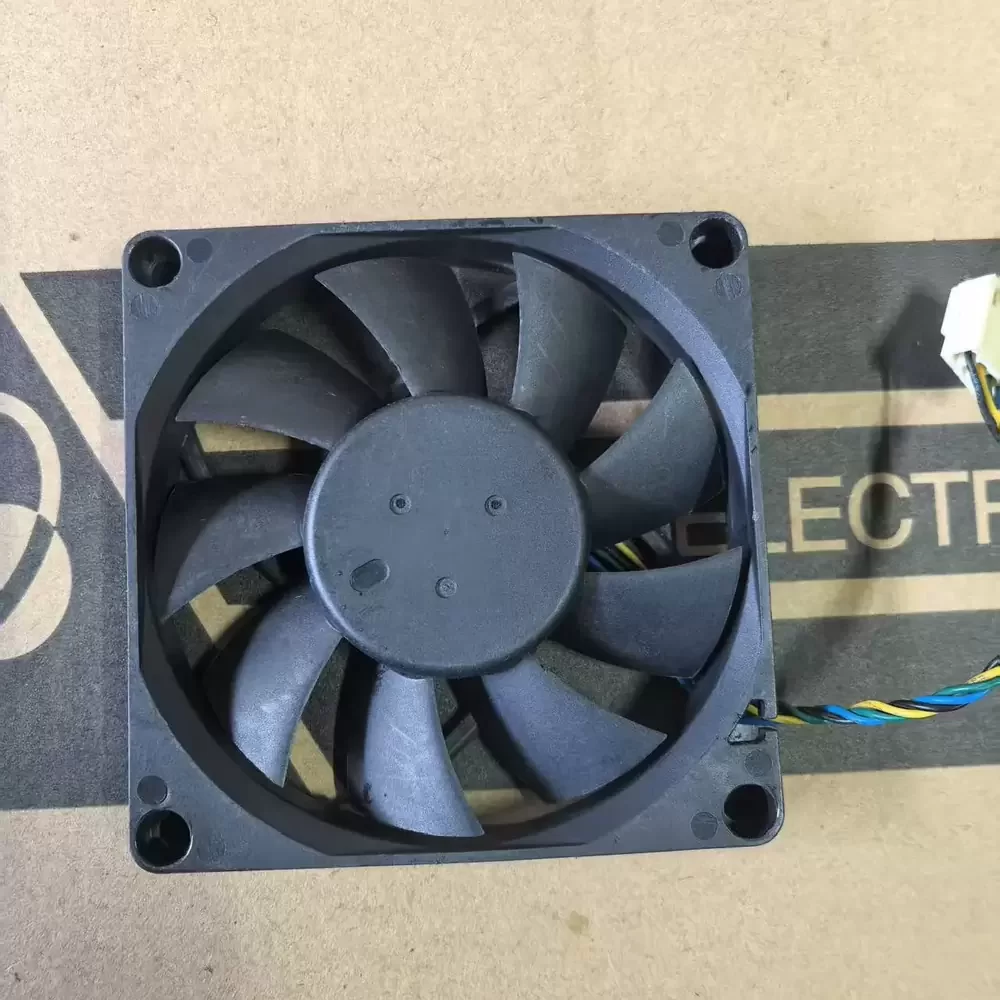

The EFB0812HHB-5N74 is a high-performance DC brushless axial fan engineered for dense industrial and server environments requiring a slim 15 mm profile. Operating at a rated 12 VDC with a 0.40 A current draw, this unit delivers a robust 42.37 CFM airflow and 3.42 mmH2O static pressure. It features a dual ball bearing system for a 70,000-hour service life at 40 °C and utilizes a 4-pin PWM interface for precise speed modulation up to 4500 RPM. The flame-retardant UL 94V-0 plastic construction ensures safety in high-heat applications.
EFB0812HHB-5N74 Specifications
Model Number: EFB0812HHB-5N74
Brand: Delta Electronics
Category: DC Axial Fan
Rated Voltage: 12 VDC
Operating Voltage Range: 5.0 to 13.8 VDC
Rated Current: 0.40 A
Rated Input Power: 4.8 W
Rated Speed: 4500 RPM
Maximum Air Flow: 42.37 CFM (1.20 m³/min)
Maximum Static Pressure: 3.42 mmH2O (0.134 inH2O)
Noise Level: 37.0 dB(A)
Bearing Type: Dual Ball Bearing
Dimensions: 80 x 80 x 15 mm
Weight: 67 g
Power Connection: 4-Pin PWM
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Operating Temperature: -10 to 70 °C
Storage Temperature: -40 to 70 °C
Life Expectancy: 70,000 Hours at 40 °C
Safety Approvals: RoHS Compliant, UL, CE, TUV
EFB0812HHB-5N74 Applications
High-density server rack cooling, industrial control cabinet ventilation, and compact power supply thermal management. Integrated into network switches, telecommunications hardware, and automated machinery requiring slim-profile axial airflow solutions.
