Description

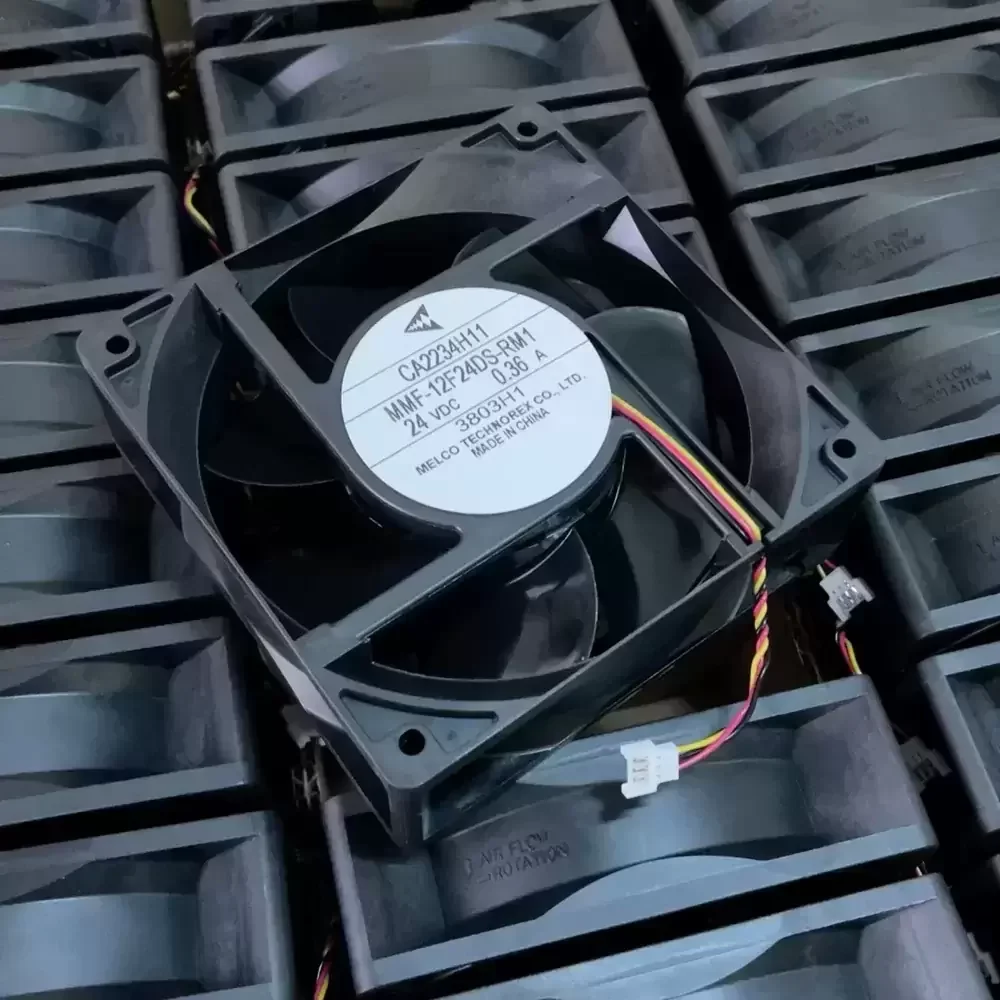

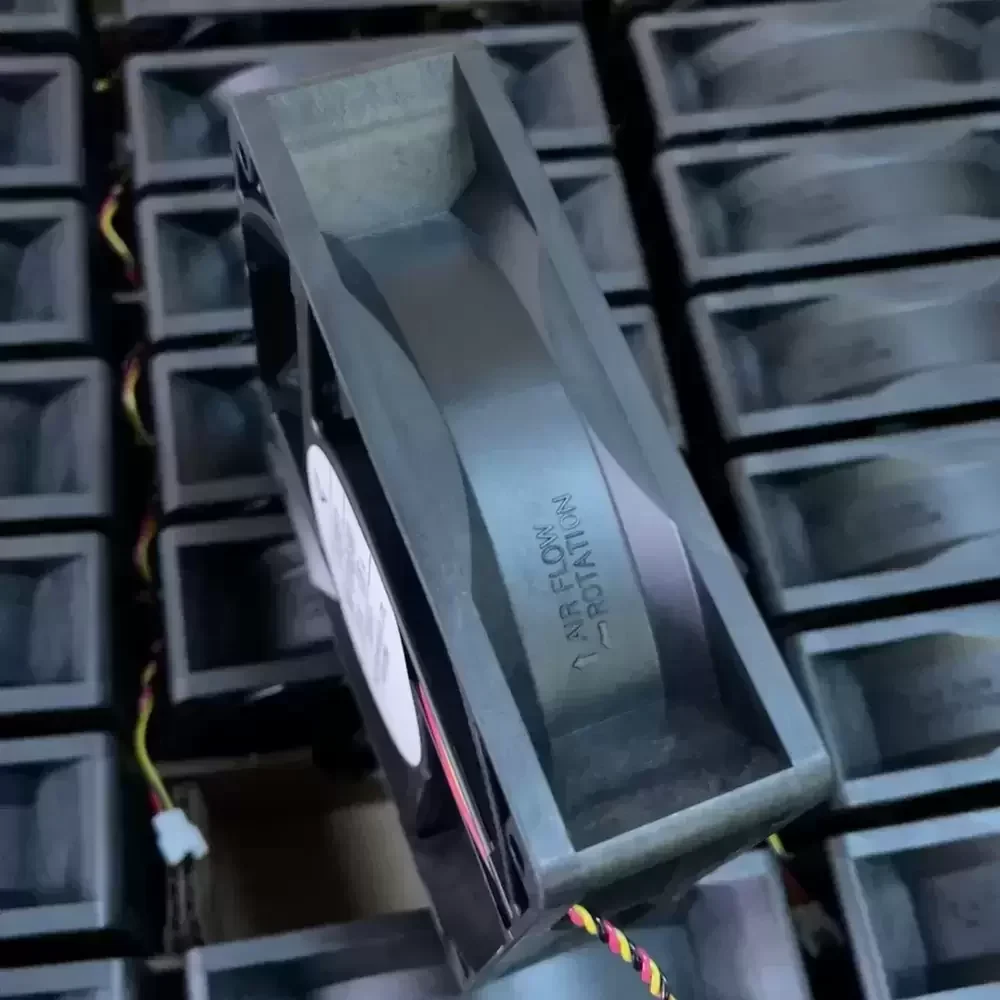

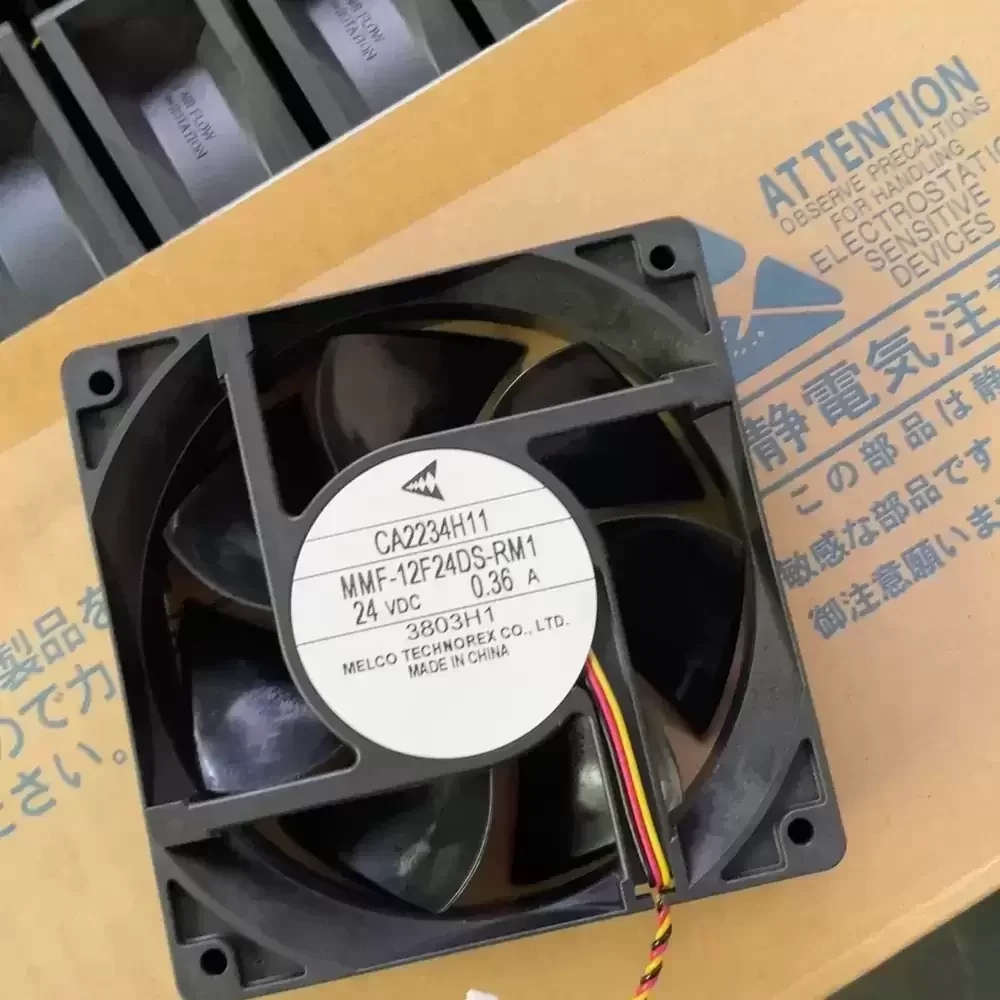

The Mitsubishi MMF-12F24DS-RM1 is a precision-engineered Axial Fan designed for rigorous thermal management in industrial inverter systems and power electronics. Utilizing advanced DC motor technology, this unit ensures optimal airflow efficiency while maintaining a compact footprint suitable for high-density integration. The aerodynamic blade design minimizes turbulence, thereby reducing acoustic noise and enhancing static pressure capabilities essential for overcoming resistance in electronic enclosures. Constructed with robust materials to withstand thermal stress, the fan features a durable bearing architecture that significantly lowers thermal impedance and extends operational service life. Its structural rigidity and precise balancing make it an ideal solution for critical cooling applications requiring consistent performance under continuous load.
Model Number: MMF-12F24DS-RM1
Brand: Mitsubishi Electric
Product Type: Axial Cooling Fan
Rated Voltage: 24 VDC
Voltage Range: 20.4 – 27.6 VDC
Rated Current: 0.36 A
Power Input: 8.64 W
Rated Speed: 3250 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 105.0 CFM (178.4 m³/h / 2.97 m³/min)
Max. Static Pressure: 8.5 mmH₂O (83.3 Pa / 0.33 inH₂O)
Dimensions: 120 x 120 x 38 mm
Weight: 260 g
Life Expectancy: 60,000 Hours at 40°C
Noise Level: 44 dBA
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Termination: 3-Wire Leads with Connector
Operating Temperature: -10°C to +60°C
Storage Temperature: -30°C to +70°C
Ingress Protection: IP20
Safety Certifications: UL, cUL, TUV
Sensor Output: Locked Rotor / Rotation Monitor
The MMF-12F24DS-RM1 is specifically engineered for critical thermal regulation within industrial automation environments, particularly serving as a primary cooling component for variable frequency drives and heavy-duty power inverters. Its robust design allows for seamless integration into server racks, CNC machinery control panels, and telecommunications infrastructure where sustained airflow is mandatory to prevent thermal throttling. Additionally, the MMF-12F24DS-RM1 is frequently utilized in medical instrumentation and power supply units, ensuring reliable heat dissipation in enclosed spaces subject to continuous operation.
