Description

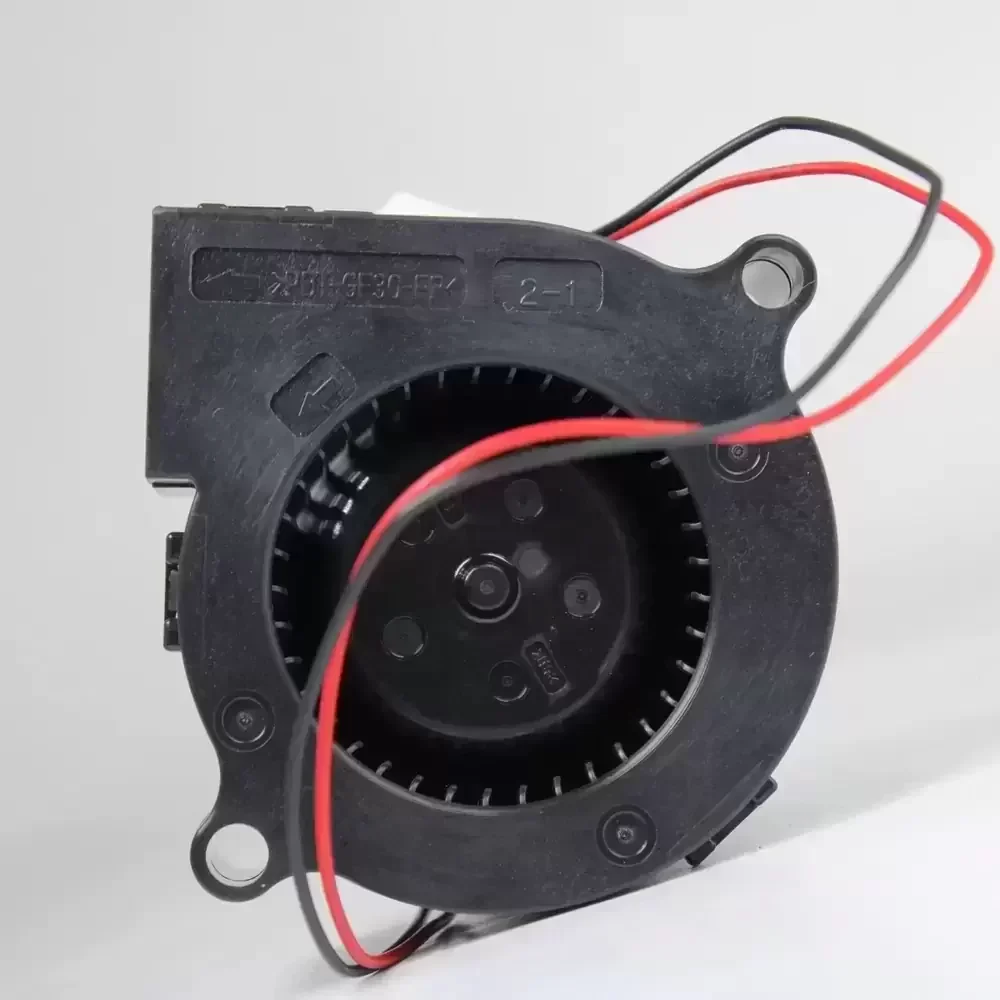

The NMB 05125GS-12N-BA-5 is a precision-engineered centrifugal blower designed for high-impedance thermal management applications. Leveraging MinebeaMitsumi’s proprietary dual ball bearing technology, this unit ensures exceptional rotational stability and extended operational longevity under continuous load. The aerodynamic volute design optimizes static pressure delivery, making it ideal for overcoming significant system resistance in compact enclosures. Constructed with high-grade thermoplastic, the housing maintains structural rigidity while minimizing acoustic resonance, providing a reliable cooling solution for sensitive industrial electronics.
Model Number: 05125GS-12N-BA-5
Brand: NMB (MinebeaMitsumi)
Product Type: Centrifugal Blower
Rated Voltage: 12 VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.31 A
Input Power: 3.72 W
Rated Speed: 5500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 5.3 CFM (9.0 m³/h / 0.15 m³/min)
Max. Static Pressure: 14.5 mmH₂O (142 Pa / 0.57 inH₂O)
Dimensions: 51 x 51 x 25 mm
Weight: 35 g
Life Expectancy: 50,000 Hours @ 40°C
Noise Level: 36 dB(A)
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Termination: Lead Wires
Ingress Protection: IP40
Safety Certifications: UL, CSA, TUV, CE
This centrifugal blower is specifically engineered for applications requiring directed airflow against high back pressure. The 05125GS-12N-BA-5 is frequently utilized in multimedia projectors, compact server rack cooling modules, and industrial automation equipment where space is constrained. Additionally, the 05125GS-12N-BA-5 serves as a critical component in medical instrumentation and telecommunications hardware, ensuring thermal stability for power-dense components.
