Description

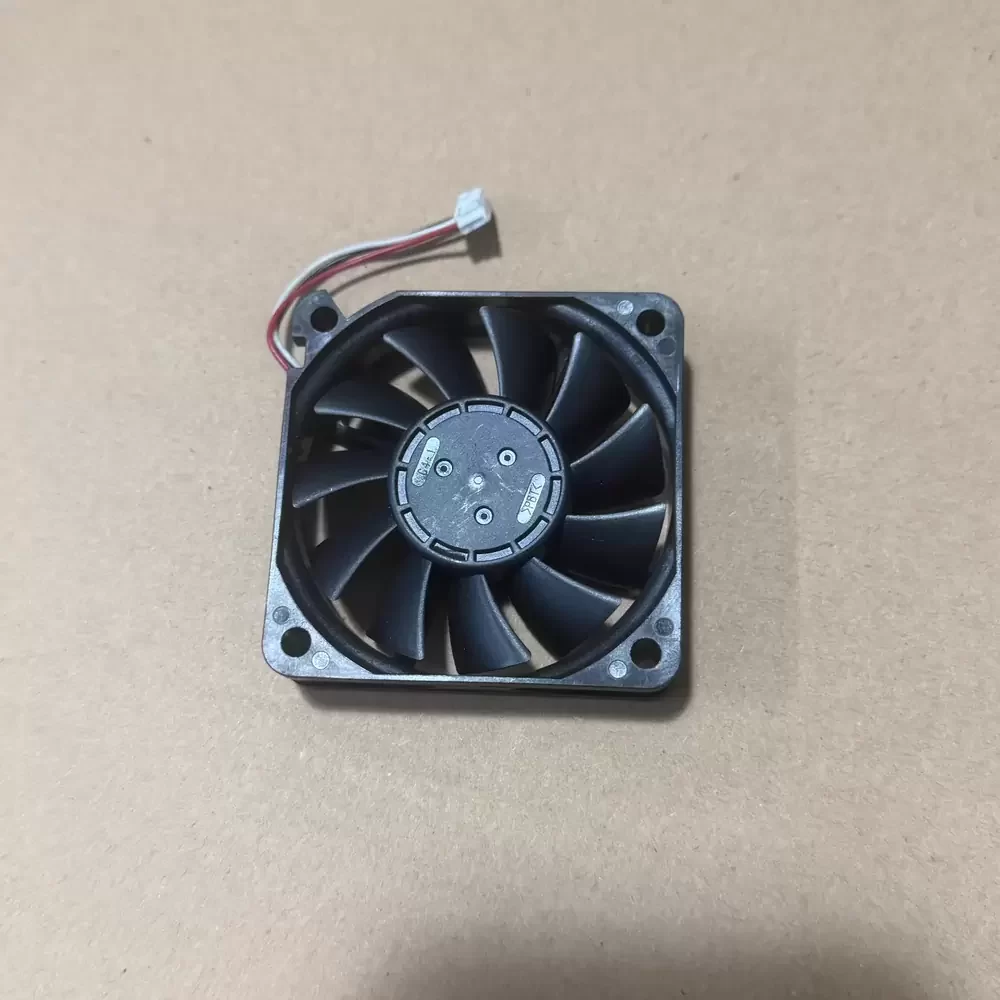

The NMB 06015SS-24P-AL-02 is a precision-engineered DC Axial Fan designed for high-reliability thermal management in industrial and computing environments. Featuring MinebeaMitsumi’s advanced motor technology, this unit delivers exceptional airflow efficiency while maintaining structural rigidity under continuous operation. The aerodynamic impeller design is optimized to reduce turbulence and lower thermal impedance within dense electronic enclosures. Engineered for longevity, the internal bearing architecture ensures stable rotation and minimal friction, making it a robust solution for critical cooling applications requiring consistent performance at 24VDC.
Model Number: 06015SS-24P-AL-02
Brand: NMB (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Operating Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.17 A
Input Power: 4.08 W
Dimensions: 60 x 60 x 15 mm
Bearing Type: Precision Ball Bearing
Termination: 3-Wire with Connector
Sensor Type: Tachometer / Speed Signal
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Mounting Orientation: Any
Ingress Protection: IP20
Operating Temperature: -10°C to +70°C
Application: Server / Industrial / Telecom
Condition: Original New
The 06015SS-24P-AL-02 is widely utilized in compact electronic assemblies such as 1U server chassis, telecommunications switching equipment, and industrial power supply units. Due to its slim 15mm profile, the 06015SS-24P-AL-02 is particularly effective in space-constrained environments where efficient heat dissipation is critical for component longevity and system stability.
Updated:
Additional information
| Shipping Weight | 1 kg |
|---|
