Description

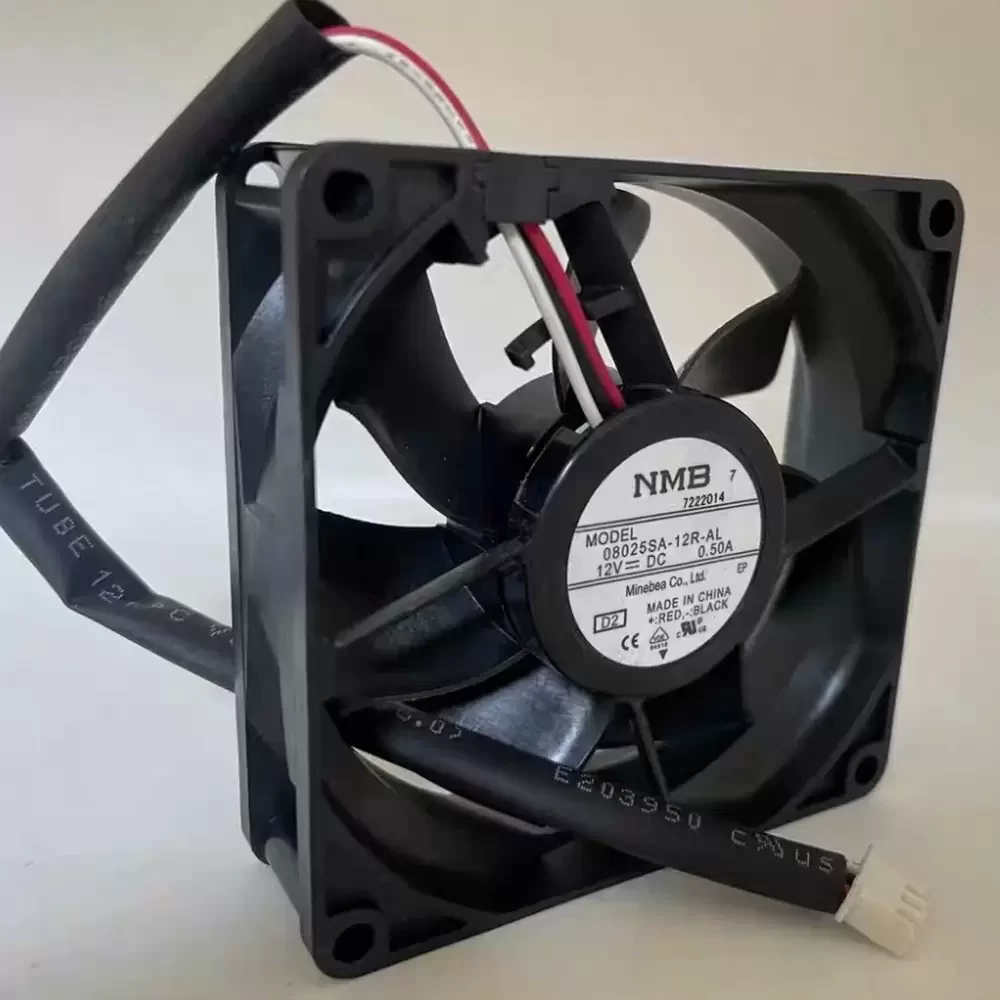

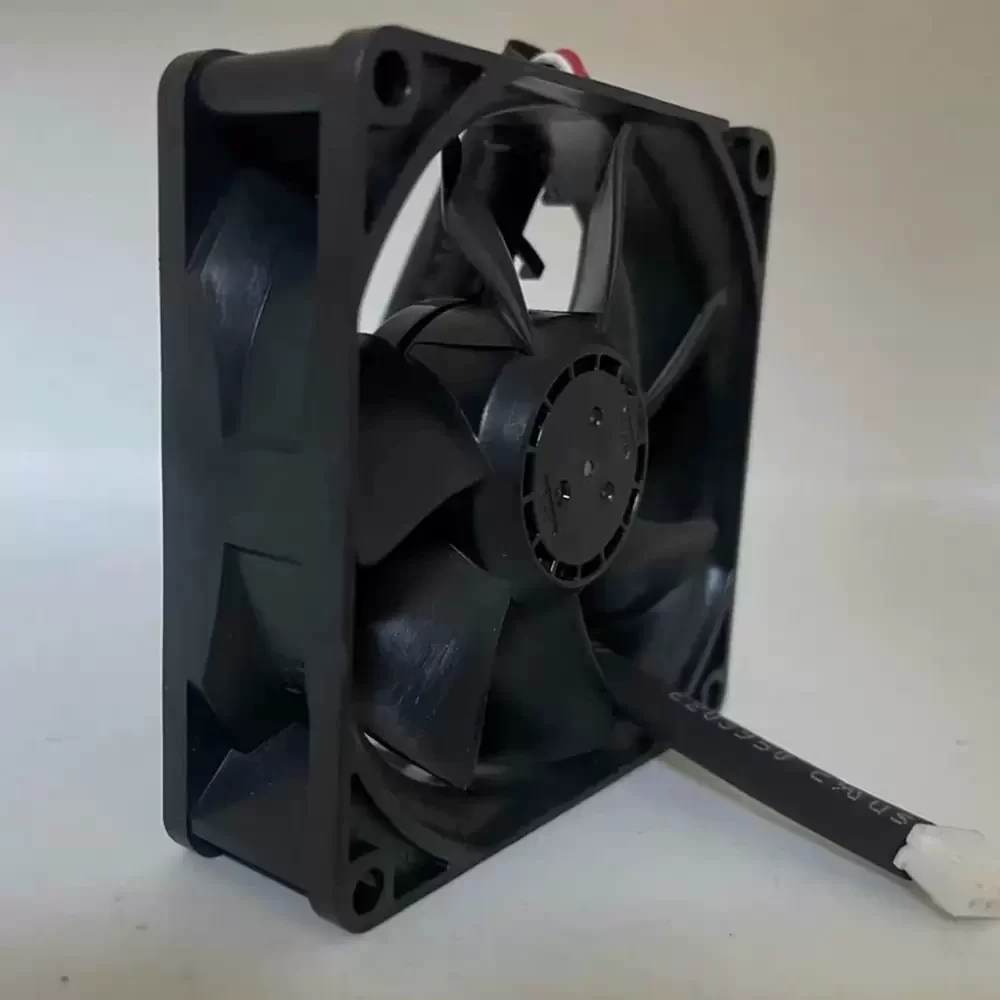

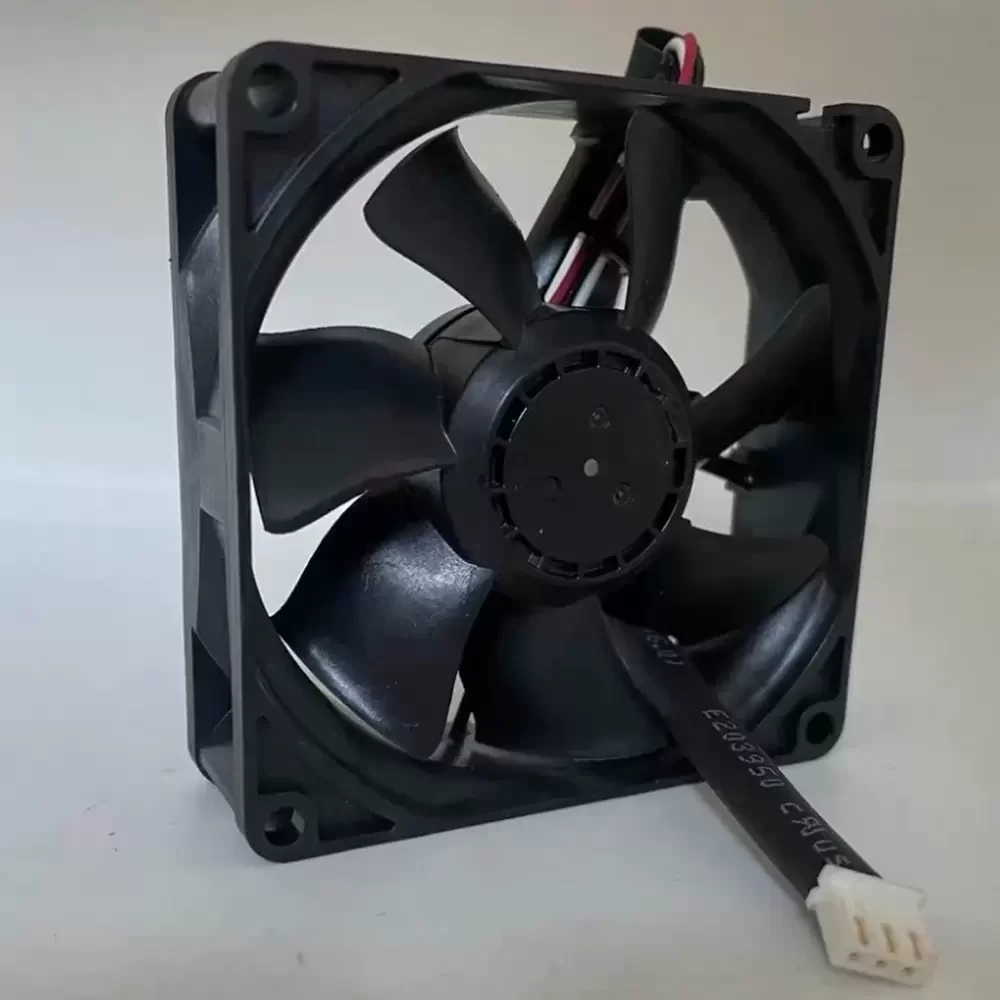

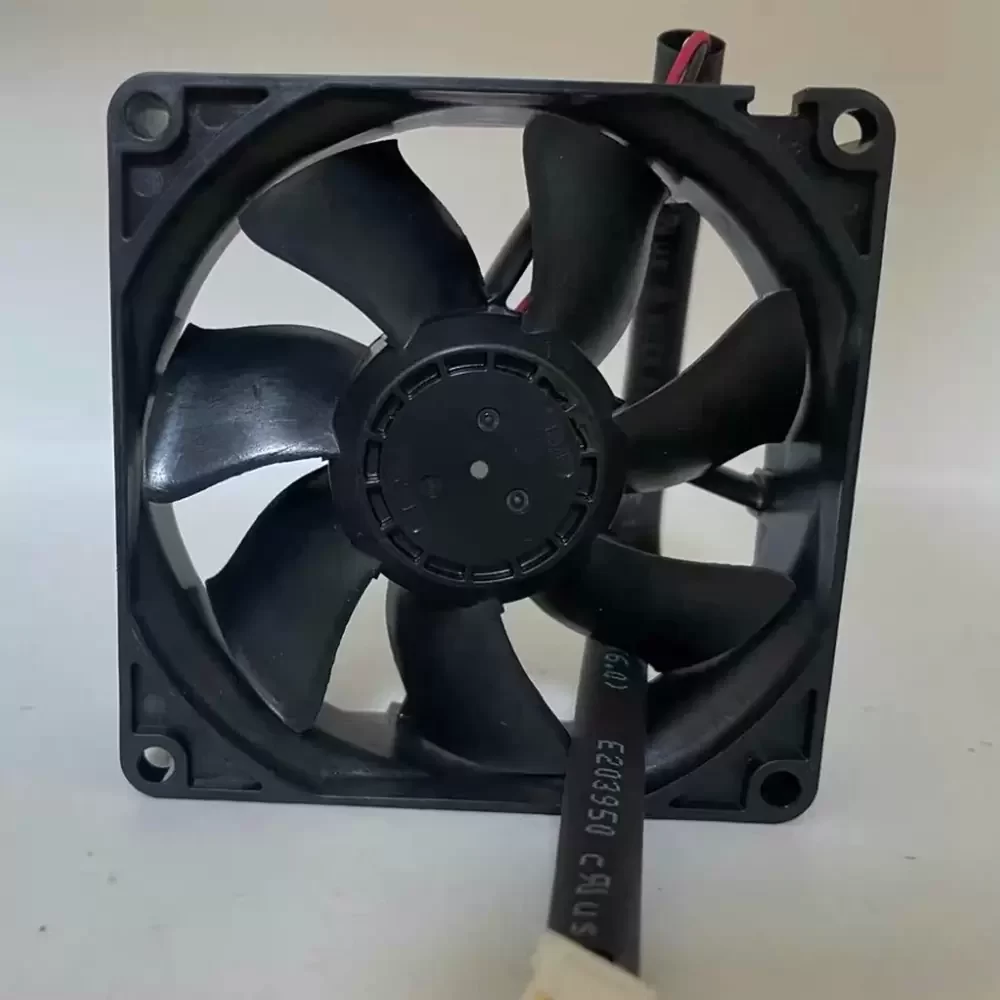

The NMB 08025SA-12R-AL-D2 is a DC Axial Fan engineered for demanding thermal management applications. Utilizing a sophisticated brushless DC motor and a precision dual ball bearing architecture, this unit ensures exceptional structural rigidity and minimized thermal impedance during continuous operation. Its aerodynamic impeller design is optimized for high-pressure airflow delivery while maintaining acoustic stability. The 08025SA-12R-AL-D2 incorporates advanced electronic commutation to provide reliable performance in environments requiring consistent heat dissipation and long-term mechanical durability.
Model Number: 08025SA-12R-AL-D2
Brand: NMB (MinebeaMitsumi)
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 6.0 – 13.8 VDC
Rated Current: 0.50A
Power: 6.0W
Rated Speed: 4500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 52.9 CFM (1.50 m³/min)
Max. Static Pressure: 78.4 Pa (0.31 inH2O)
Dimensions: 80x80x25mm
Weight: 95g
Life Expectancy: 70,000 Hours
Speed Control: Tachometer (FG Signal)
Termination: 3-Lead Wires
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Protection: Locked Rotor Protection, Reverse Polarity Protection
The NMB 08025SA-12R-AL-D2 is ideally suited for integration into high-density server enclosures and telecommunications infrastructure where reliable active cooling is critical. Its robust construction makes the 08025SA-12R-AL-D2 a preferred choice for industrial power supplies, CNC control cabinets, and medical diagnostic equipment. The fan’s precise airflow characteristics ensure optimal component temperatures in network switches and workstation chassis.
