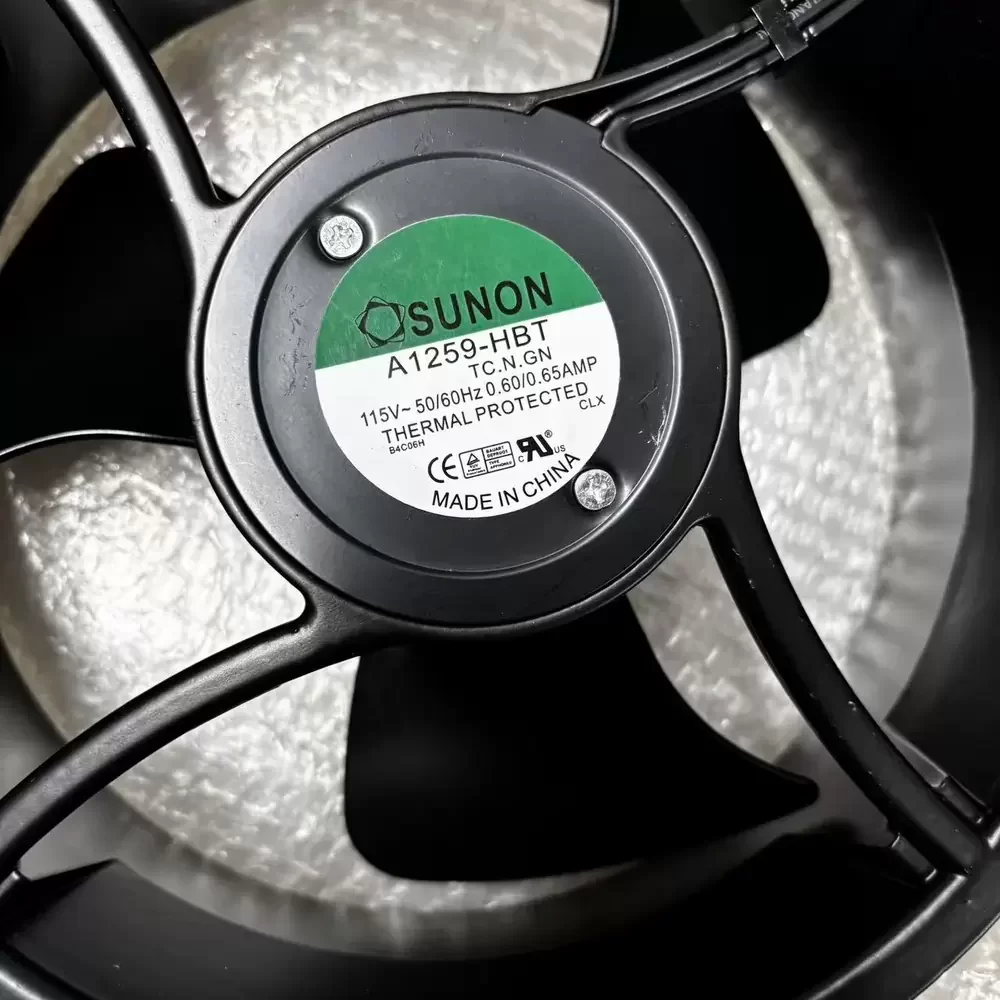

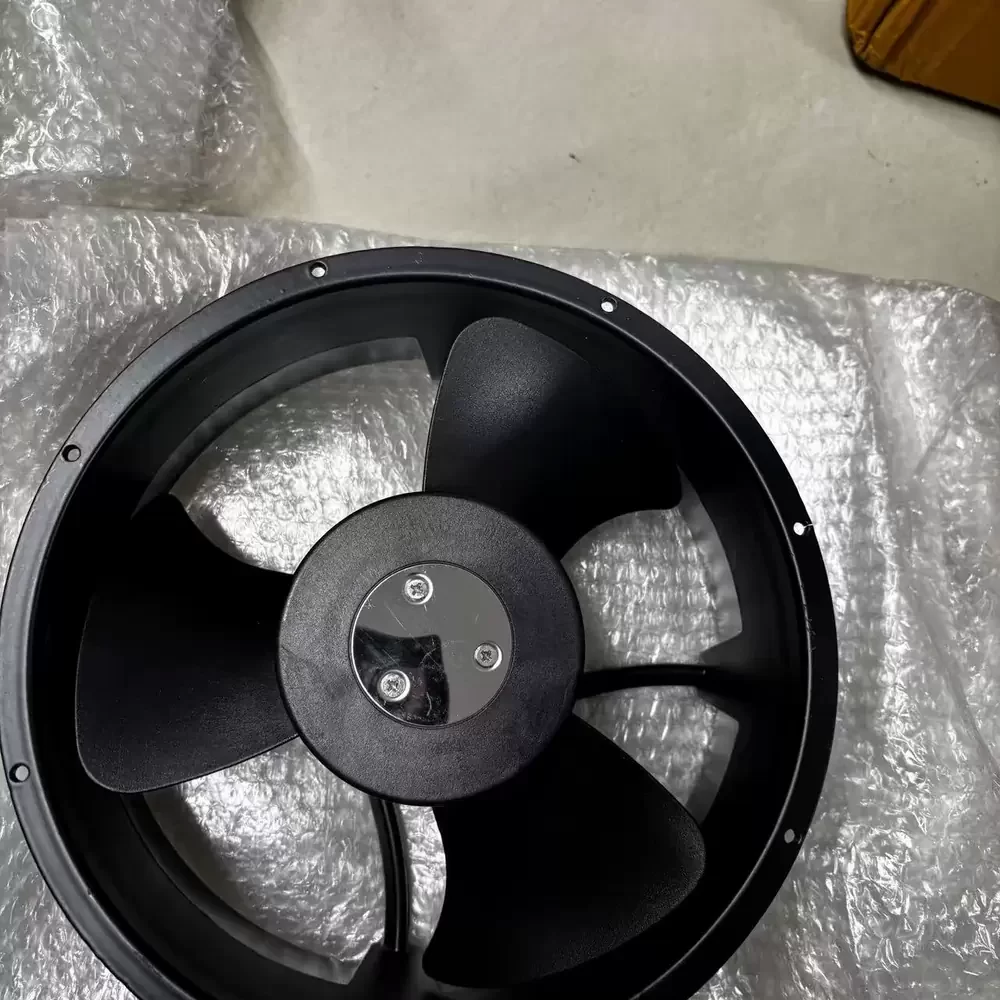

A1259-HBT.TC.N.GN Sunon 115V 254x89mm AC Axial Fan

Description

The Sunon A1259-HBT.TC.N.GN is a robust AC Axial Fan engineered for high-capacity industrial cooling applications. Utilizing advanced motor technology, this unit minimizes thermal impedance while maintaining exceptional structural rigidity through its die-cast aluminum housing. The design incorporates a precision ball bearing system to ensure longevity and stable operation under continuous loads. Featuring integrated thermal cutout protection, the fan safeguards against overheating, making it a reliable solution for critical thermal management systems requiring consistent airflow and durability.

Model Number: A1259-HBT.TC.N.GN
Brand: Sunon
Product Type: AC Axial Fan
Rated Voltage: 115 VAC
Frequency: 50/60 Hz
Voltage Range: 85 – 125 VAC
Rated Current: 0.60 / 0.65 A
Input Power: 60 / 75 W
Rated Speed: 2600 / 2900 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 850 CFM (1444 m³/h)
Max. Static Pressure: 0.76 / 0.68 inH₂O (189 / 169 Pa)
Dimensions: 254mm x 89mm (Round Frame)
Weight: 2.36 kg
Life Expectancy: 50,000 Hours at 25°C
Noise Level: 66 / 68 dB(A)
Frame Material: Aluminum Die-Cast
Blade Material: Thermoplastic PBT (UL94V-0)

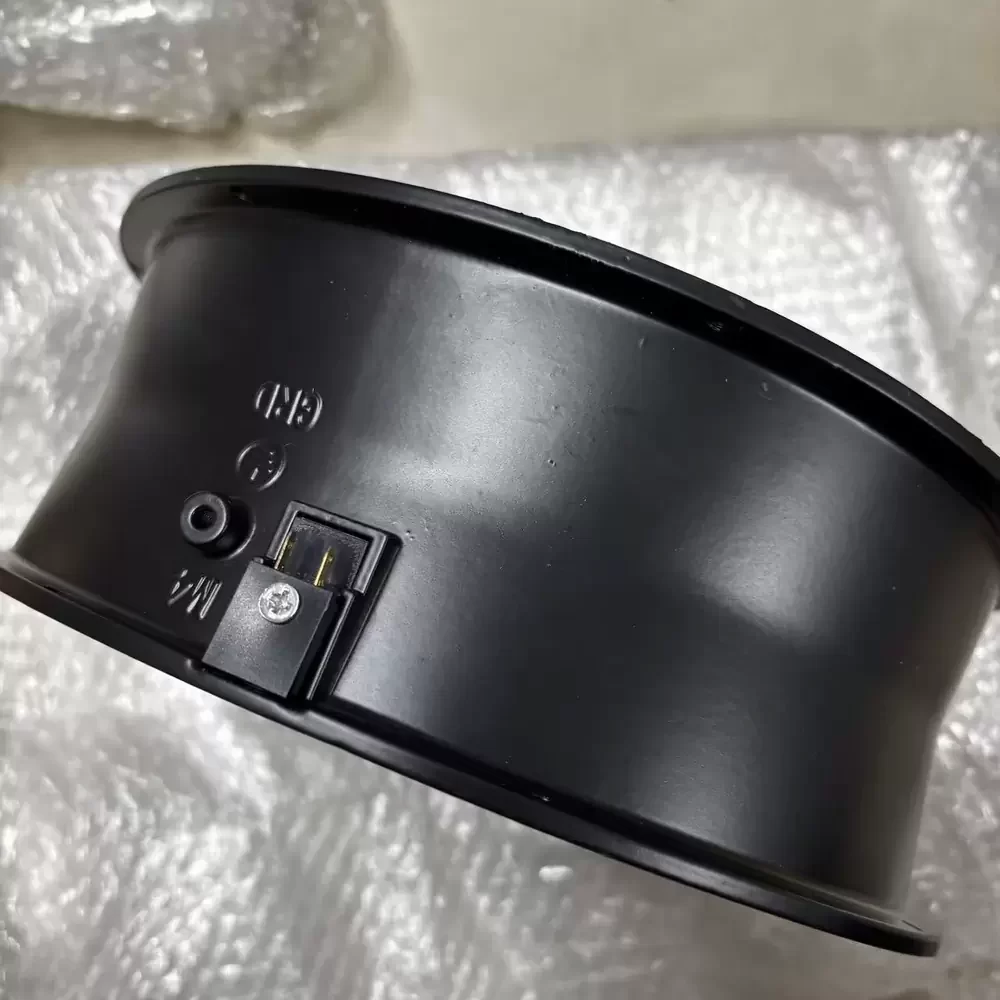

Termination: Terminal Type
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP55 (Optional)
Insulation Class: Class B
Motor Protection: Thermal Cutout (TC), Impedance Protected
Safety Certifications: UL, CUR, TUV, CE
Compliance: RoHS

This high-performance cooling solution is specifically designed for demanding industrial environments such as large-scale server racks, telecommunications cabinets, and heavy-duty machinery. The A1259-HBT.TC.N.GN excels in applications requiring substantial airflow to dissipate heat from power electronics and automation control panels. Additionally, the A1259-HBT.TC.N.GN is frequently utilized in HVAC systems and industrial heat exchangers where reliability and thermal protection are paramount for continuous operation.
