Description

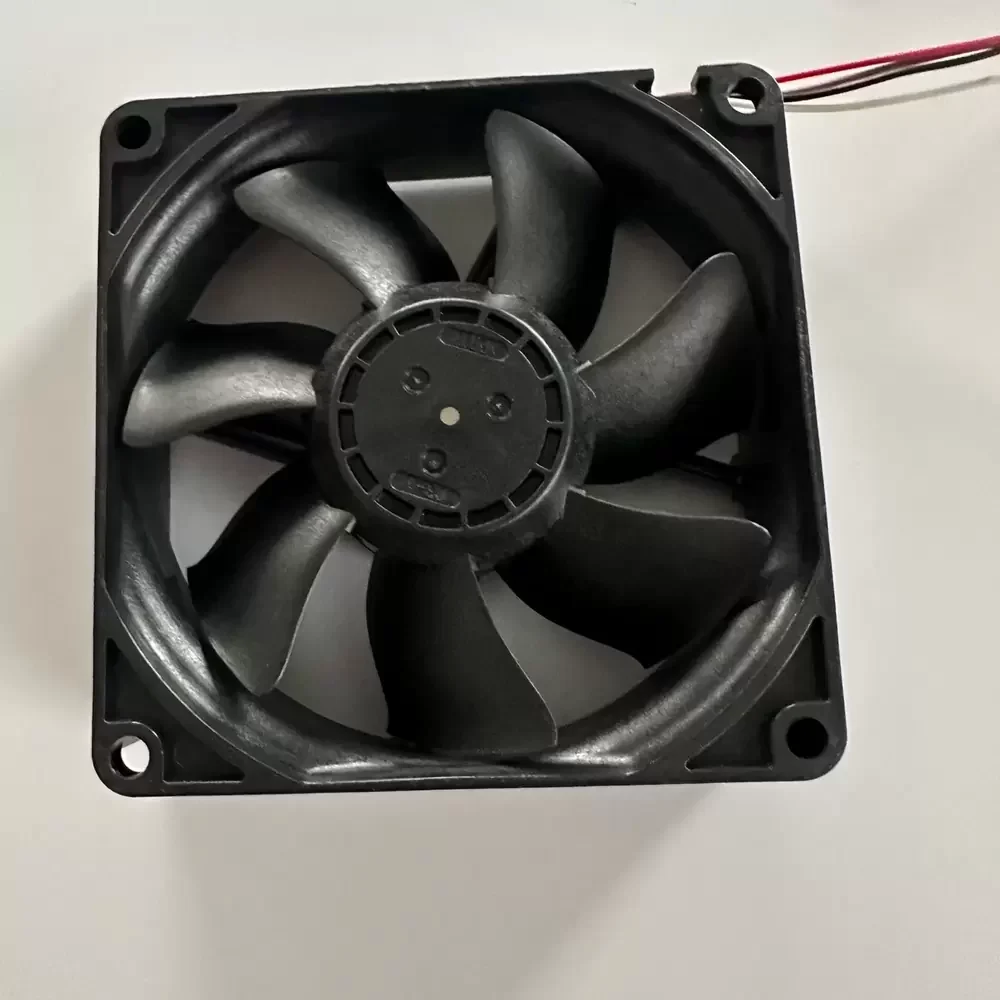

The NMB 08025SS-12N-AU-D3 is a precision-engineered DC Axial Fan designed for critical thermal management in high-density electronic environments. Leveraging NMB’s proprietary bearing architecture and advanced motor technology, this unit ensures exceptional rotational stability and longevity under continuous operation. The aerodynamic impeller profile is optimized to maximize airflow while maintaining substantial static pressure, effectively overcoming thermal impedance in restrictive chassis and heatsink assemblies. Constructed with high-grade thermoplastic for structural rigidity, the fan integrates 4-wire PWM control, allowing for dynamic speed modulation and precise acoustic management in sensitive industrial applications.
Model Number: 08025SS-12N-AU-D3
Brand: NMB (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 12V DC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.21 A
Power Consumption: 2.52 W
Rated Speed: 3400 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 42.0 CFM (71.36 m³/h / 1.19 m³/min)
Max. Static Pressure: 4.2 mmH₂O (41.19 Pa / 0.165 inH₂O)
Dimensions: 80 x 80 x 25 mm
Weight: 95 g
Life Expectancy: 70,000 Hours at 40°C
Termination: 4-Wire (PWM Speed Control / Tachometer Output)
Wire Assignment: Red (+), Black (-), Yellow (Sensor), Blue (PWM)
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Noise Level: 34.0 dB(A)
Ingress Protection: IP20
Safety Certifications: UL, CSA, TUV, CE
The 08025SS-12N-AU-D3 is widely utilized in mission-critical hardware such as server cooling modules, network switchgear, and industrial automation control panels. Its precise PWM regulation makes the 08025SS-12N-AU-D3 particularly suitable for medical instrumentation and CNC machinery where balancing thermal dissipation with acoustic performance is essential for operational standards.
