Description

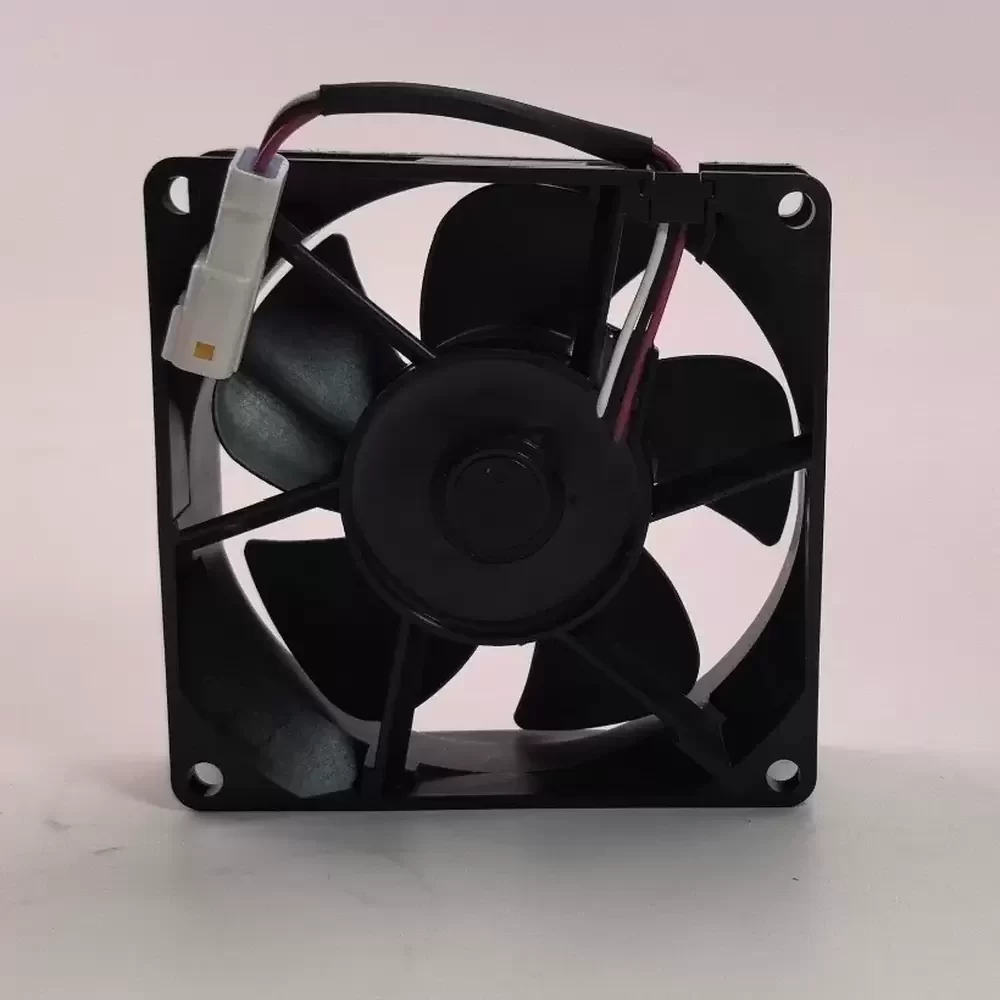

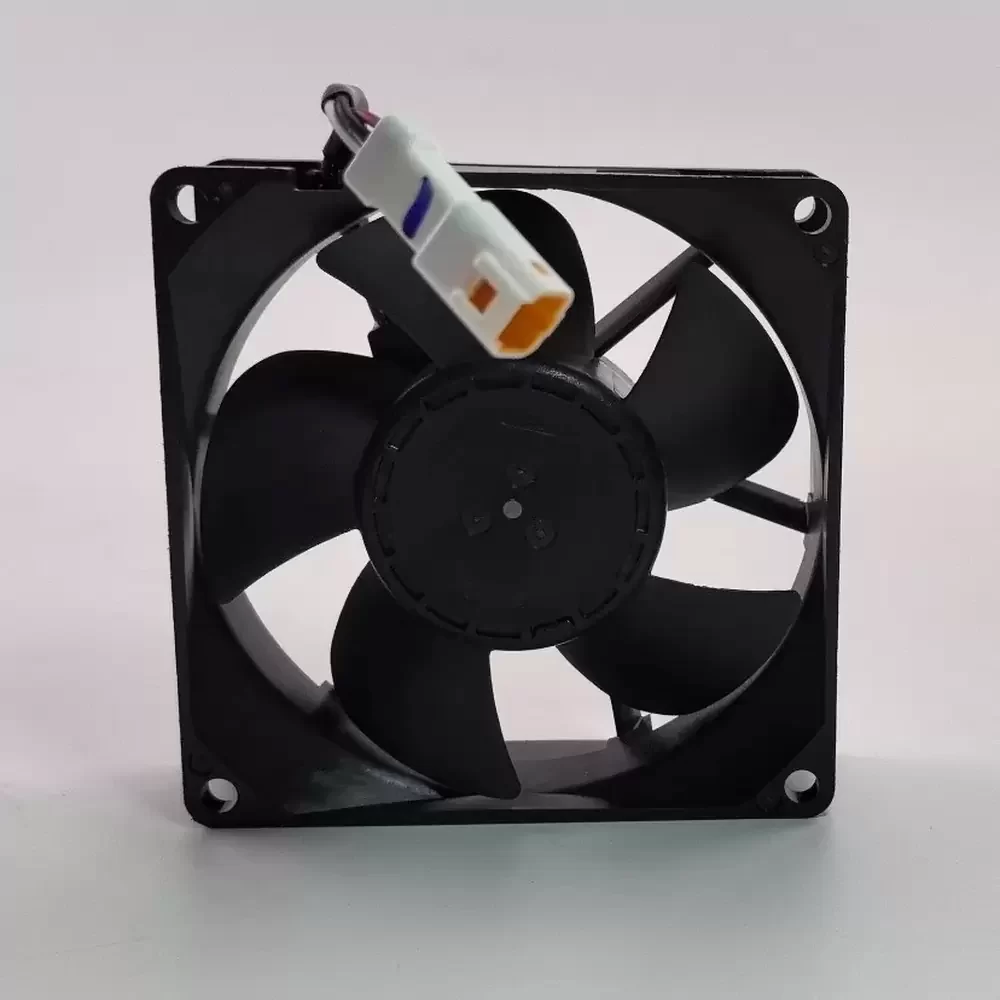

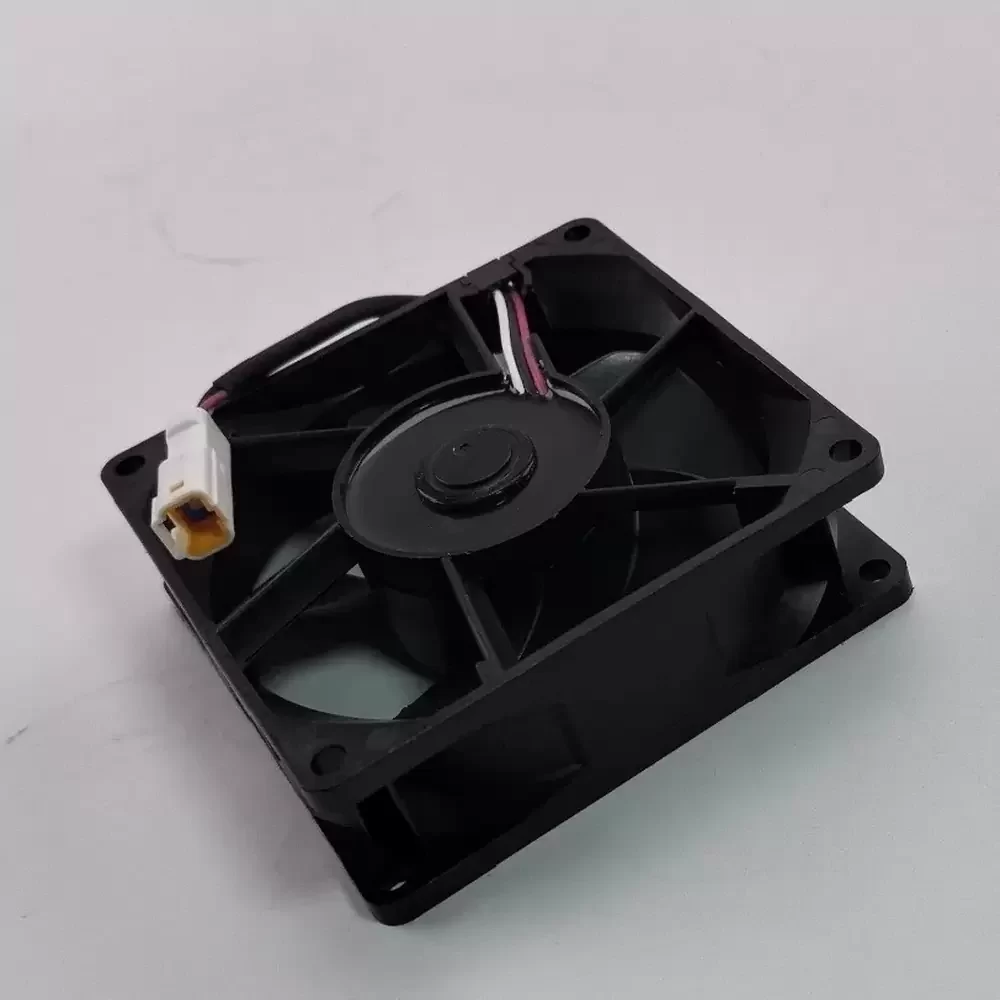

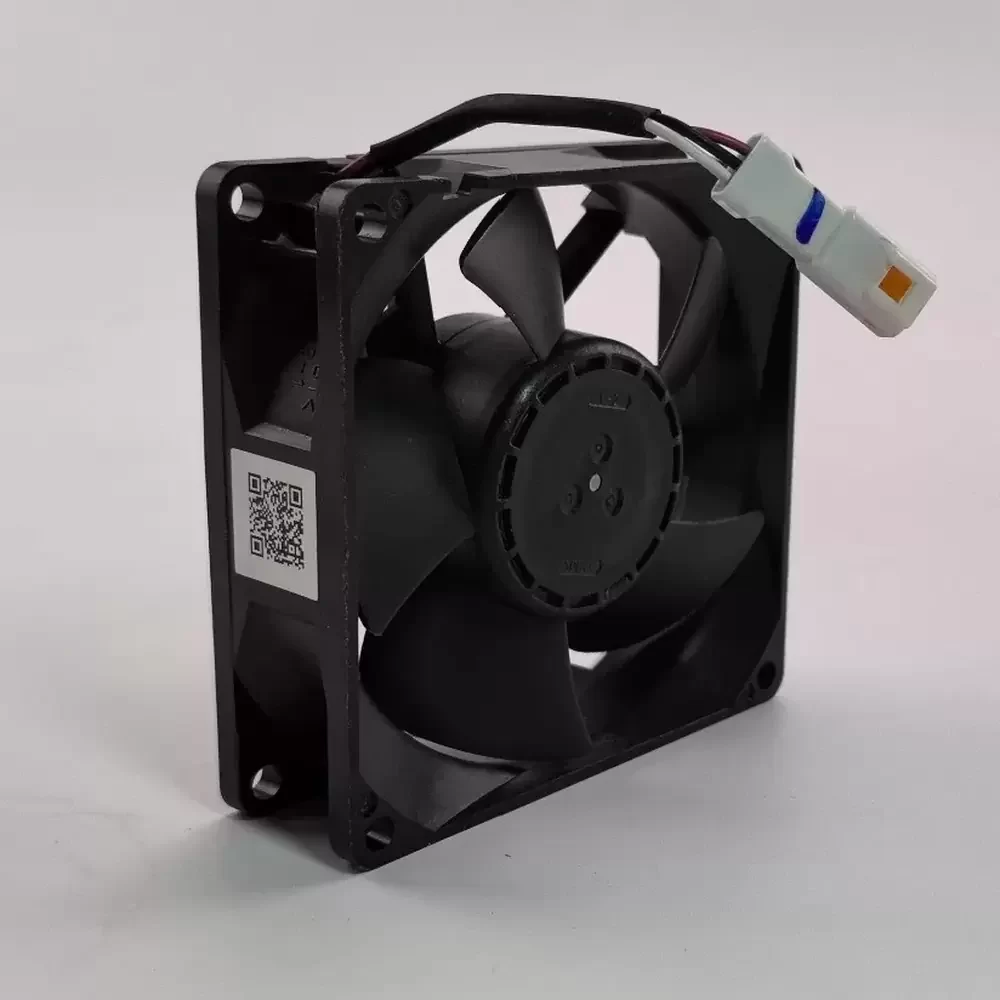

The NMB 08025VE-12P-GLD is a precision-engineered Axial Fan designed for demanding industrial environments where reliability is paramount. Utilizing advanced DC brushless motor technology and a robust dual ball bearing architecture, this unit significantly reduces thermal impedance while maintaining exceptional structural rigidity under stress. Its aerodynamic impeller design optimizes airflow delivery against system resistance, ensuring consistent heat dissipation in systems requiring ingress protection and operational longevity.
Model Number: 08025VE-12P-GLD
Brand: NMB (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.30 A
Power: 3.60 W
Rated Speed: 4200 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 53.0 CFM (90.0 m³/h / 1.50 m³/min)
Max. Static Pressure: 6.80 mmH₂O (66.6 Pa / 0.27 inH₂O)
Dimensions: 80x80x25mm
Weight: 95 g
Life Expectancy: 60,000 Hours @ 40°C
Speed Control: Alarm Signal (Locked Rotor Sensor)
Ingress Protection: Waterproof (IP55 Rated)
Insulation Class: Class E
Noise Level: 40.0 dB(A)
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Termination: 3-Wire Lead
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Mounting Orientation: Any
Certifications: UL, CSA, TUV, CE
Protection: Reverse Polarity, Locked Rotor Protection
The 08025VE-12P-GLD is specifically engineered for critical cooling applications such as outdoor telecommunications cabinets, CNC machinery, and industrial automation control panels where moisture resistance is required. Its ruggedized construction makes the 08025VE-12P-GLD particularly suitable for environments exposed to humidity or particulate matter, protecting sensitive electronics in medical devices and power supply units.
