Description

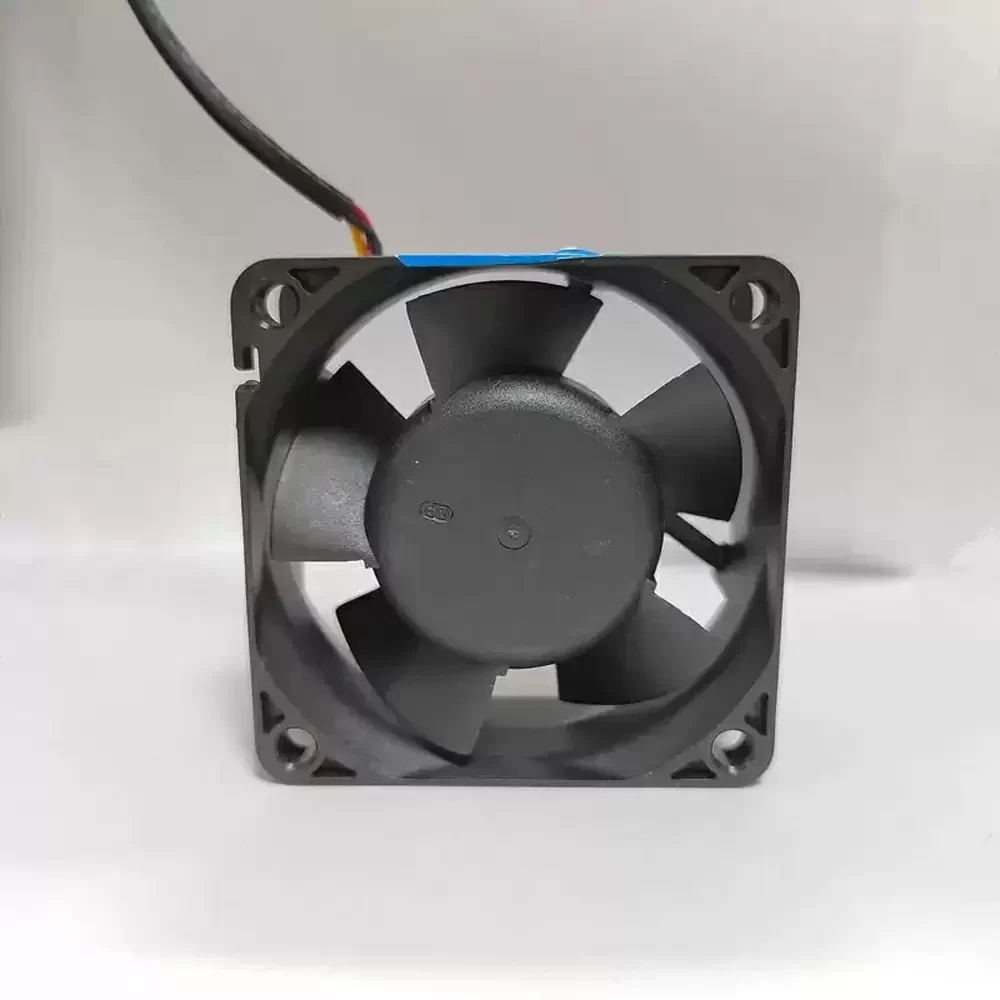

The Y.L.FAN D60BV-12 is a high-static pressure DC Axial Fan engineered for demanding industrial thermal management applications. Featuring a robust DC brushless motor and a precision dual ball bearing architecture, this cooling unit is designed to withstand continuous operation with minimal friction and heat generation. The aerodynamic impeller geometry is optimized to deliver substantial airflow while overcoming the high thermal impedance often found in densely populated electronic enclosures. Constructed with UL94V-0 rated materials, it ensures structural rigidity and fire safety compliance.
Model Number: D60BV-12
Brand: Y.L.FAN (Yate Loon)
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.50 A
Power Consumption: 6.00 W
Rated Speed: 6800 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 38.5 CFM (65.4 m³/h / 1.09 m³/min)
Max. Static Pressure: 10.5 mmH₂O (102.9 Pa / 0.41 inH₂O)
Dimensions: 60 x 60 x 25 mm
Weight: 75 g
Life Expectancy: 70,000 Hours @ 40°C
Noise Level: 44.0 dBA
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)

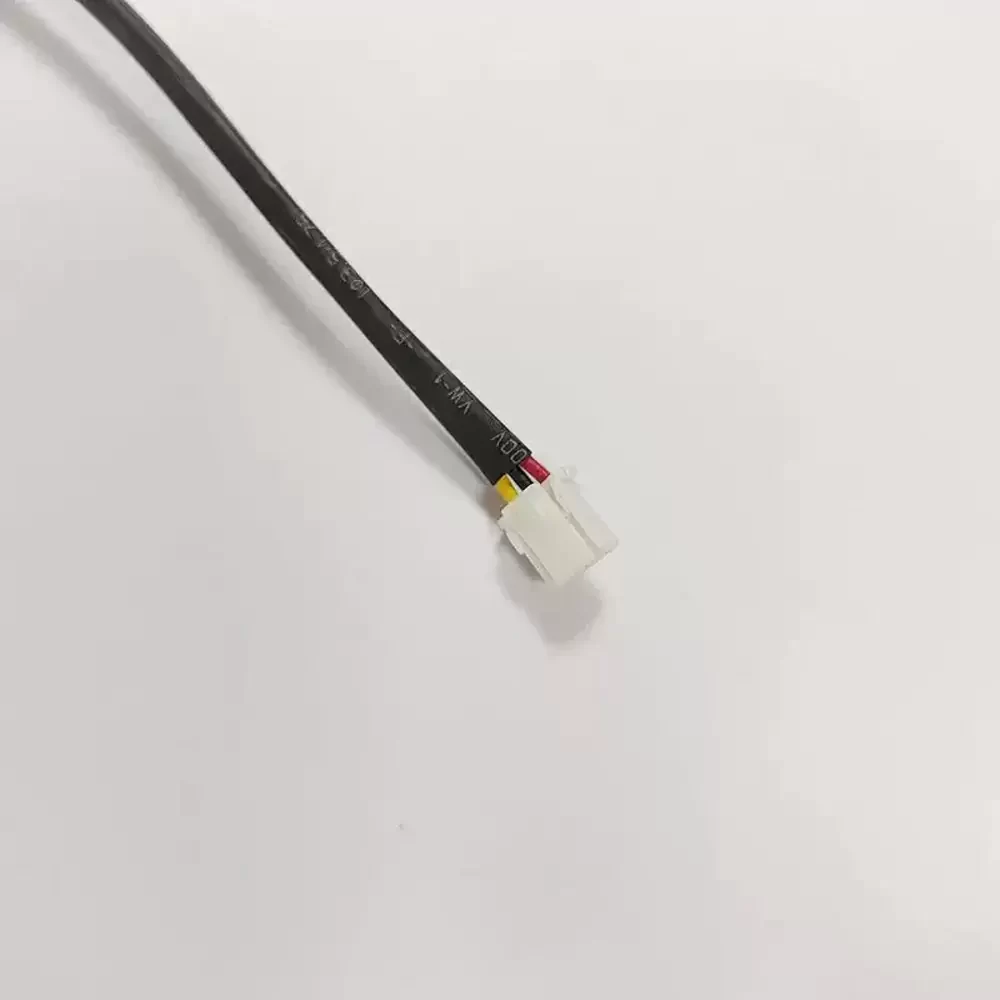

Termination: 2-Wire Lead
Ingress Protection: IP20
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Mounting Orientation: Any
The D60BV-12 is specifically optimized for scenarios requiring reliable heat dissipation in compact spaces, such as server power supply units and industrial automation chassis. Its high rotational speed and airflow capabilities make the D60BV-12 ideal for cooling rack-mounted telecommunications equipment and CNC control systems where maintaining component stability is critical. By effectively managing internal temperatures, this model prevents thermal throttling and prolongs the operational lifespan of sensitive electronics.
