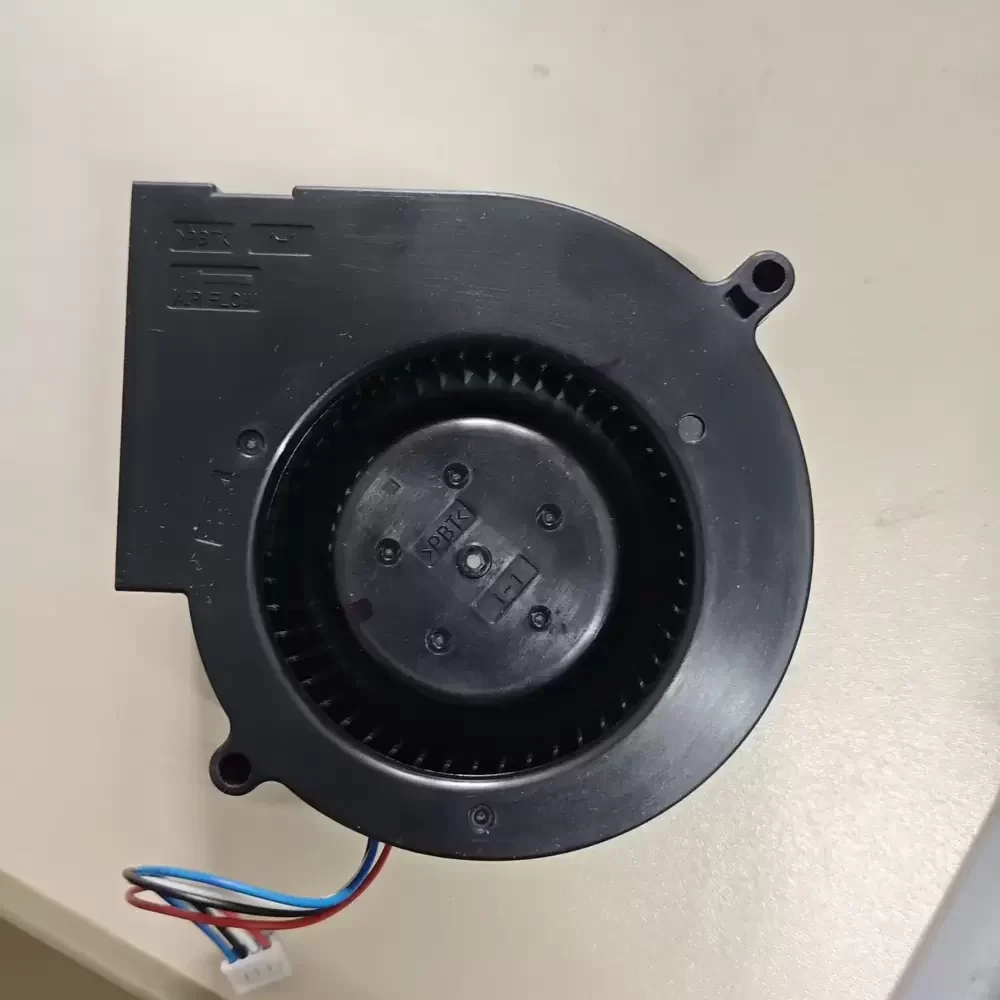

Description
The NMB 09533GS-24L-AMD-1 is a precision-engineered centrifugal blower fan designed for high-static pressure applications where directed airflow is critical. Utilizing MinebeaMitsumi’s advanced DC motor technology, this unit features a robust double ball bearing system that ensures long-term operational stability and reduced thermal impedance within the motor assembly. The aerodynamic impeller design optimizes air intake and exhaust efficiency, minimizing turbulence while maintaining structural rigidity under load. Engineered for industrial reliability, the 09533GS-24L-AMD-1 integrates a 4-wire interface, supporting Pulse Width Modulation (PWM) for precise speed regulation and thermal management in compact enclosures.
Model Number: 09533GS-24L-AMD-1
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: Centrifugal Blower Fan
Rated Voltage: 24V DC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.29 A
Power Consumption: 6.96 W
Rated Speed: 3600 RPM
Bearing Type: Double Ball Bearing
Max. Air Flow: 26.50 CFM (45.0 m³/h / 0.75 m³/min)
Max. Static Pressure: 16.5 mmH₂O (161.8 Pa / 0.65 inH₂O)
Dimensions: 95mm x 95mm x 33mm
Weight: 170 g
Life Expectancy: 50,000 Hours at 40°C
Speed Control: 4-Wire PWM / Tachometer Signal
Ingress Protection: IP40
Insulation Class: Class E
Noise Level: 43.5 dBA
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)

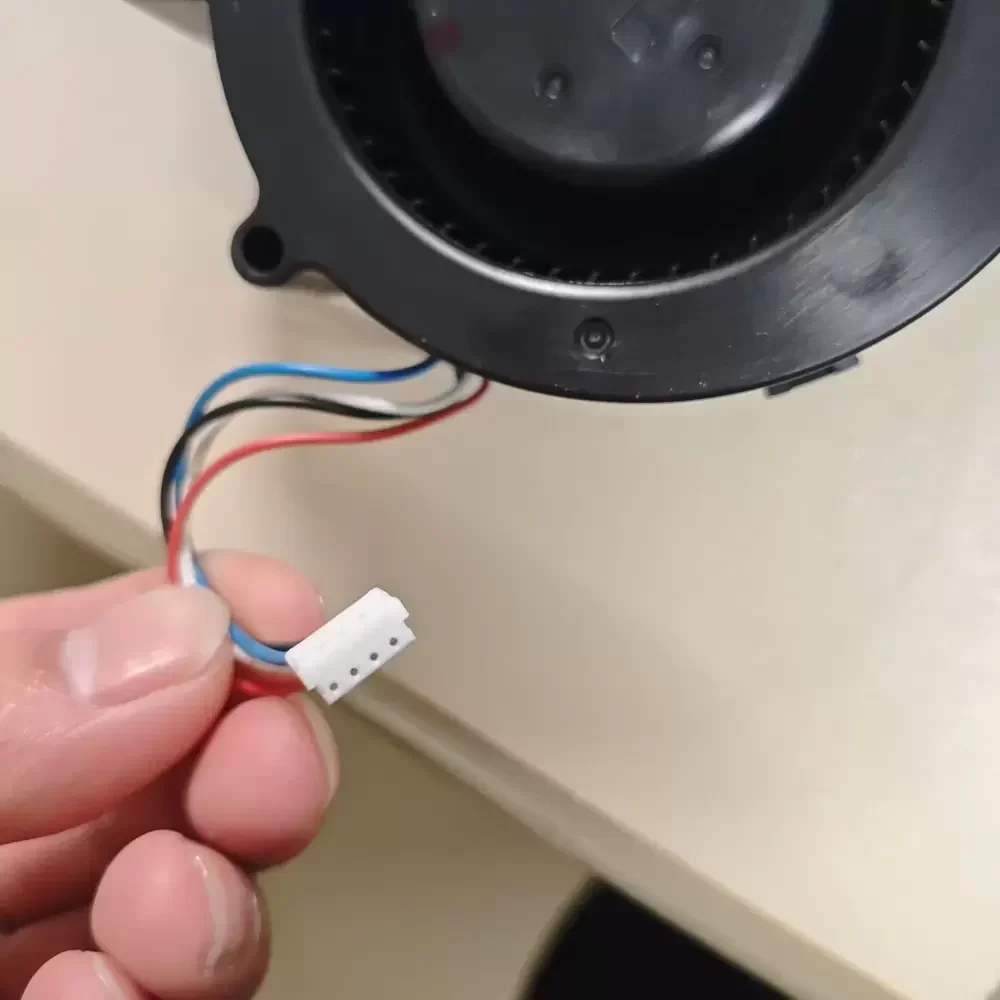

Termination: 4-Wire Lead with Connector
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Mounting Orientation: Any
Certifications: UL, CSA, TUV, CE
Protection: Locked Rotor Protection, Reverse Polarity Protection
The 09533GS-24L-AMD-1 is specifically engineered for equipment requiring concentrated airflow to dissipate heat from high-density components. Common deployment scenarios include cooling lamp assemblies in high-lumen projectors and regulating temperatures in multifunction office copiers where space is constrained. The 09533GS-24L-AMD-1 is also suitable for industrial automation control cabinets, server rack spot cooling, and medical instrumentation where reliable back-pressure performance is mandatory. Its 4-wire control scheme allows these systems to dynamically adjust fan speed based on thermal load.
