109E1724H501 Sanyo Denki 24V 172x51mm DC Axial Fan

Description

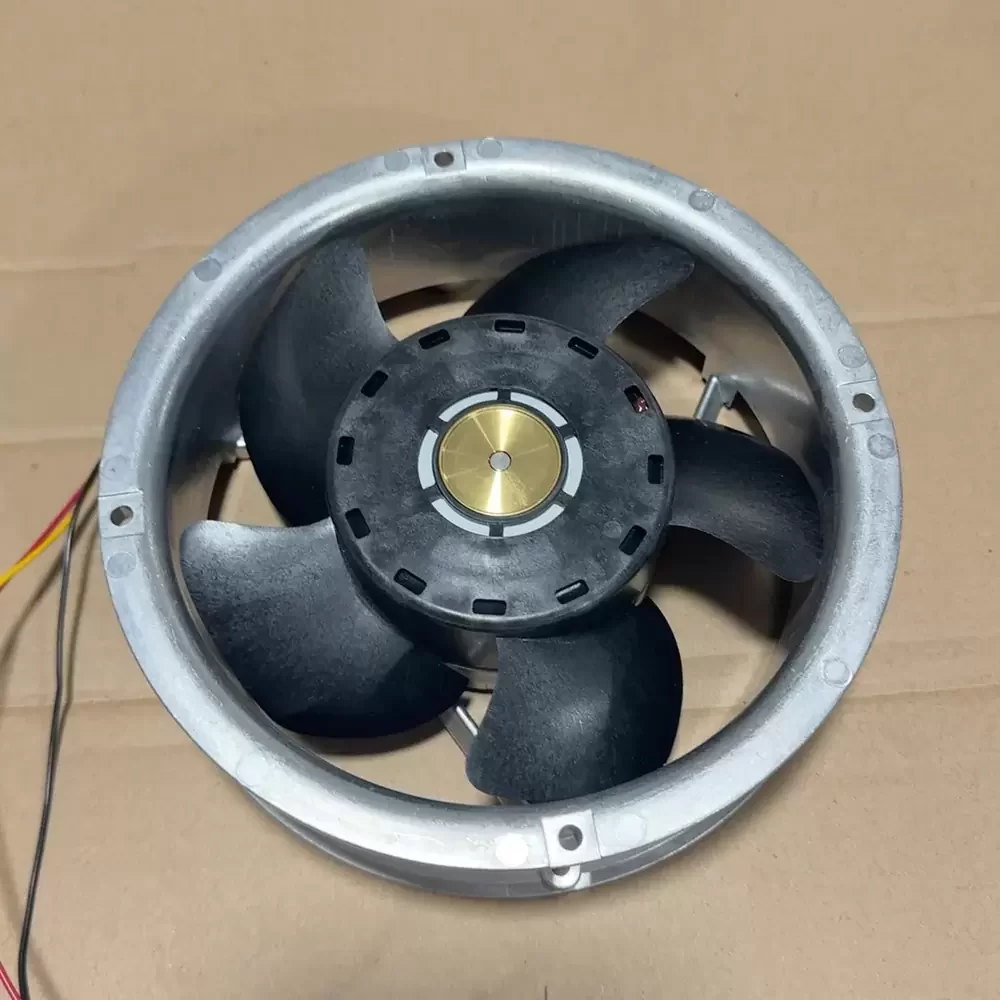

The Sanyo Denki 109E1724H501 is a high-performance tubeaxial cooling fan featuring a 172 x 51 mm circular profile, a nominal 24 VDC input, and a maximum airflow capacity of 226.0 CFM. Constructed with a durable aluminum frame and a ribless design, this unit integrates a dual ball bearing system to ensure a prolonged service life of 40,000 hours at 60 °C. The fan operates at a rotational speed of 3050 RPM while consuming 13.92 W of power and generating an acoustic noise level of 47 dB(A). Electrical interfacing is facilitated via a 3-wire lead configuration equipped with a built-in tachometer pulse sensor for precise speed monitoring, alongside integrated locked rotor burnout and reverse polarity protection mechanisms.

109E1724H501 Specifications

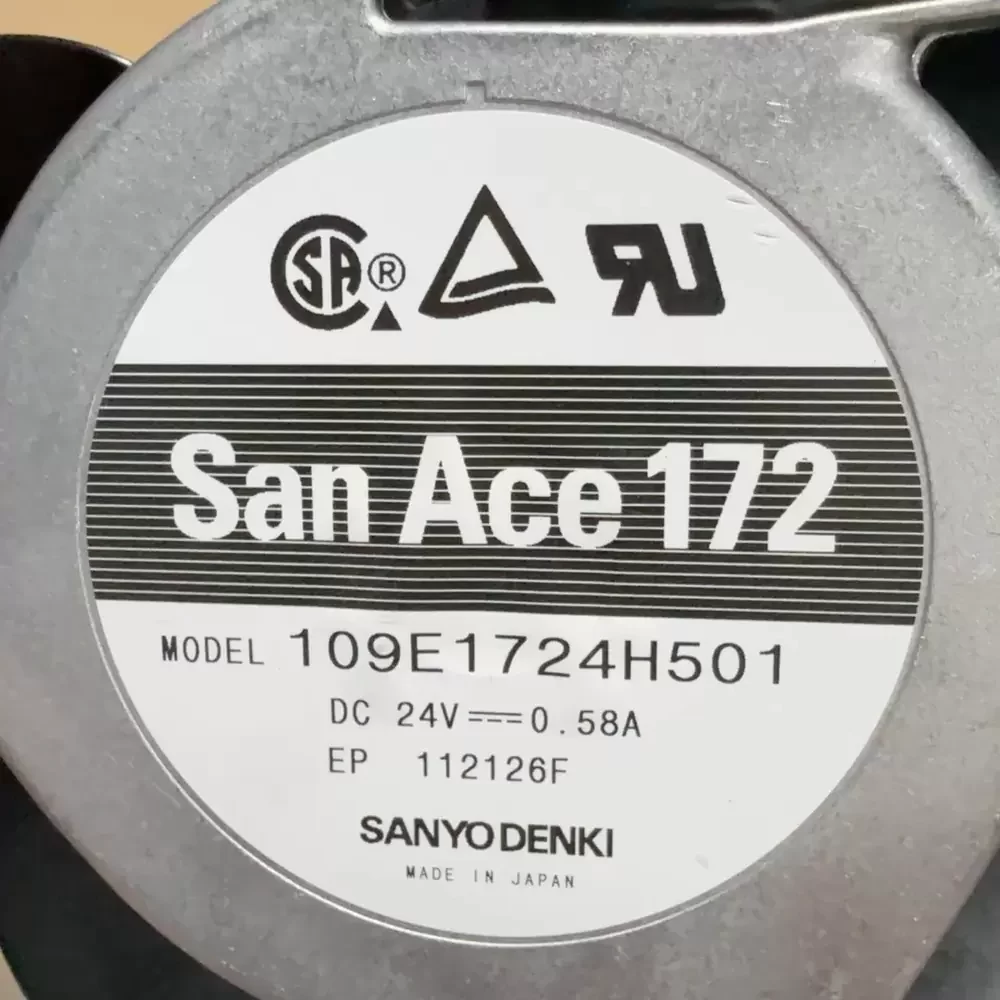

Model Number: 109E1724H501
Brand: Sanyo Denki
Series: San Ace 172 (109E Series)
Product Category: DC Axial Fan
Nominal Voltage: 24 VDC
Operating Voltage Range: 20.4 to 27.6 VDC
Nominal Current: 0.58 A
Power Consumption: 13.92 W
Rotational Speed: 3050 RPM
Maximum Airflow: 226.0 CFM
Airflow (Metric): 6.33 m³/min
Acoustic Noise Level: 47 dB(A)
Physical Dimensions: 172 x 51 mm
Frame Shape: Circular
Weight: 780 g
Bearing System: Dual Ball Bearing

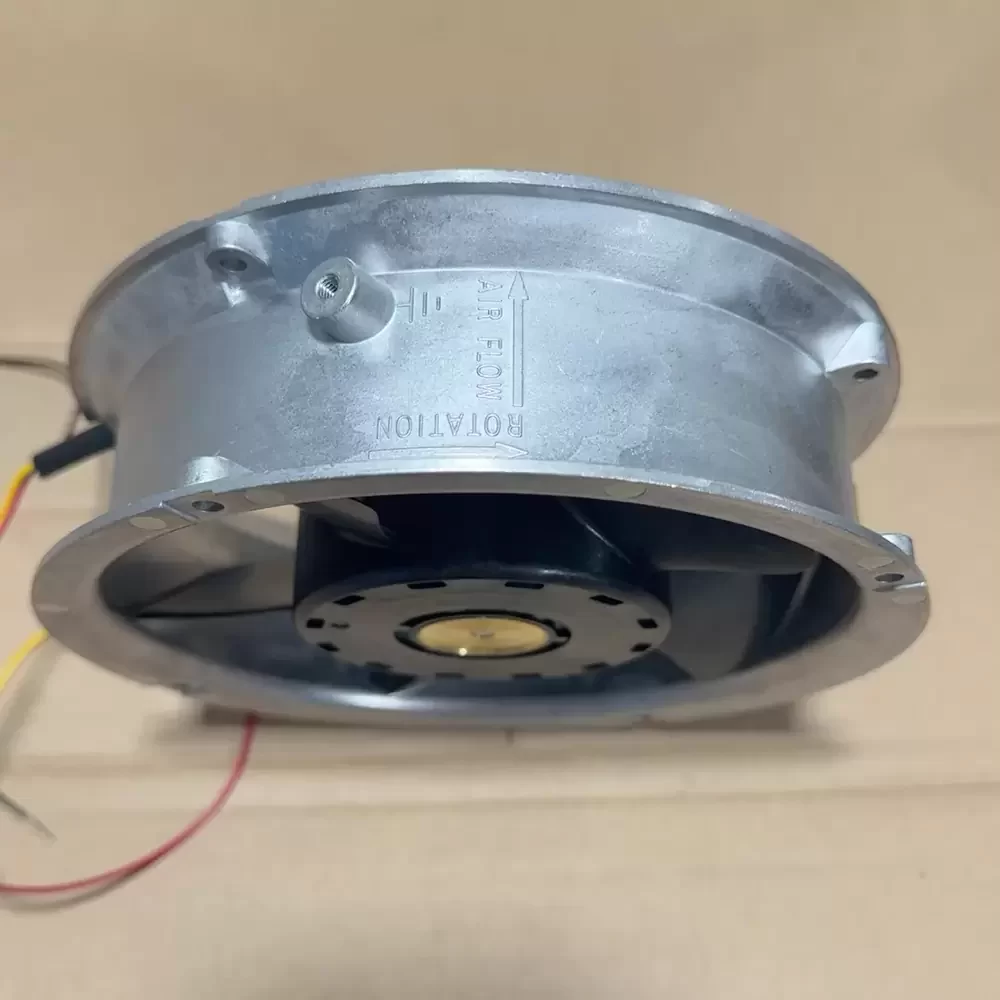

Frame Material: Aluminum

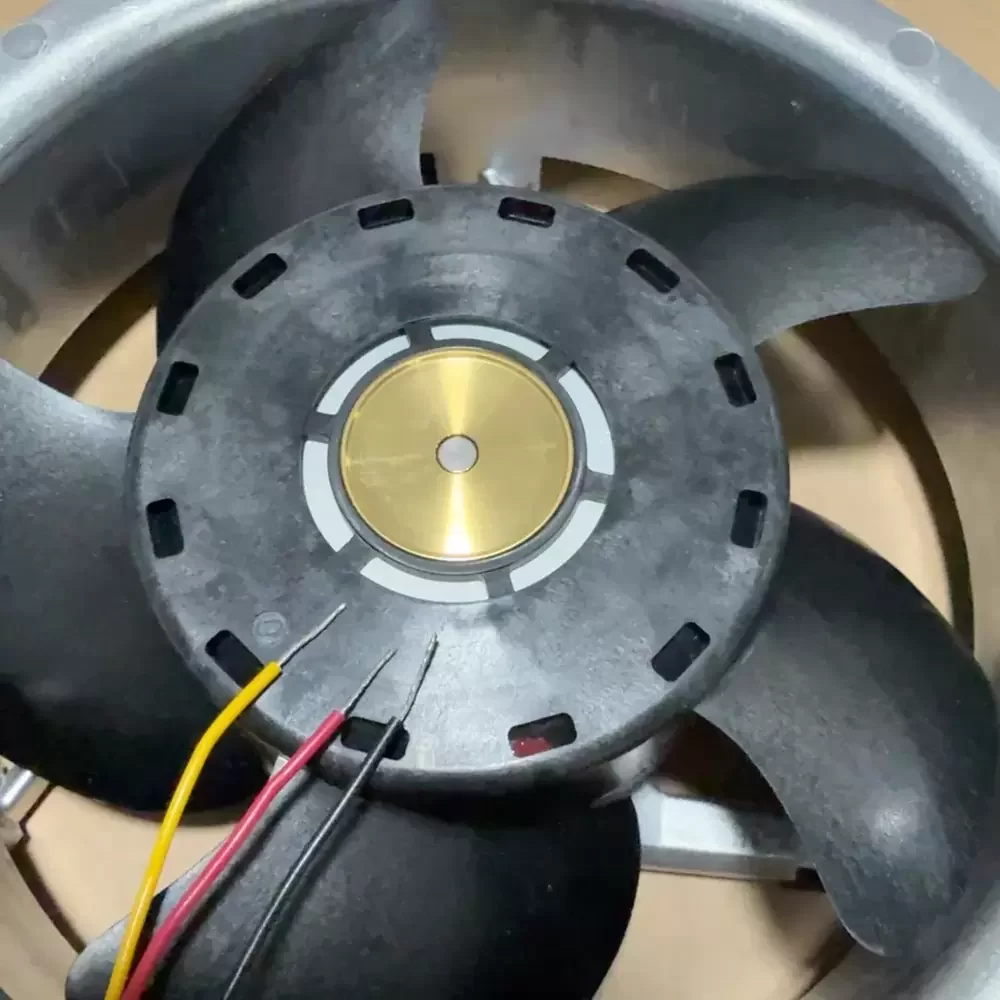

Termination Type: 3-Wire Lead
Sensor Type: Tachometer (Pulse Sensor)
Operating Temperature Range: -20 to 70 °C
Service Life: 40,000 hours at 60 °C
Protection Features: Locked Rotor Burnout Protection, Reverse Polarity Protection

109E1724H501 Applications
Primary applications include integration into CNC spindle cooling systems, telecom base station enclosures, and industrial HVAC control panels. Deployed within high-density server racks and automated manufacturing drive cabinets, this component provides critical thermal management for continuous-duty power supplies and heavy-duty inverter modules.
