Description

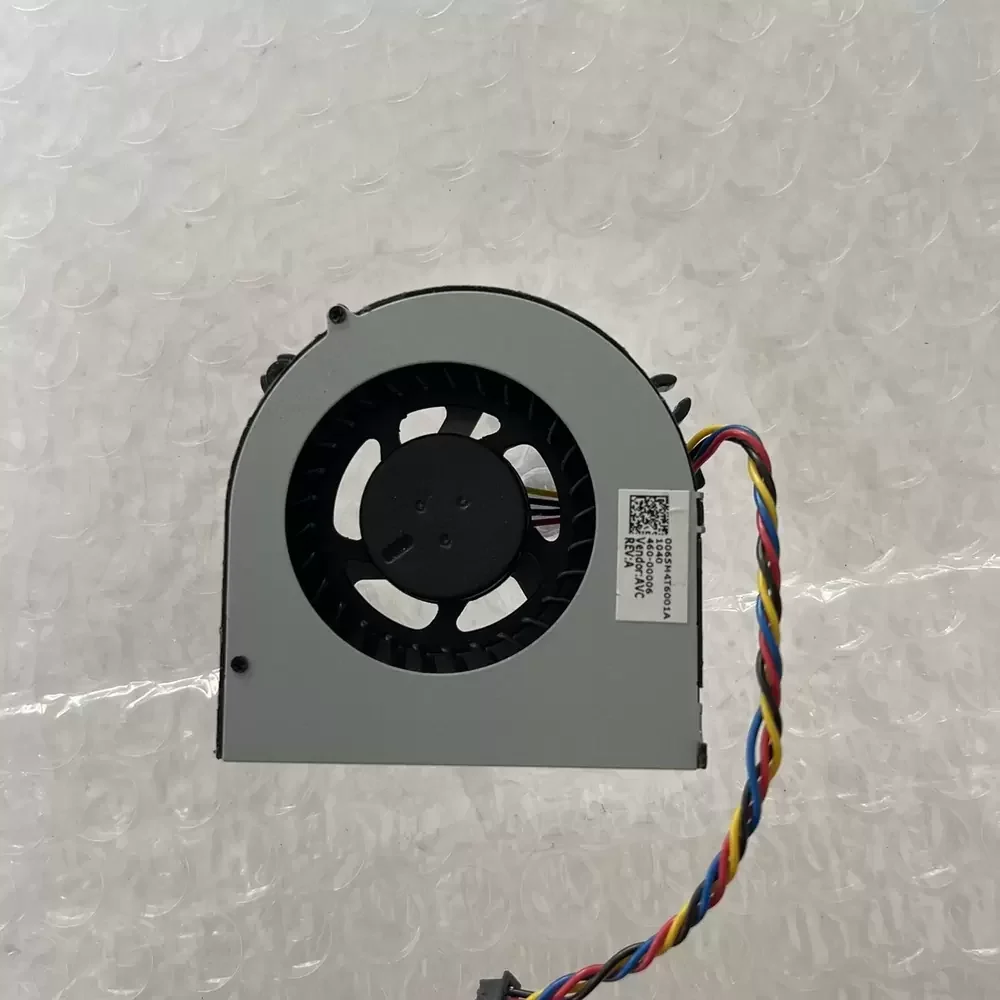

The AVC BAZA0516R5H-P002 is a specialized centrifugal blower designed for compact thermal management in high-density projection equipment. Utilizing advanced DC motor technology and a precision-engineered hydraulic bearing system, this unit delivers concentrated airflow with optimized static pressure to overcome high thermal impedance within restricted enclosures. The aerodynamic volute design minimizes turbulence-induced noise while maintaining structural rigidity under continuous operation. Engineered for reliability, the BAZA0516R5H-P002 ensures efficient heat dissipation for sensitive optical components, featuring a 4-wire interface for precise Pulse Width Modulation (PWM) speed regulation.
Model Number: BAZA0516R5H-P002
Brand: AVC (Asia Vital Components)
Product Type: Centrifugal Blower / Projector Fan
Rated Voltage: 5VDC
Operating Voltage Range: 4.5 – 5.5 VDC
Rated Current: 0.40 A
Power Consumption: 2.0 W
Bearing Type: Hydraulic Bearing
Dimensions: 50mm x 50mm x 16mm
Termination: 4-Wire Lead
Connector Type: 4-Pin Micro Connector
Speed Control: PWM (Pulse Width Modulation)
Signal Output: Tachometer (RPM Sensor)
Material: Thermoplastic PBT (UL94V-0)
Ingress Protection: IP4X
Mounting Orientation: Any
Application: Projector Cooling (XGIMI Z4 AIR)
Airflow Direction: Side Intake, Tangential Exhaust
Operating Temperature: -10°C to +70°C
This centrifugal blower is specifically engineered for integration into portable projection systems, such as the XGIMI Z4 AIR, where space is at a premium and heat flux is high. The BAZA0516R5H-P002 provides critical cooling to the DLP chipset and LED light source, preventing thermal throttling during extended media playback. Beyond projectors, the BAZA0516R5H-P002 is suitable for compact embedded electronics, mobile workstations, and VR headsets requiring directed airflow to exhaust heat from tightly packed PCBs and heatsinks.
