Description

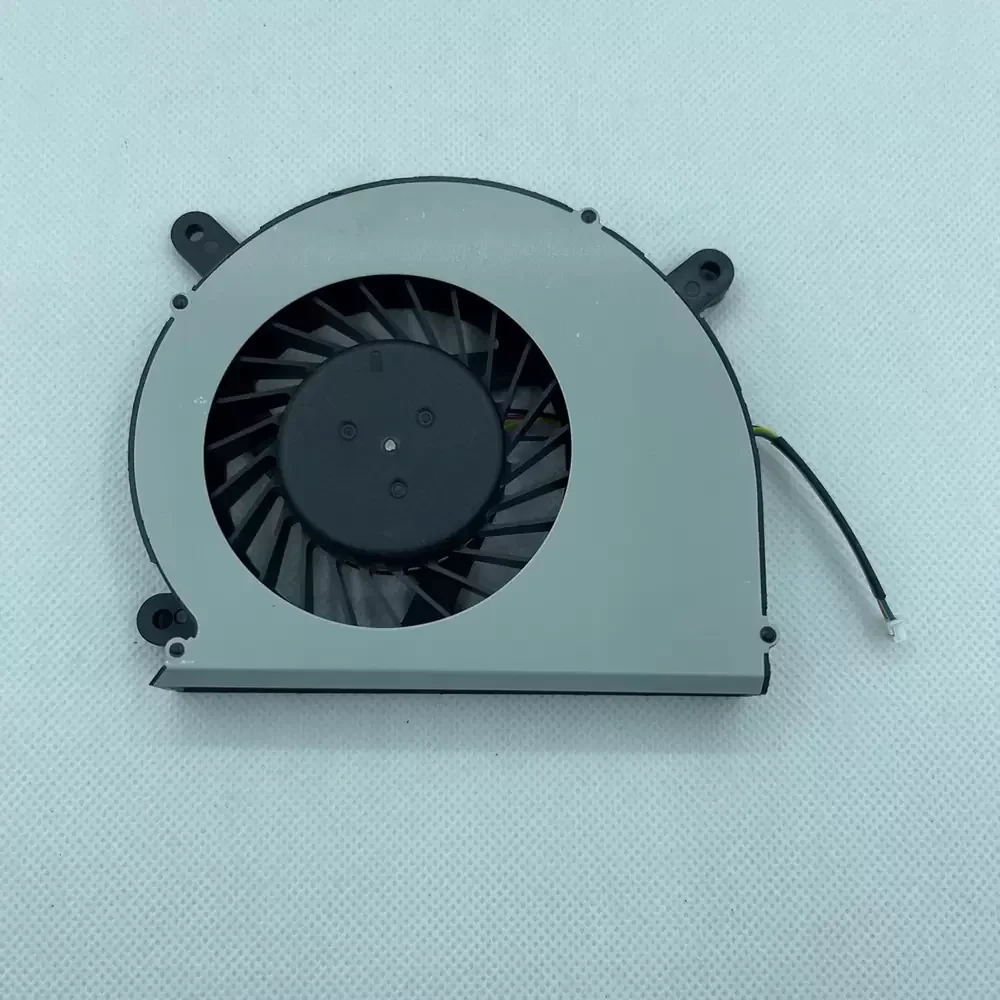

The Foxconn PVB120E12H-P01-AE is a high-efficiency centrifugal blower fan engineered for restricted airflow environments requiring substantial static pressure. Operating at a nominal 12VDC with a current draw of 1.00A, this unit delivers 12W of cooling power, utilizing a precision-balanced impeller to minimize vibration and acoustic resonance. The architecture features a 4-wire PWM interface for dynamic speed regulation, ensuring optimal thermal impedance management under varying load conditions. Constructed with robust thermoplastic housing and a durable bearing system, it ensures structural rigidity and long-term reliability in compact chassis integration.
Model Number: PVB120E12H-P01-AE
Brand: Foxconn
Product Type: Centrifugal Blower Fan
OEM Part Numbers: 0PMYMW, 0W46N2, CN-0PMYMW, CN-0W46N2
Rated Voltage: 12VDC
Voltage Range: 10.8 – 13.2 VDC
Rated Current: 1.00 A
Power Consumption: 12.0 W
Connector Type: 4-Pin / 4-Wire
Speed Control: PWM (Pulse Width Modulation)
Bearing Type: Precision Hydraulic Bearing
Dimensions: 120mm x 120mm x 32mm (Approximate Frame Size)
Mounting Holes: 3-Point Mounting
Airflow Direction: Radial / 90 Degree Exhaust
Housing Material: PBT Thermoplastic (UL94V-0)
Blade Material: PBT Thermoplastic (UL94V-0)
Wire Termination: Lead Wires with Connector
Operating Temperature: -10°C to +70°C
Application Compatibility: Dell OptiPlex 7440, 7450, 3240 AIO Series
Cooling Method: Active Air Cooling
Protection: Locked Rotor Protection, Polarity Protection
This centrifugal blower is primarily deployed in compact computing solutions such as All-in-One (AIO) workstations, specifically compatible with Dell OptiPlex series systems. The PVB120E12H-P01-AE excels in scenarios where vertical clearance is limited, and airflow must be directed 90 degrees from the intake. By maintaining high static pressure, the PVB120E12H-P01-AE effectively forces air through dense heatsink fins found in integrated chassis designs, ensuring critical components remain within safe thermal operating limits during intensive processing tasks.
