DSC-2A 65000463-V11 Hitachi 220VAC Elevator Door Controller Board

Description

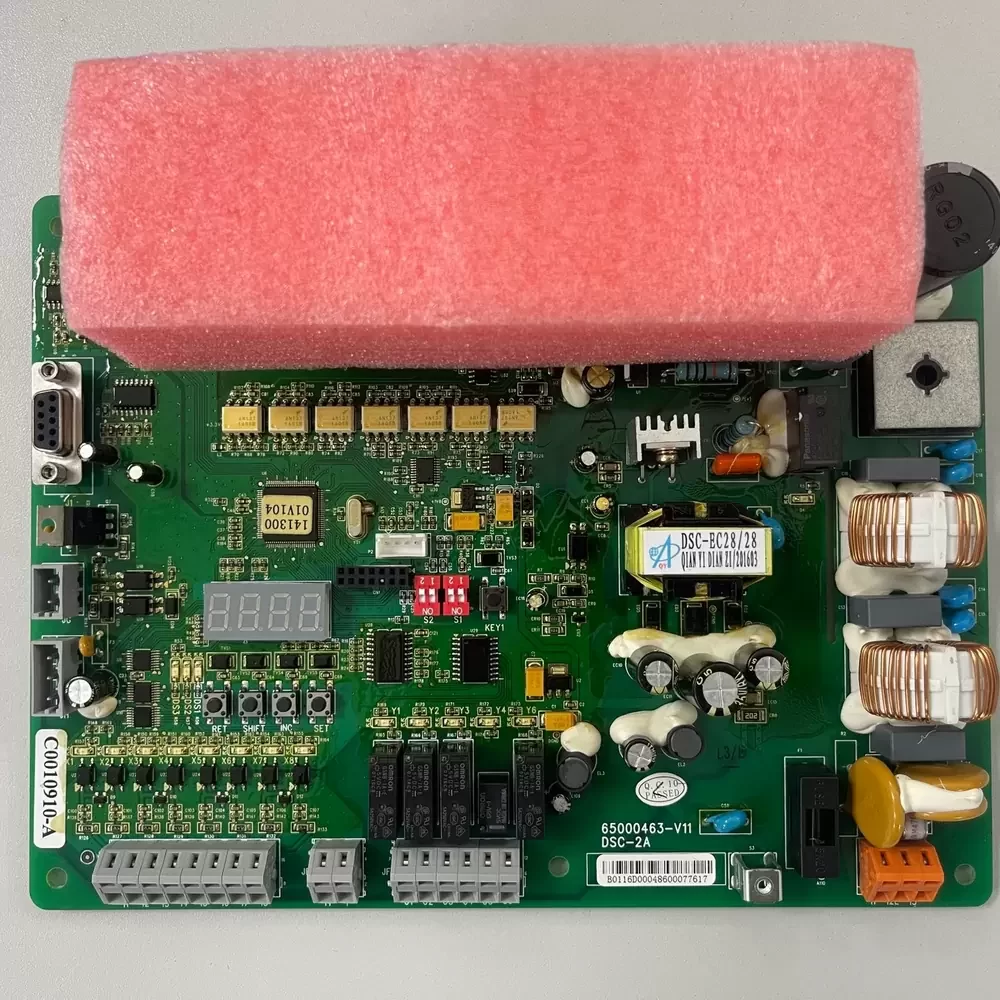

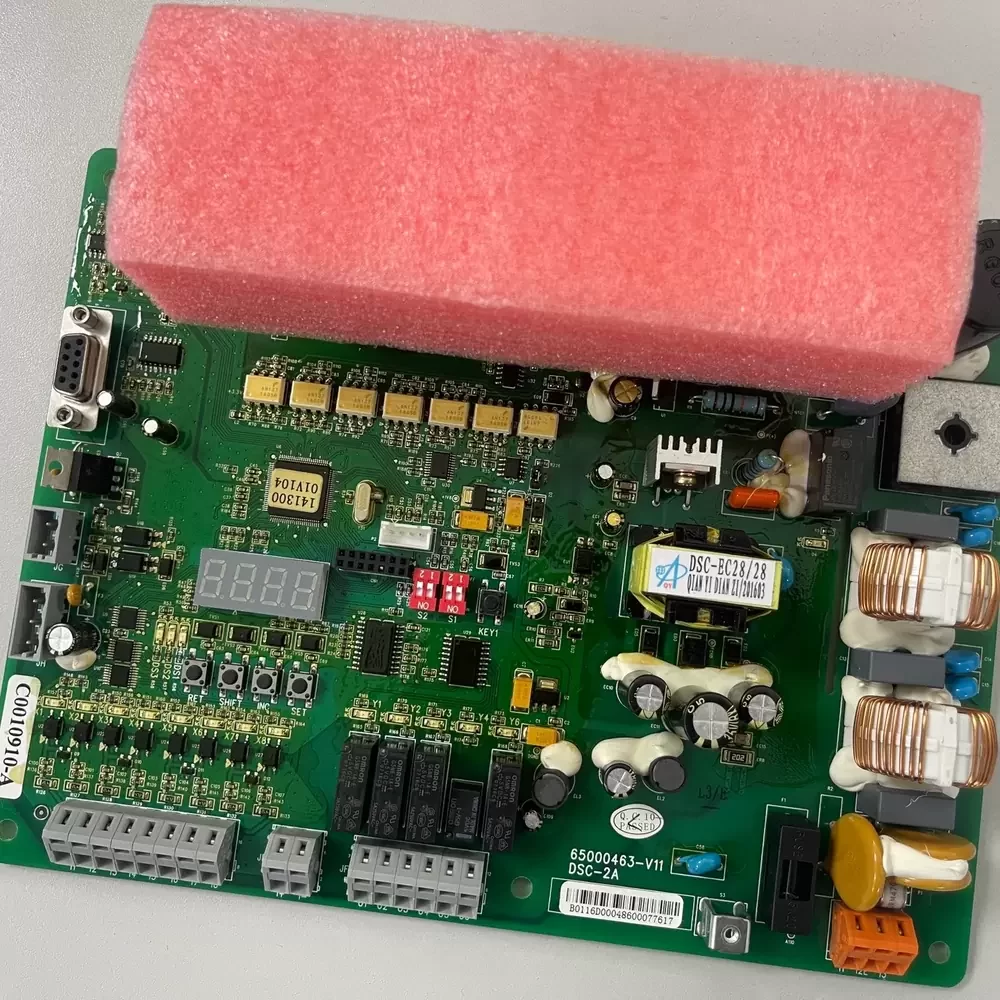

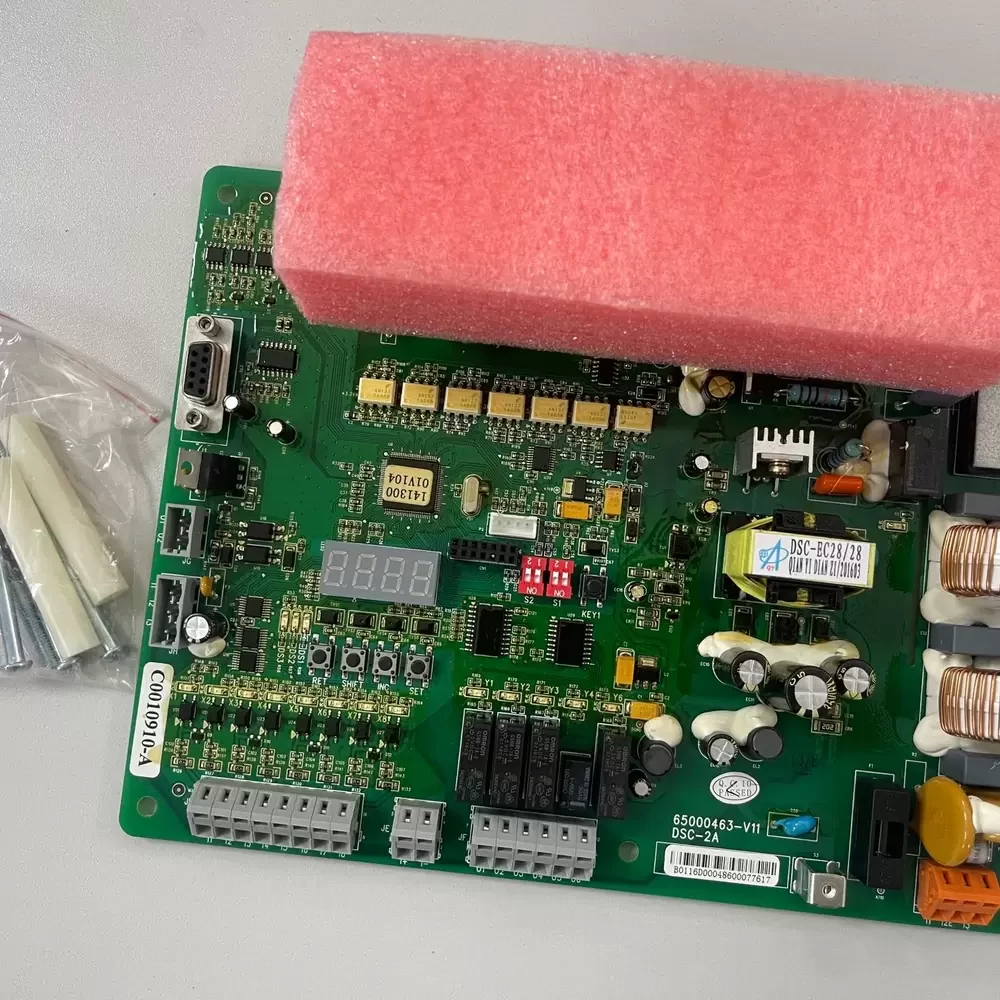

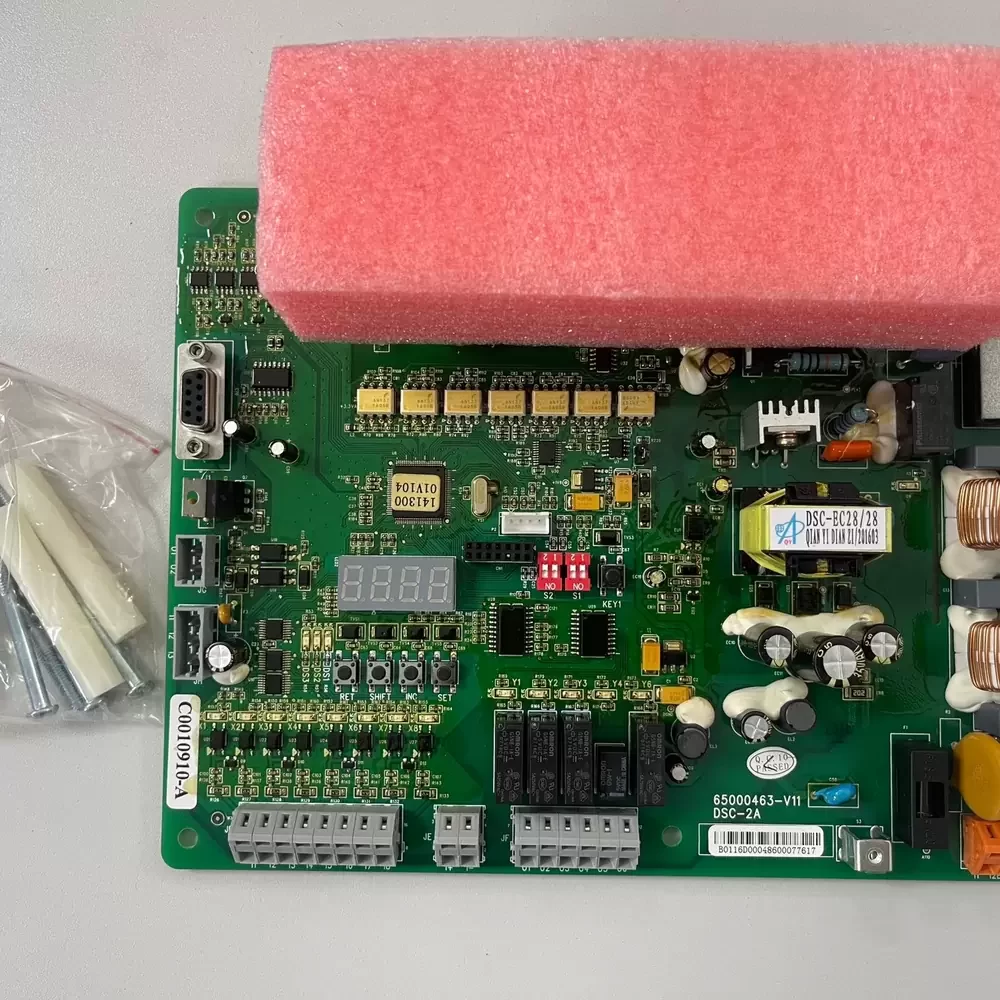

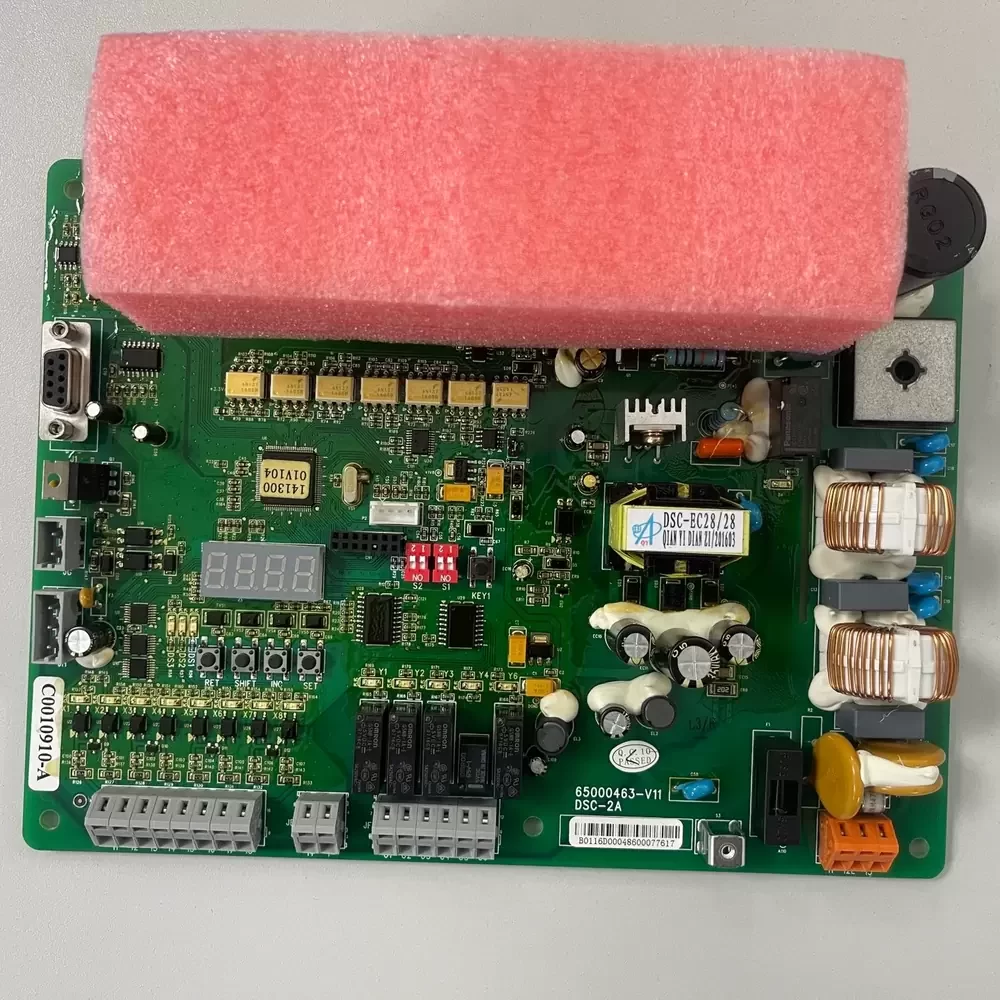

Hitachi DSC-2A 65000463-V11 185 x 155 mm 220 V AC 3-phase output is a high-precision door motor drive board featuring integrated variable frequency control. The unit is constructed on a multi-layer FR-4 PCB substrate utilizing surface-mount technology for high component density and thermal stability. It incorporates a dedicated 32 bit microprocessor for real-time door trajectory calculation and encoder feedback processing via a high-speed serial interface. The hardware includes integrated power modules for driving permanent magnet synchronous motors, opto-isolated digital I/O for safety curtain signals, and a CAN-bus communication port for main controller synchronization.

DSC-2A 65000463-V11 Specifications
Model: DSC-2A
Part Number: 65000463-V11
Brand: Hitachi
Category: Elevator Door Controller Board
Input Voltage: 220 V AC
Input Frequency: 50/60 Hz
Output Type: 3-phase Variable Frequency
Control Logic: 32 bit Microprocessor
Communication Interface: CAN-bus / Serial
Isolation Type: Optocoupler Isolated I/O
PCB Material: FR-4 Glass Epoxy
PCB Revision: V11
Dimensions: 185 x 155 mm
Operating Temperature: -10 to 60 °C
Storage Temperature: -20 to 85 °C
Mounting Type: 4-point Standoff Mount
Connector Type: Plug-in Terminal Blocks
Compliance: CE / ISO 9001

DSC-2A 65000463-V11 Applications
Primary applications include integration into Hitachi HGP and MCA series elevator car top door operator systems. Deployed within automatic sliding door mechanisms to regulate opening and closing torque, speed profiles, and safety reversal logic.
