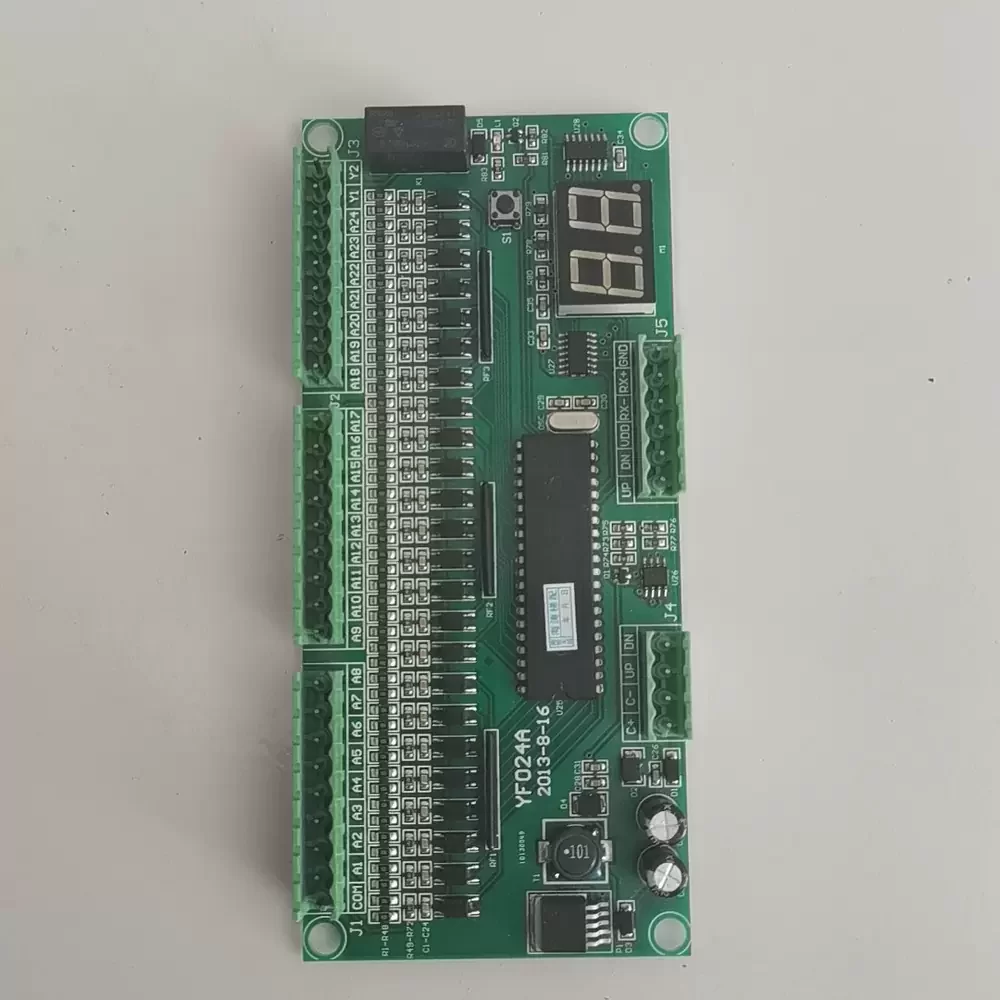

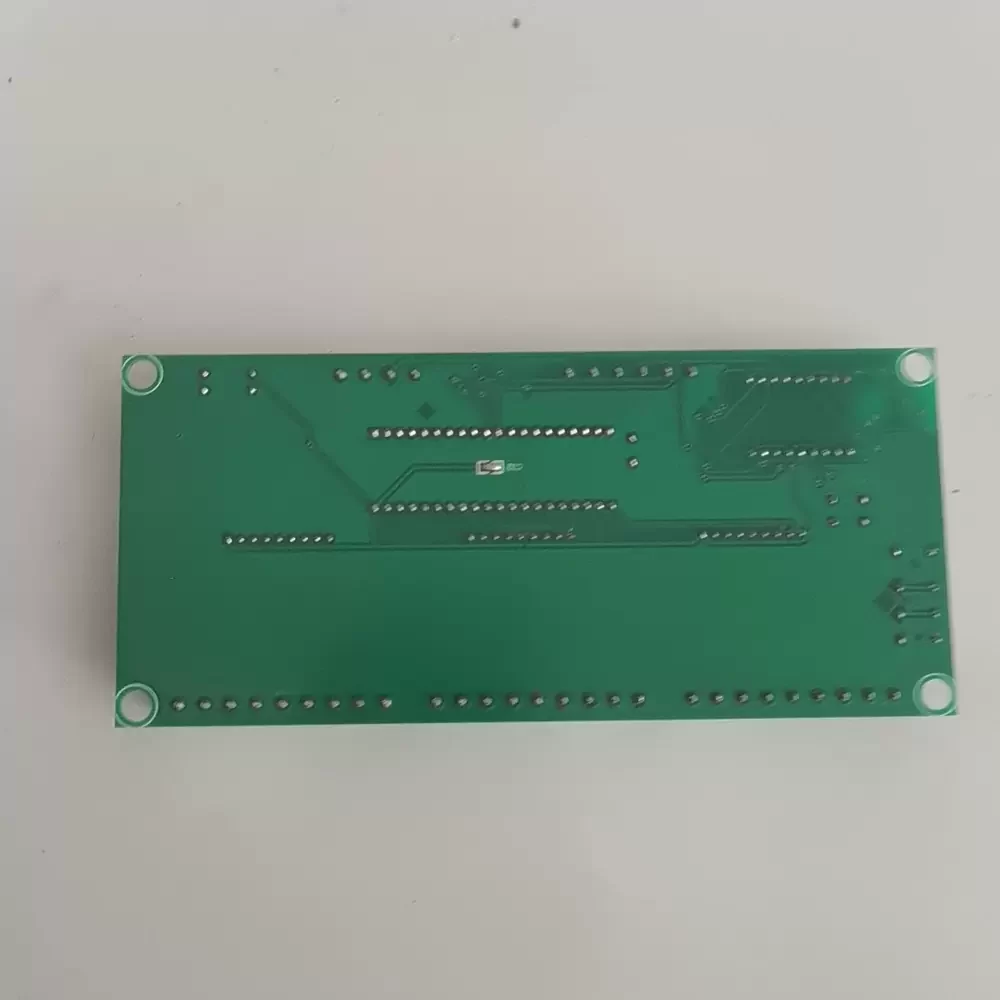

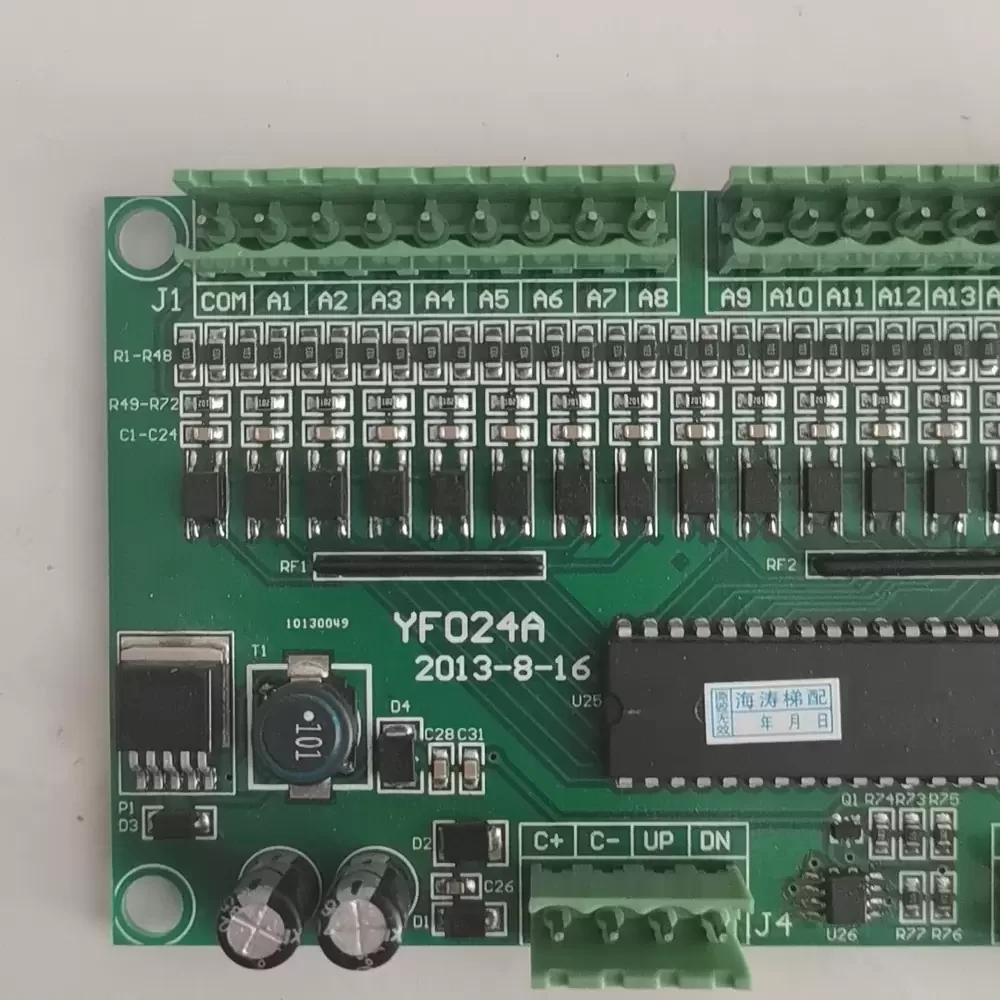

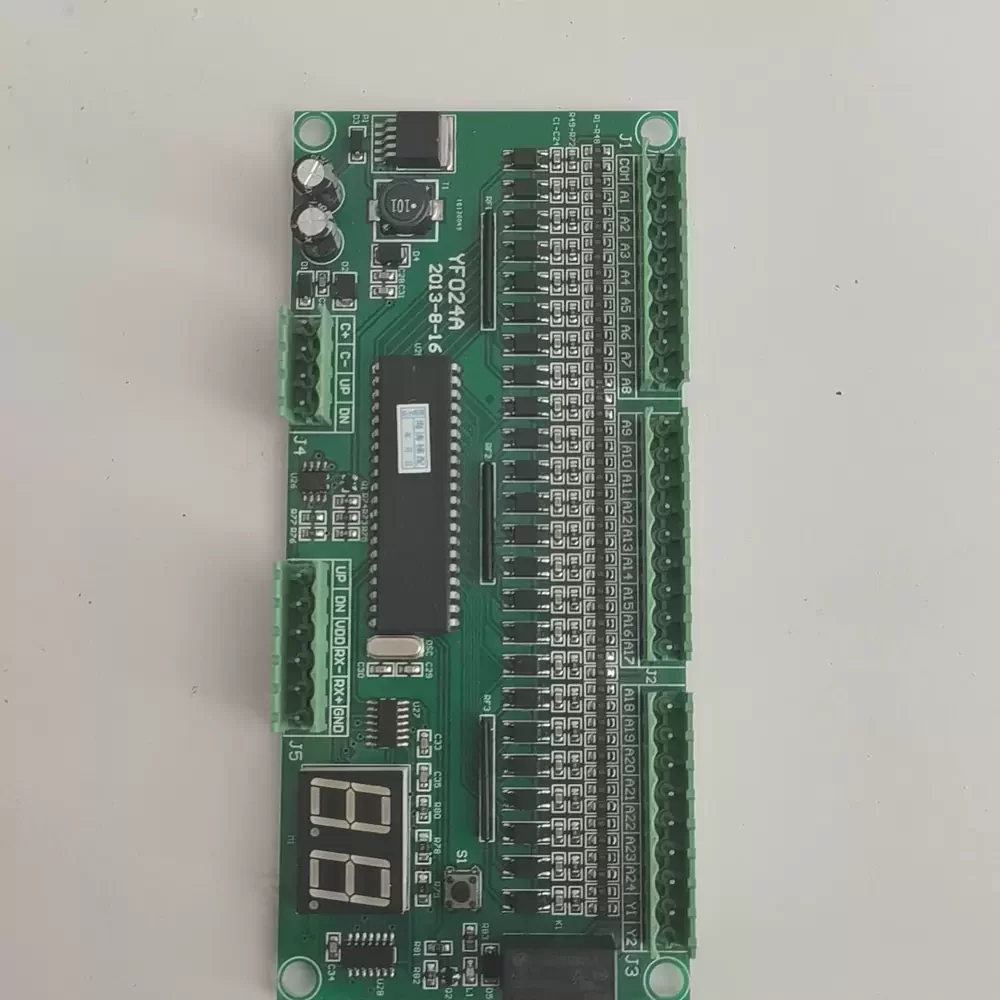

YF024A Sanyo 24VDC 32-bit Escalator Signal Control Board

Description

Sanyo YF024A 160 x 110 mm 24 VDC 32-bit Escalator Signal Control Board is a high-performance logic processing unit designed for real-time monitoring and signal translation. It features a high-density FR-4 glass-reinforced epoxy substrate populated with surface-mount components and a 32-bit microprocessor for rapid data execution. The hardware architecture includes opto-isolated digital input channels and multi-point terminal interfaces to ensure signal integrity against electromagnetic interference. Internal circuitry is optimized for low power consumption while maintaining continuous operational stability for safety-critical logic sequences.

YF024A Specifications
Model: YF024A
Brand: Sanyo
Product Category: Escalator Signal Control Board
Nominal Voltage: 24 VDC
Logic Processor: 32-bit Microprocessor
Board Material: FR-4 Glass-Reinforced Epoxy
Operating Temperature: 0 to 60 °C
Storage Temperature: -20 to 75 °C
Relative Humidity: 5 to 95 % (Non-condensing)
Signal Input: Digital Opto-isolated
Signal Output: Relay / Transistor Logic
Mounting Interface: Multi-point Standoff
Dimensions: 160 x 110 mm
Certification: CE / CCC
Application Compatibility: Sanyo Escalators and Moving Walks

YF024A Applications
Primary applications include integration into Sanyo brand commercial escalators and horizontal moving walks. Deployed within main control cabinets to process safety circuit signals and coordinate passenger detection sensors.
