Description

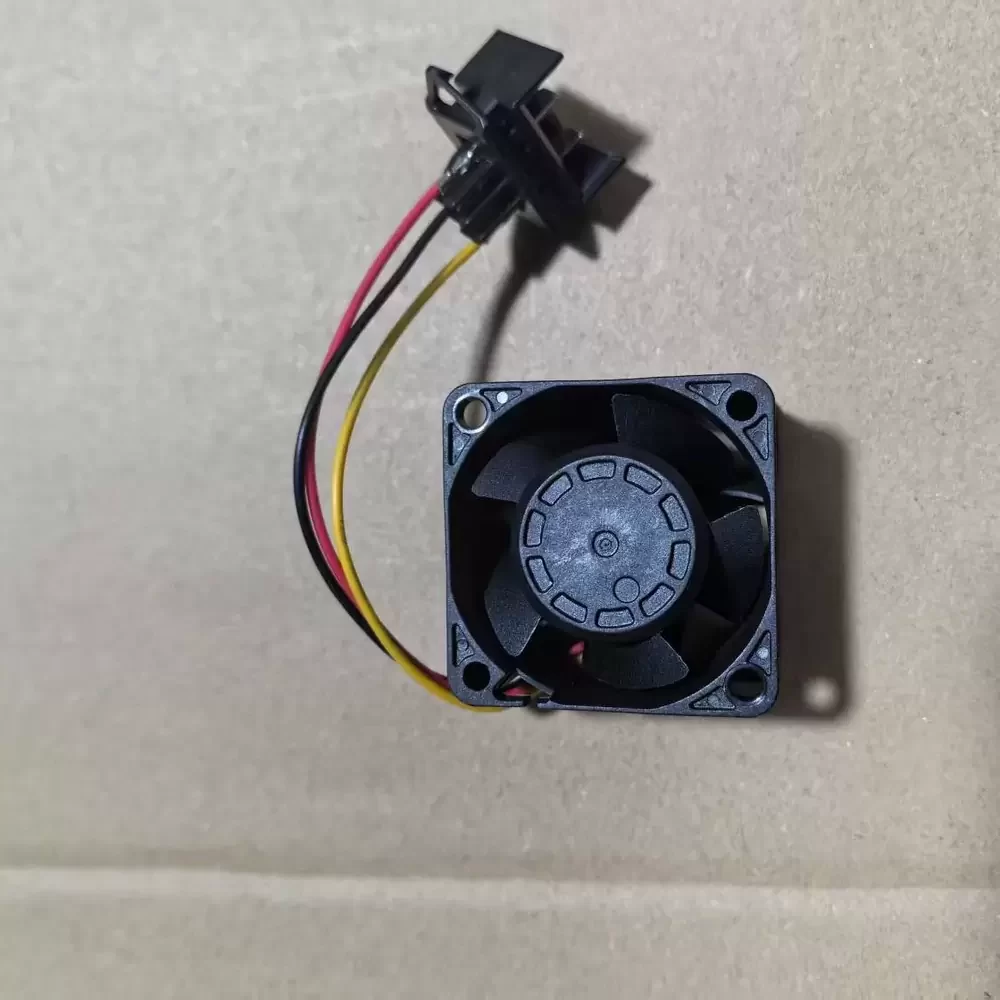

The SUNON PMD2404PQB1-A.(2).B5001.F.GN.I56 is a high-density DC Axial Fan engineered for critical thermal management in space-constrained environments. Utilizing a sophisticated brushless DC motor architecture, this unit minimizes thermal impedance through optimized blade geometry and high-precision dual ball bearings. The structural rigidity of the PBT thermoplastic housing ensures dimensional stability under high rotational velocities, while the integrated electronic commutation provides consistent torque delivery. Designed for continuous duty cycles, this fan integrates advanced aerodynamic profiles to maximize static pressure and volumetric flow rates in high-impedance systems.
Model Number: PMD2404PQB1-A.(2).B5001.F.GN.I56
Brand: SUNON
Product Type: DC Axial Fan
Rated Voltage: 26VDC
Voltage Range: 20.0 – 27.6 VDC
Rated Current: 0.17A
Power: 4.48W
Rated Speed: 15000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 23.5 CFM (39.9 m³/h)
Max. Static Pressure: 1.15 inH₂O (286.4 Pa)
Dimensions: 40mm x 40mm x 28mm
Weight: 40g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 51.5 dB(A)
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Termination: 3-Pin Connector with Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Insulation Resistance: 10M ohm at 500VDC
Dielectric Strength: 500VAC for 1 minute
Certifications: CE, TUV, UL Recognized
The PMD2404PQB1-A.(2).B5001.F.GN.I56 is specifically designed for high-density electronic enclosures such as 1U server racks and telecommunications switching equipment. Given its high static pressure capabilities, the PMD2404PQB1-A.(2).B5001.F.GN.I56 is an ideal choice for cooling power supply units, medical diagnostic imaging hardware, and industrial automation controllers where airflow resistance is significant. Its compact 40mm footprint allows for precise thermal targeting in localized hotspots within CNC control cabinets and network routers.
