Description

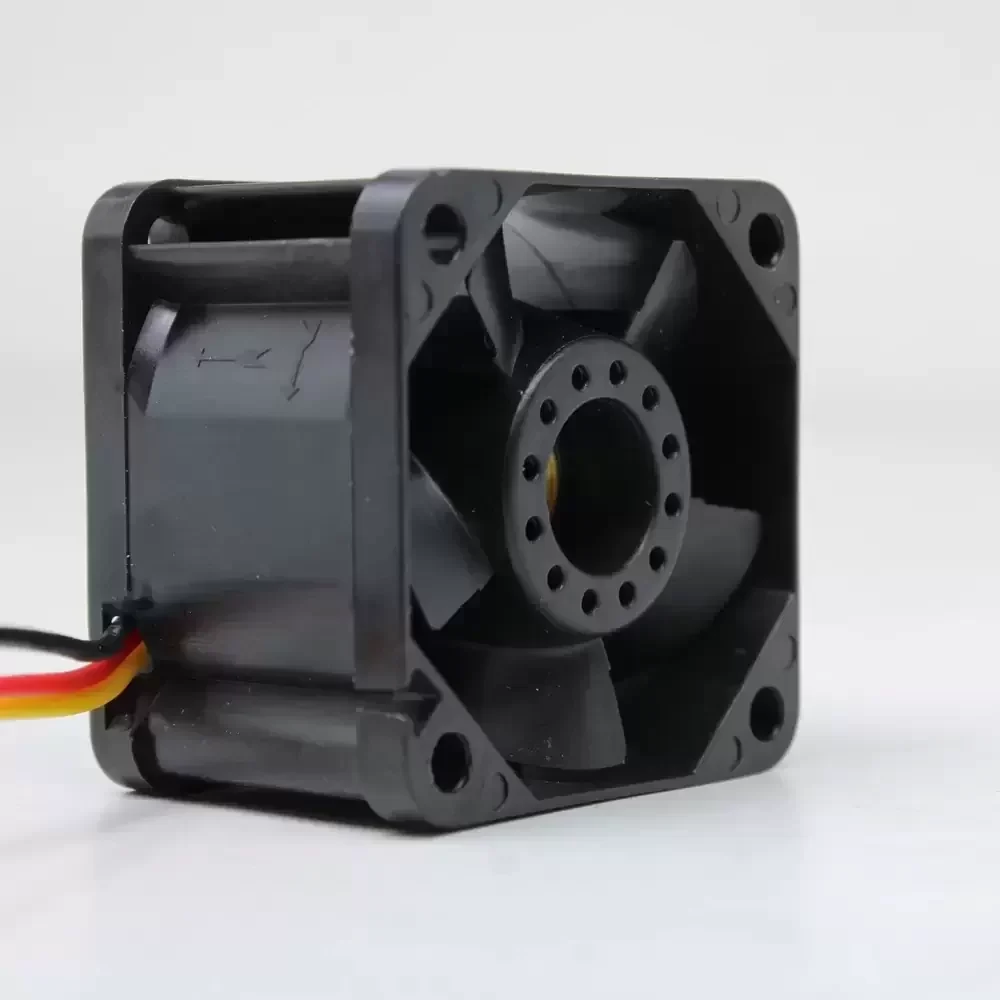

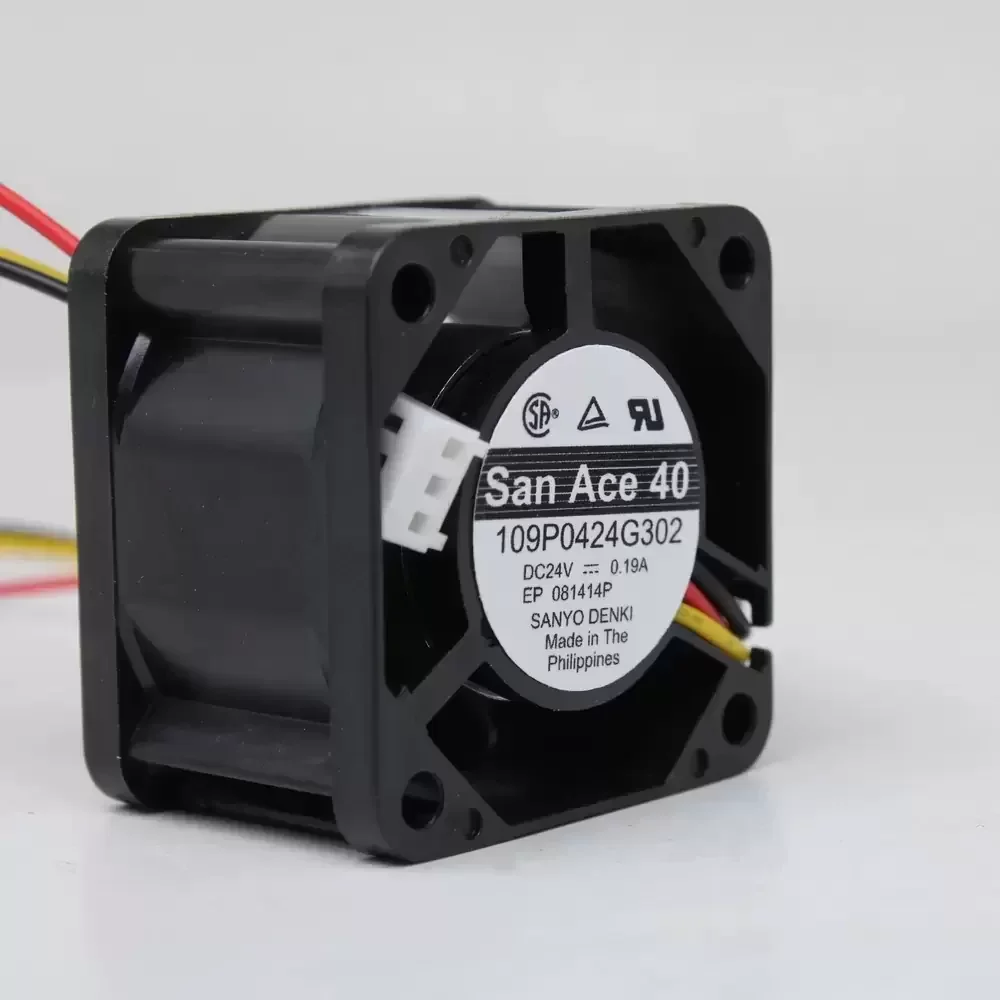

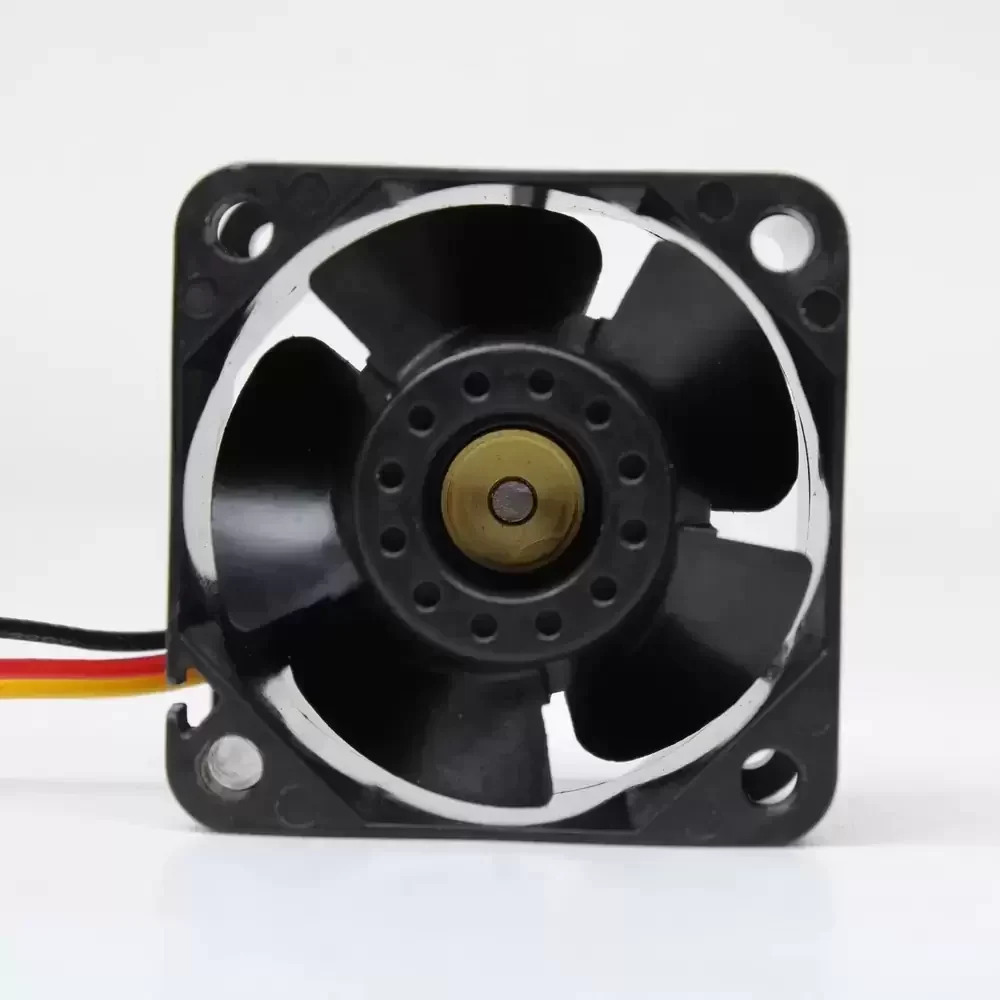

The Sanyo Denki 109P0424G302 is a high-performance DC axial fan engineered for critical thermal management applications within the renowned San Ace 40 series. This unit utilizes advanced aerodynamic blade geometry to minimize thermal impedance while maintaining exceptional structural rigidity under high-speed operation. Featuring a robust double ball bearing architecture, the fan ensures consistent rotational stability and extended longevity, even in demanding industrial environments. The motor assembly is optimized for energy efficiency, delivering a superior airflow-to-noise ratio, making it an ideal solution for compact electronic enclosures requiring reliable forced air cooling and sustained static pressure.
Model Number: 109P0424G302
Brand: Sanyo Denki
Series: San Ace 40 (9P Type)
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Operating Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.19 A
Rated Power: 4.56 W
Rated Speed: 12500 RPM
Max. Air Flow: 20.5 CFM (0.58 m³/min)
Max. Static Pressure: 19.4 mmH₂O (190 Pa / 0.76 inH₂O)
Noise Level: 44 dB(A)
Bearing Type: Double Ball Bearing
Dimensions: 40 x 40 x 28 mm
Weight: 53 g
Frame Material: Plastics (Flammability: UL94V-0)
Impeller Material: Plastics (Flammability: UL94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -30 to +70 °C
Life Expectancy: 40,000 Hours (at 60°C)
Protection: Current Blocking Function, Reverse Polarity Protection
Dielectric Strength: 50/60 Hz, 500 VAC, 1 minute
Termination: Lead Wires (Red +, Black -, Yellow Sensor)
The 109P0424G302 is specifically designed for high-density electronic assemblies where space is constrained but thermal loads are significant. Common deployment scenarios include 1U server rack cooling, telecommunications switching equipment, and industrial automation control panels. The compact form factor allows the 109P0424G302 to be seamlessly integrated into power supply units and medical instrumentation, ensuring critical components remain within safe operating temperature ranges through efficient airflow delivery.
