Description

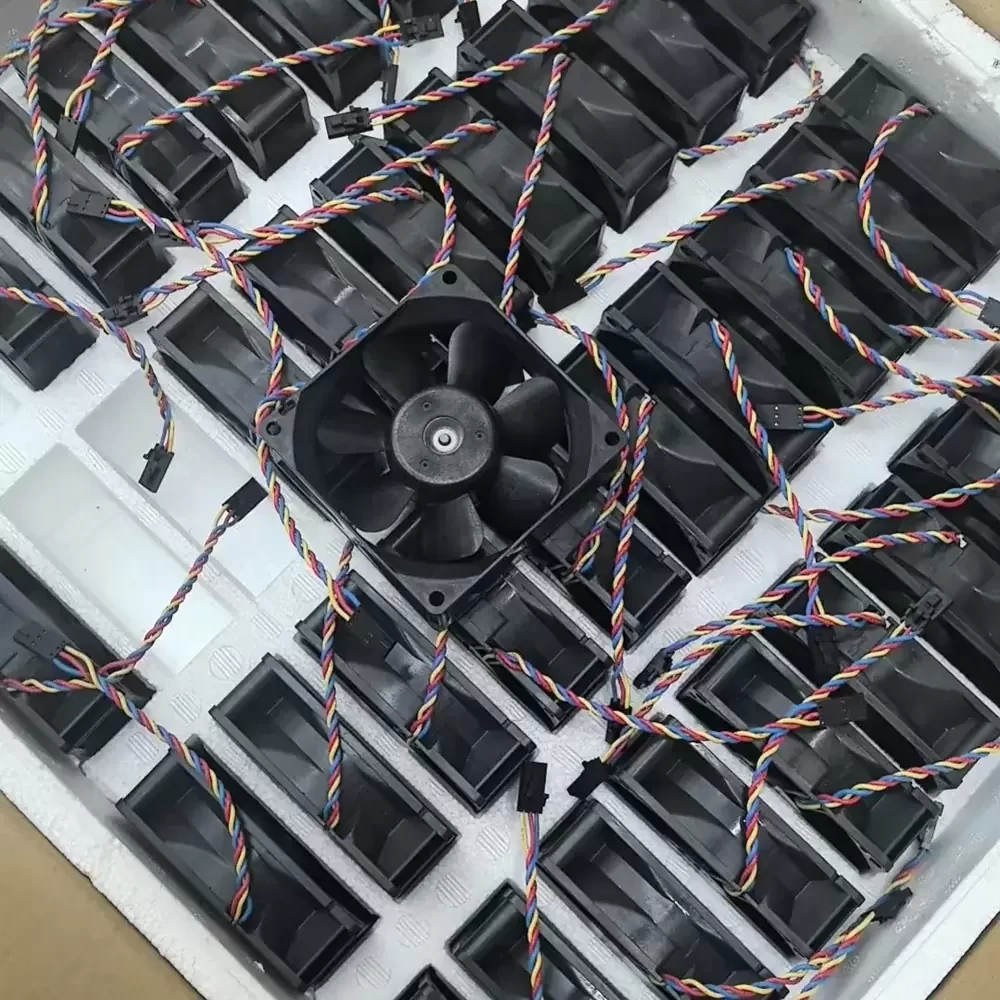

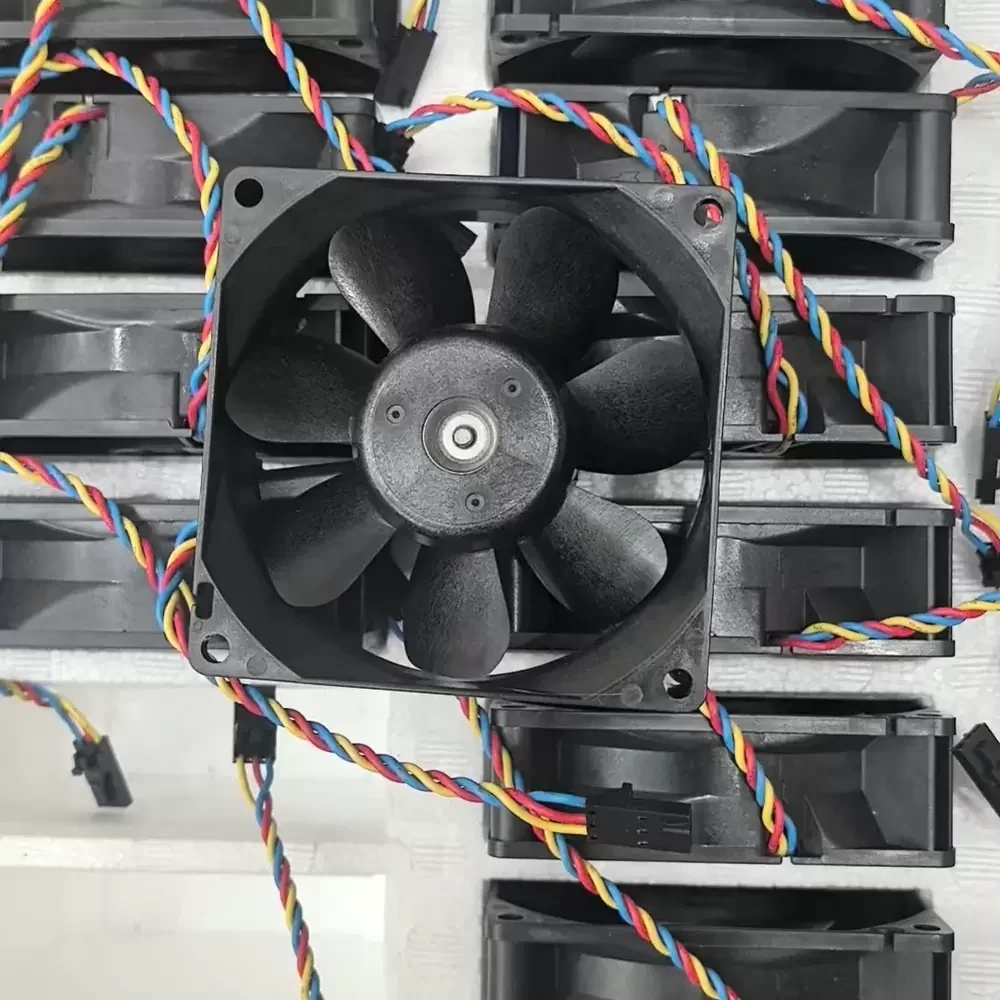

The Sanyo Denki 109R0812M401 is a precision-engineered Axial Fan designed for critical thermal management in industrial and server environments. Utilizing advanced DC motor technology coupled with a robust dual ball bearing architecture, this unit ensures minimal friction and extended operational longevity. The aerodynamic impeller design optimizes airflow efficiency while maintaining a low thermal impedance profile, making it suitable for continuous duty cycles. Its structural rigidity and flame-retardant housing comply with rigorous safety standards, providing reliable cooling performance where stability and durability are paramount.
Model Number: 109R0812M401
Brand: Sanyo Denki (San Ace)
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.09 A
Power Input: 1.08 W
Rated Speed: 2300 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 29.3 CFM (0.83 m³/min)
Max. Static Pressure: 2.4 mmH₂O (23.5 Pa / 0.09 inH₂O)
Dimensions: 80x80x25mm
Weight: 110 g
Life Expectancy: 60,000 Hours (at 40°C)
Noise Level: 23 dBA
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -30°C to +70°C
Termination: Lead Wires
Protection: Locked Rotor Protection, Reverse Polarity Protection
Safety Certifications: UL, CSA, TUV
This cooling solution is specifically engineered for high-reliability environments such as server racks, telecommunications equipment, and industrial automation systems. The 109R0812M401 excels in chassis cooling where consistent airflow is required to dissipate heat from sensitive electronic components. Additionally, the 109R0812M401 is frequently utilized in power supply units and medical instrumentation, ensuring optimal operating temperatures are maintained to prevent thermal throttling and hardware failure.
