Description

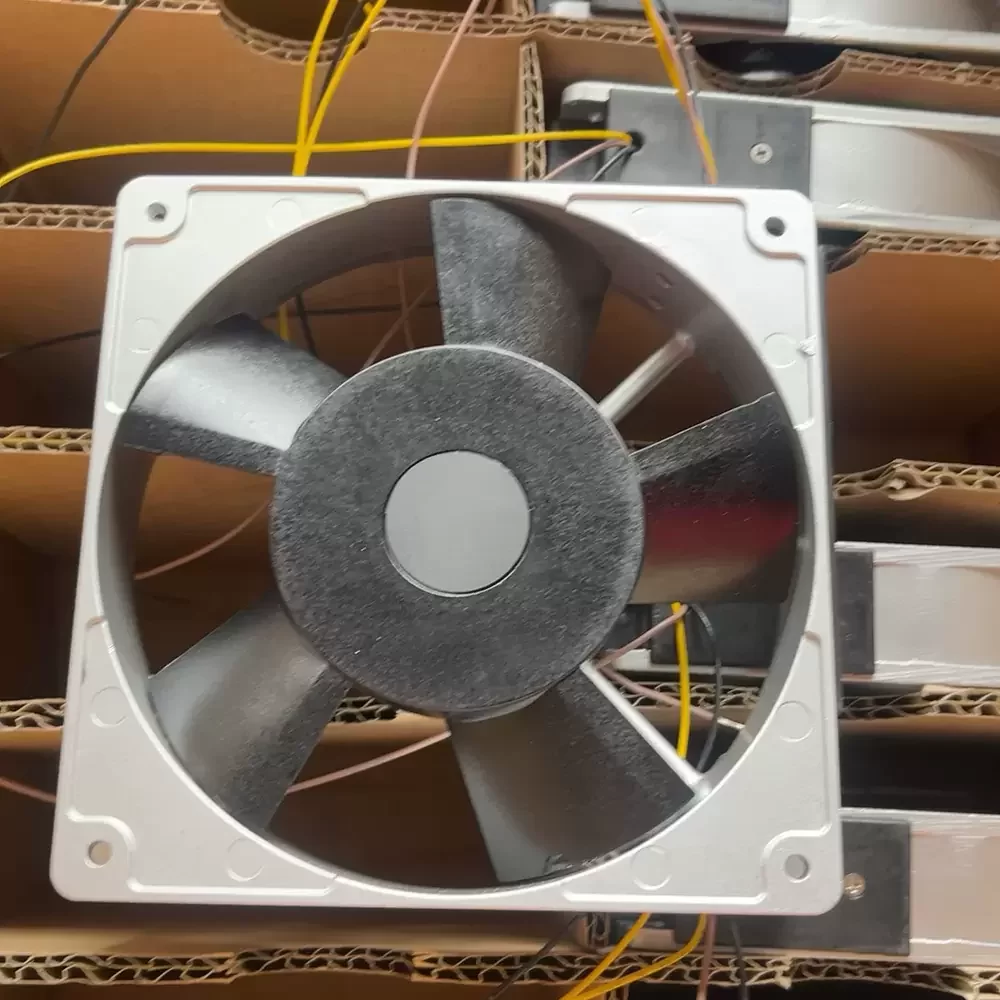

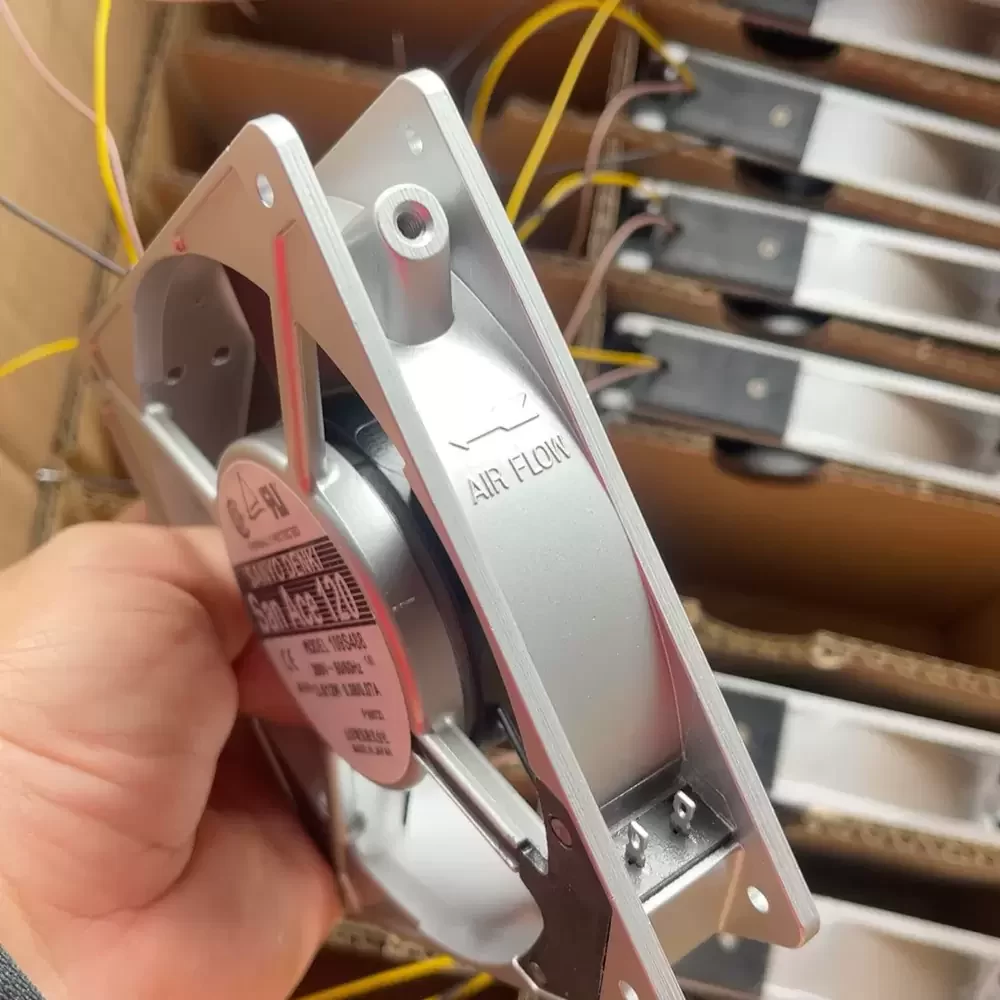

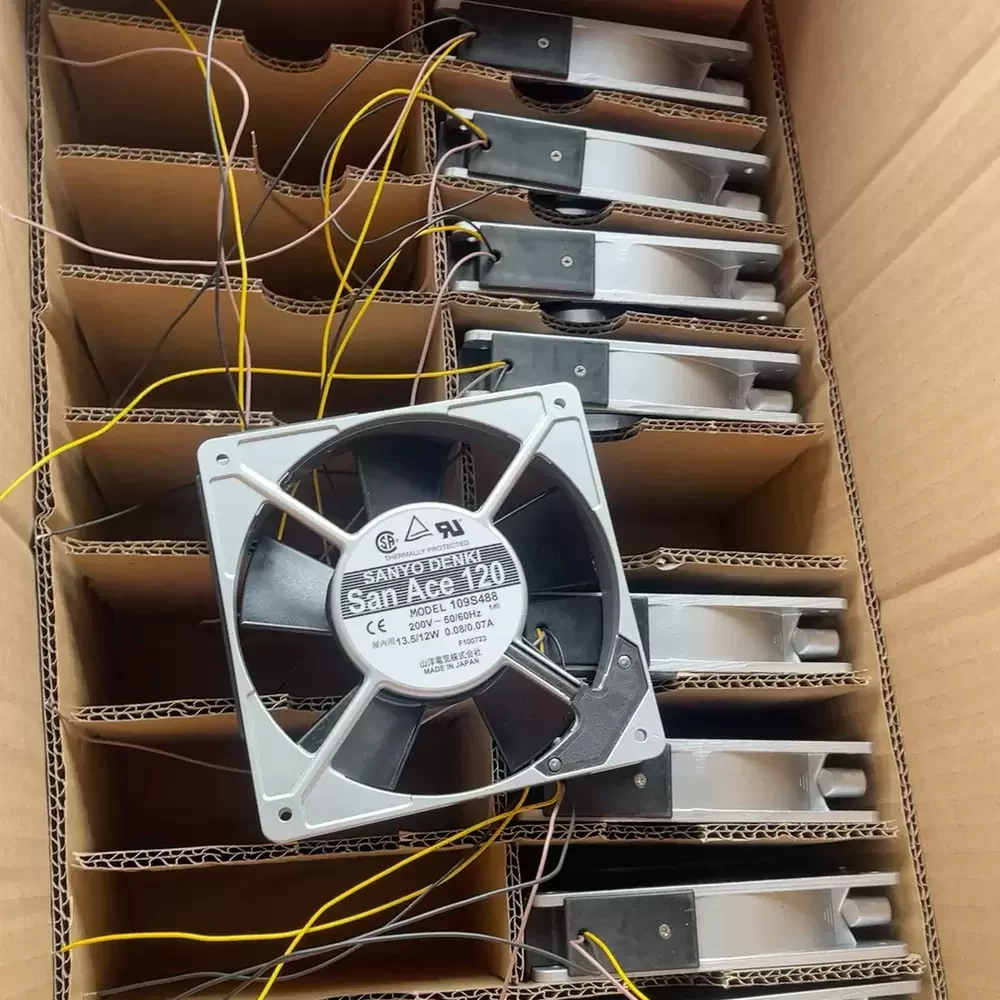

The Sanyo Denki 109S488 is a robust AC Axial Fan engineered for high-reliability industrial cooling applications. Featuring a durable aluminum die-cast frame and UL94V-0 rated plastic impeller, this unit ensures structural rigidity and thermal stability under continuous operation. The motor utilizes a shaded pole induction design paired with precision dual ball bearings to minimize friction and extend service life. Optimized for 200VAC systems, it delivers consistent airflow performance while maintaining manageable noise levels, making it an ideal solution for thermal management in demanding electrical cabinets and machinery where thermal impedance must be minimized.
Model Number: 109S488
Brand: Sanyo Denki
Series: San Ace 120
Product Type: AC Axial Fan
Rated Voltage: 200 VAC
Frequency: 50 / 60 Hz
Input Power: 13.5 W / 12 W
Rated Current: 0.08 A / 0.07 A
Rated Speed: 2700 / 3100 RPM
Max. Air Flow: 88.2 / 102 CFM (2.5 / 2.9 m³/min)
Max. Static Pressure: 6.4 / 7.4 mmH₂O (62.7 / 72.5 Pa)
Dimensions: 120 x 120 x 38 mm
Bearing Type: Dual Ball Bearing
Frame Material: Aluminum Die-cast
Impeller Material: Plastic (Flammability: UL94V-0)
Motor Protection: Impedance Protection
Dielectric Strength: 1500 VAC for 1 minute
Insulation Resistance: 10 MΩ min. at 500 VDC
Operating Temperature: -30°C to +60°C
Storage Temperature: -30°C to +70°C
Life Expectancy: 25,000 Hours (at 60°C)
Noise Level: 40 / 44 dB(A)
Weight: 550 g
Origin: Japan
The 109S488 is specifically designed for industrial environments requiring reliable AC cooling solutions. Common deployments include control panels, server racks, and power supply units where 200VAC power is readily available. The 109S488 ensures efficient heat dissipation in factory automation equipment and telecommunications infrastructure, preventing thermal throttling in critical components. Its robust construction also suits CNC machinery and heavy-duty instrumentation.
