Description

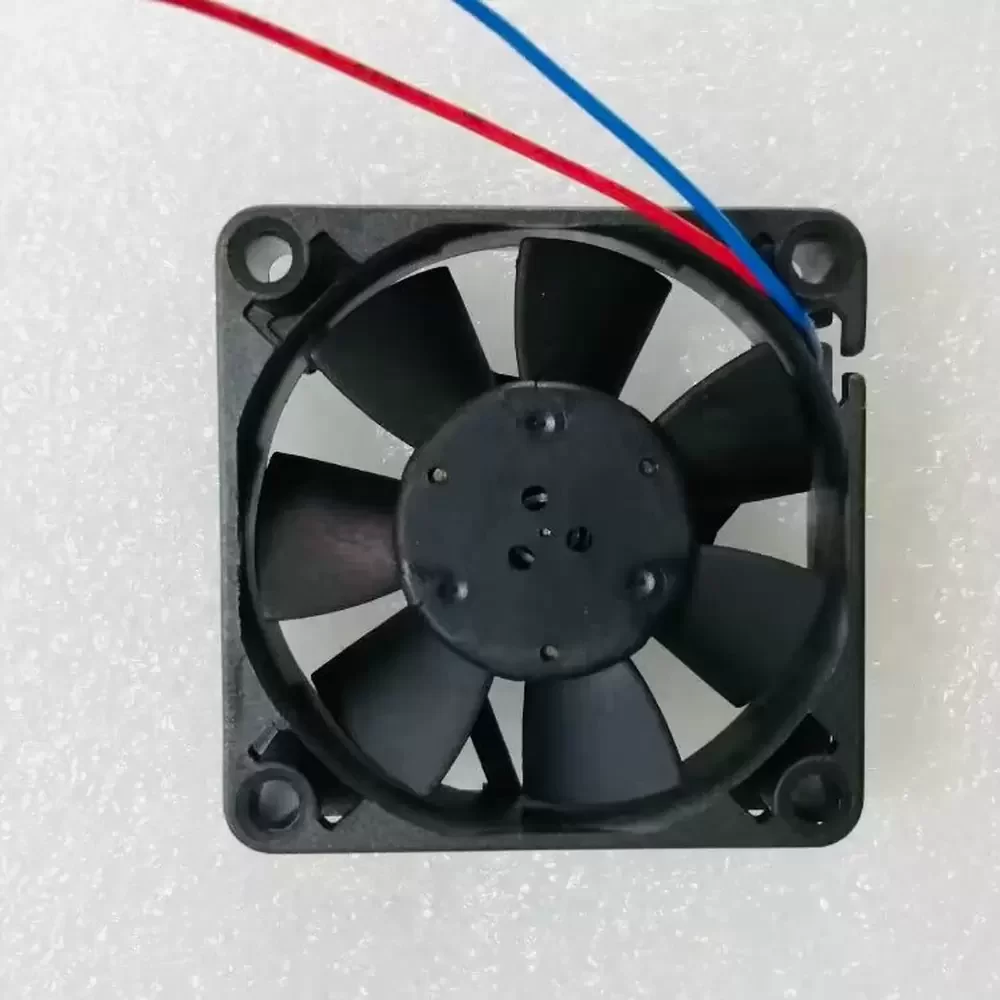

The ebmpapst 512F is a compact DC axial fan engineered for high-density electronic cooling applications requiring minimal acoustic resonance and reliable thermal management. Featuring a robust electronically commutated external rotor motor, this unit utilizes ebmpapst’s proprietary Sintec sleeve bearing system to ensure low-noise operation and optimized thermal impedance over extended lifecycles. The aerodynamic design of the impeller, constructed from glass-fiber reinforced PBT plastic, maximizes airflow efficiency while maintaining structural rigidity under thermal stress. This 12VDC model delivers consistent performance with a compact footprint, making it ideal for precision instrumentation and telecommunications equipment where space and noise are critical constraints.
Model Number: 512F
Brand: ebmpapst
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 10.0 – 14.0 VDC
Rated Current: 0.085 A
Power Consumption: 1.0 W
Rated Speed: 5000 RPM
Max. Air Flow: 11.8 CFM (20 m³/h)
Max. Static Pressure: 42 Pa (0.17 inH₂O)
Bearing Type: Sintec Sleeve Bearing
Noise Level: 30 dB(A)
Dimensions: 50 x 50 x 15 mm
Weight: 0.027 kg
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Operating Temperature: -20 to +65 °C
Life Expectancy: 50,000 Hours (40 °C)
Termination: 2-Wire Leads (AWG 28)
Motor Protection: Impedance Protected
Direction of Rotation: Counter-clockwise (viewed toward rotor)
Airflow Direction: Exhaust over struts
The 512F is specifically calibrated for thermal management in space-constrained environments such as compact server racks, network switches, and telecommunications cabinets. Its low acoustic profile makes the 512F suitable for medical diagnostic devices and office-based automation systems where noise suppression is critical. Additionally, the 512F serves as an effective cooling solution for industrial control units and embedded power supplies requiring consistent airflow.
