Description

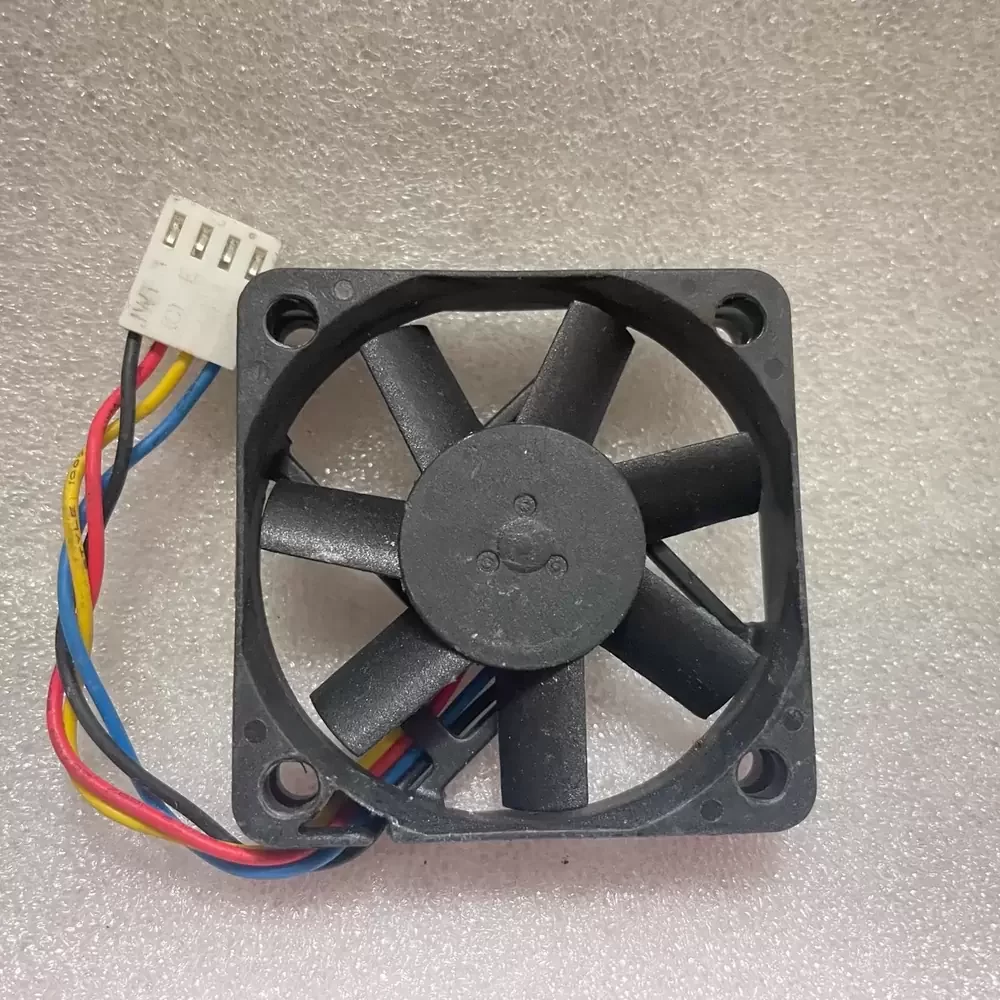

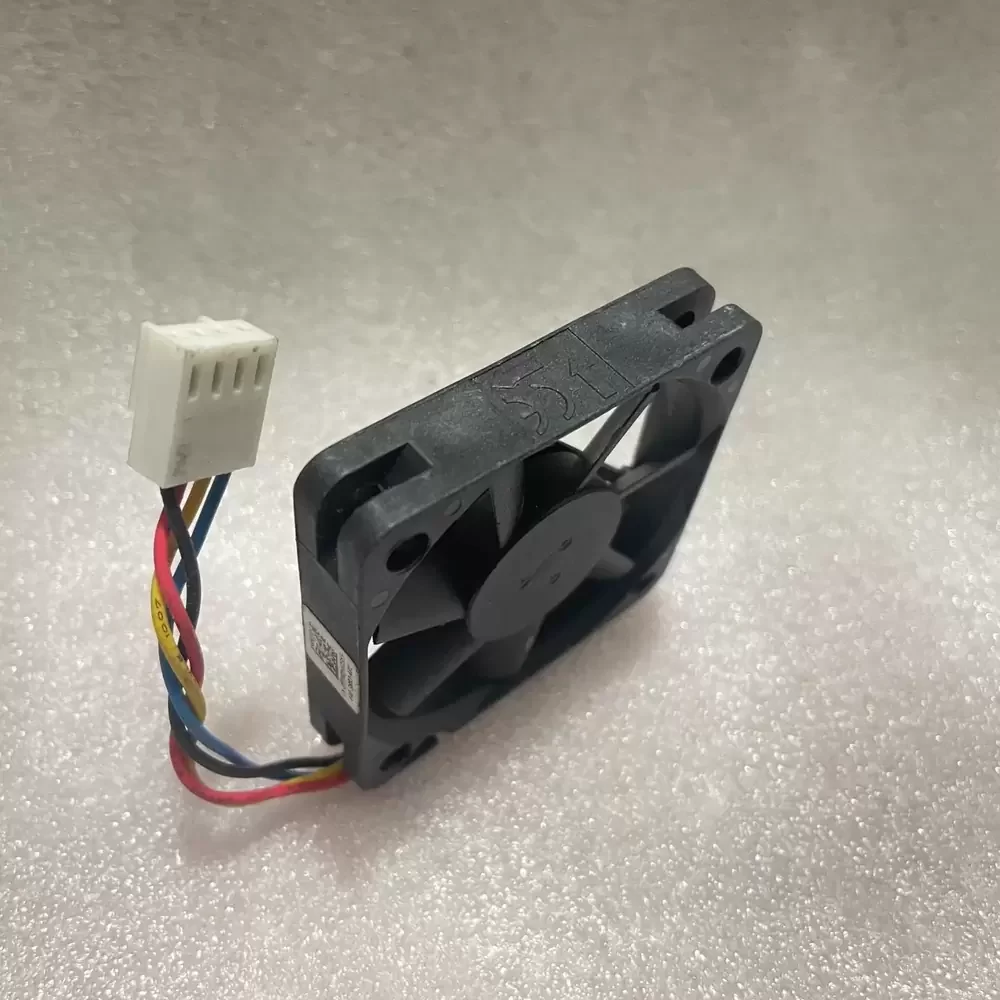

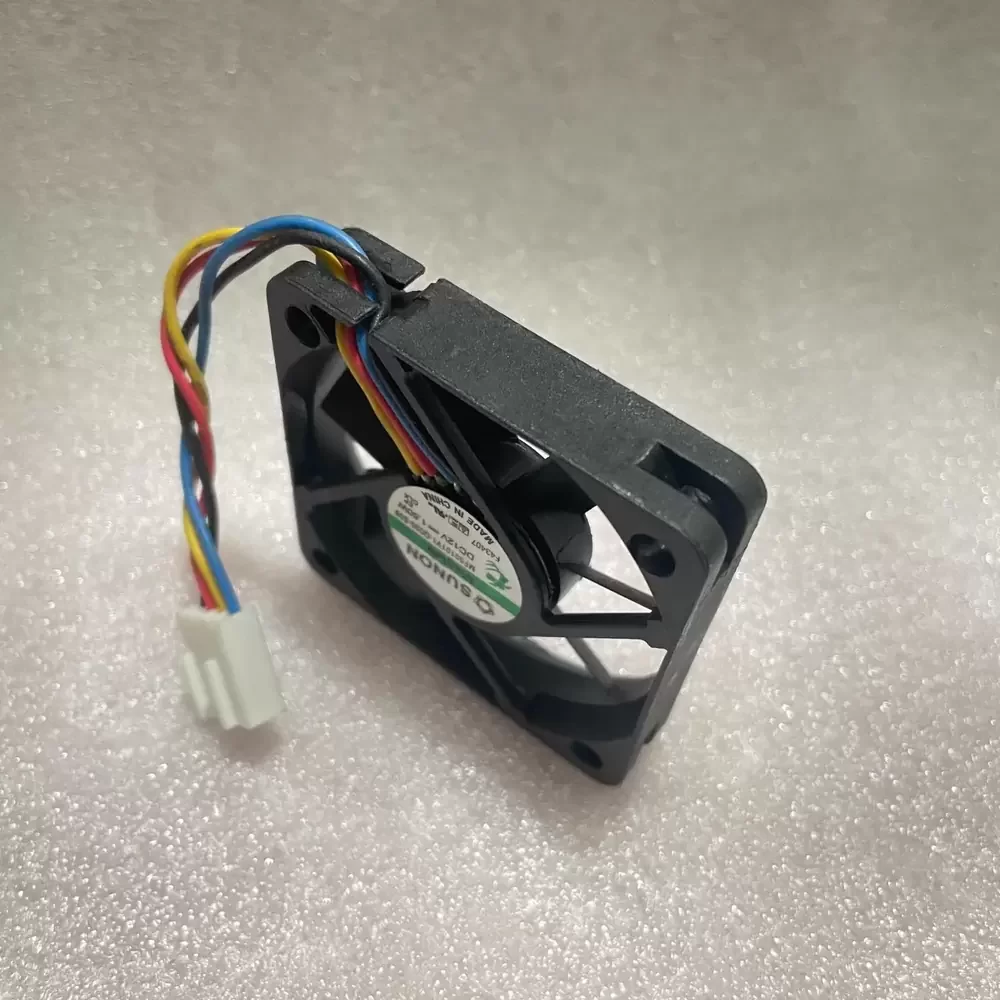

The SUNON MF50101V1-Q030-S99 is a precision-engineered DC Axial Fan designed for high-density electronic cooling applications. Utilizing SUNON’s proprietary MagLev (Magnetic Levitation) Vapo bearing technology, this unit eliminates physical contact between the shaft and bearing, significantly reducing friction, noise, and extending operational lifespan. The 50mm thermoplastic frame integrates advanced aerodynamic blade geometry to optimize airflow delivery while maintaining exceptional structural rigidity. Featuring a 4-wire configuration, this model supports Pulse Width Modulation (PWM) for precise speed control, ensuring optimal thermal impedance management in variable load environments.
Model Number: MF50101V1-Q030-S99
Brand: SUNON
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 4.5 – 13.8 VDC
Power Input: 1.50W
Rated Current: 0.125 A
Rated Speed: 5800 RPM
Max. Air Flow: 14.0 CFM (23.8 m³/h)
Max. Static Pressure: 0.16 inH₂O (4.06 mmH₂O)
Noise Level: 28.0 dB(A)
Bearing Type: MagLev Vapo Bearing
Dimensions: 50 x 50 x 10 mm
Termination: 4-Wire (Lead Wire)
Speed Control: PWM (Pulse Width Modulation)
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 60,000 Hours at 40°C
Weight: 20.0 g
Ingress Protection: IP5X (Dust Protected)
Safety Certifications: UL, CUR, TUV, CE
This compact cooling solution is specifically engineered for space-constrained industrial and IT environments. The MF50101V1-Q030-S99 is widely utilized in 1U server racks, network switches, and embedded industrial automation systems where reliability is paramount. Additionally, the MF50101V1-Q030-S99 serves as a critical component in medical instrumentation and telecommunications equipment, providing consistent thermal regulation for sensitive electronic components.
