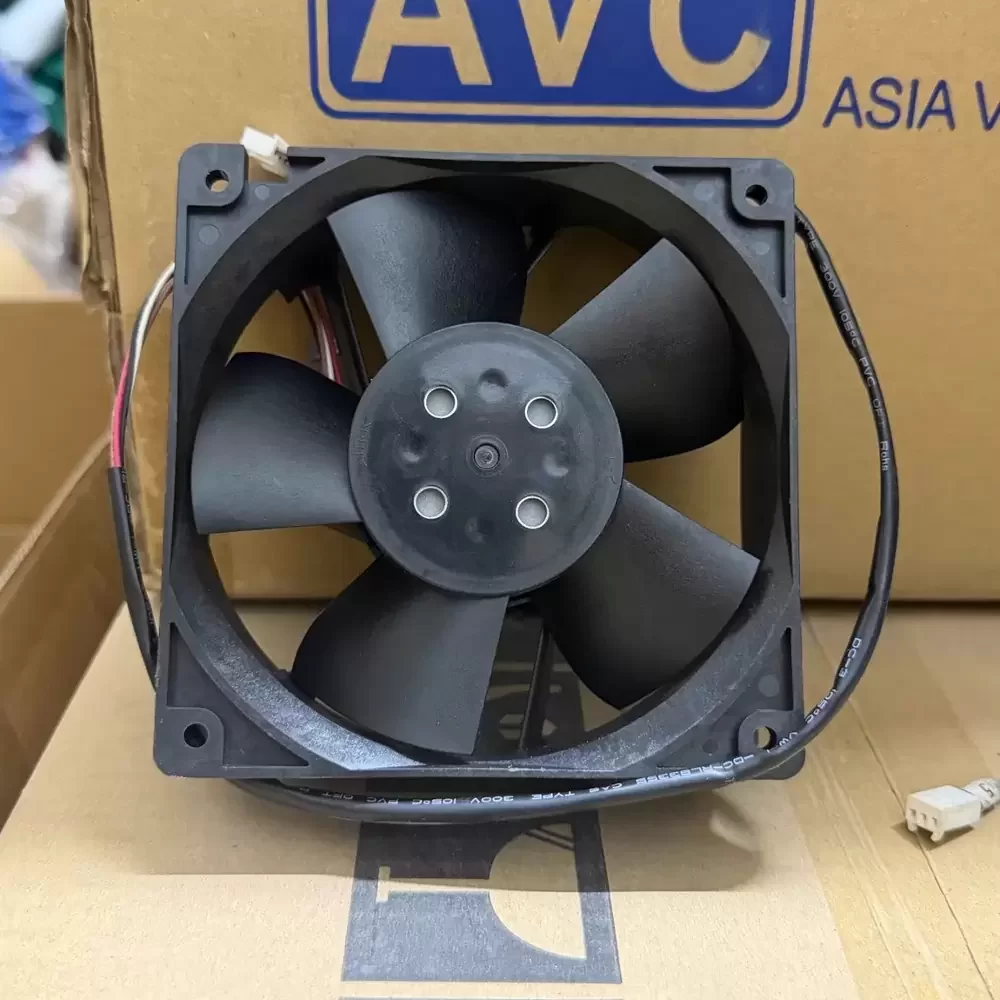

12038VA-48R-GM-01 NMB 48VDC 0.90A 120x120x38mm Axial Fan

Description

The NMB 12038VA-48R-GM-01 is a high-performance DC axial cooling fan featuring a 120 x 120 x 38 mm frame constructed from UL 94V-0 rated black plastic. Operating at a nominal 48 VDC, this unit draws 0.90 A to deliver a maximum airflow of 243.6 CFM and a static pressure of 1.49 inH2O. The internal mechanism utilizes a dual ball bearing system to support a rotational speed of 6400 RPM while maintaining an operational life expectancy of 60,000 hours at 60 °C. The fan is equipped with a 3-wire interface providing power, ground, and a tachometer signal for precise speed monitoring, and includes integrated auto-restart and polarity protection.

12038VA-48R-GM-01 Specifications
Model Number: 12038VA-48R-GM-01
Brand: NMB Technologies
Product Category: DC Axial Fan
Rated Voltage: 48 VDC
Operating Voltage Range: 40.0 VDC to 52.8 VDC
Rated Current: 0.90 A
Rated Power: 43.2 W
Rated Speed: 6400 RPM
Maximum Airflow: 243.6 CFM
Maximum Static Pressure: 1.49 inH2O
Noise Level: 66 dBA
Dimensions: 120 x 120 x 38 mm
Bearing Type: Dual Ball Bearing
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Termination: 3-Wire Leads (Red, Black, White)
Signal Output: Tachometer / Speed Sensor
Ingress Protection: IP68
Operating Temperature: -10 °C to +70 °C
Storage Temperature: -40 °C to +70 °C
Life Expectancy: 60,000 hours at 60 °C
Weight: 370 g
Protection Features: Auto Restart, Polarity Protection

12038VA-48R-GM-01 Applications
Primary applications include integration into high-density server racks, industrial power supply units, and telecommunications base stations. Deployed within CNC machine control cabinets, commercial inverter systems, and network storage enclosures to manage critical thermal loads.
