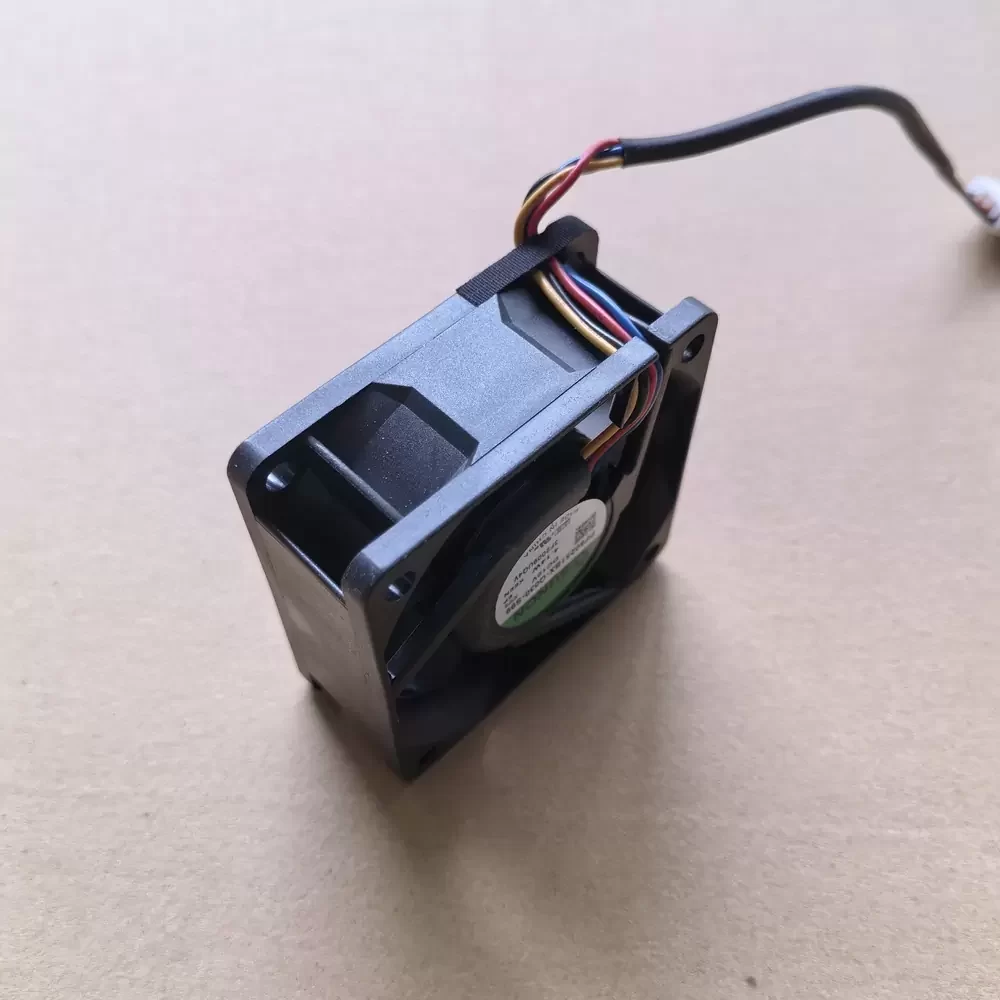

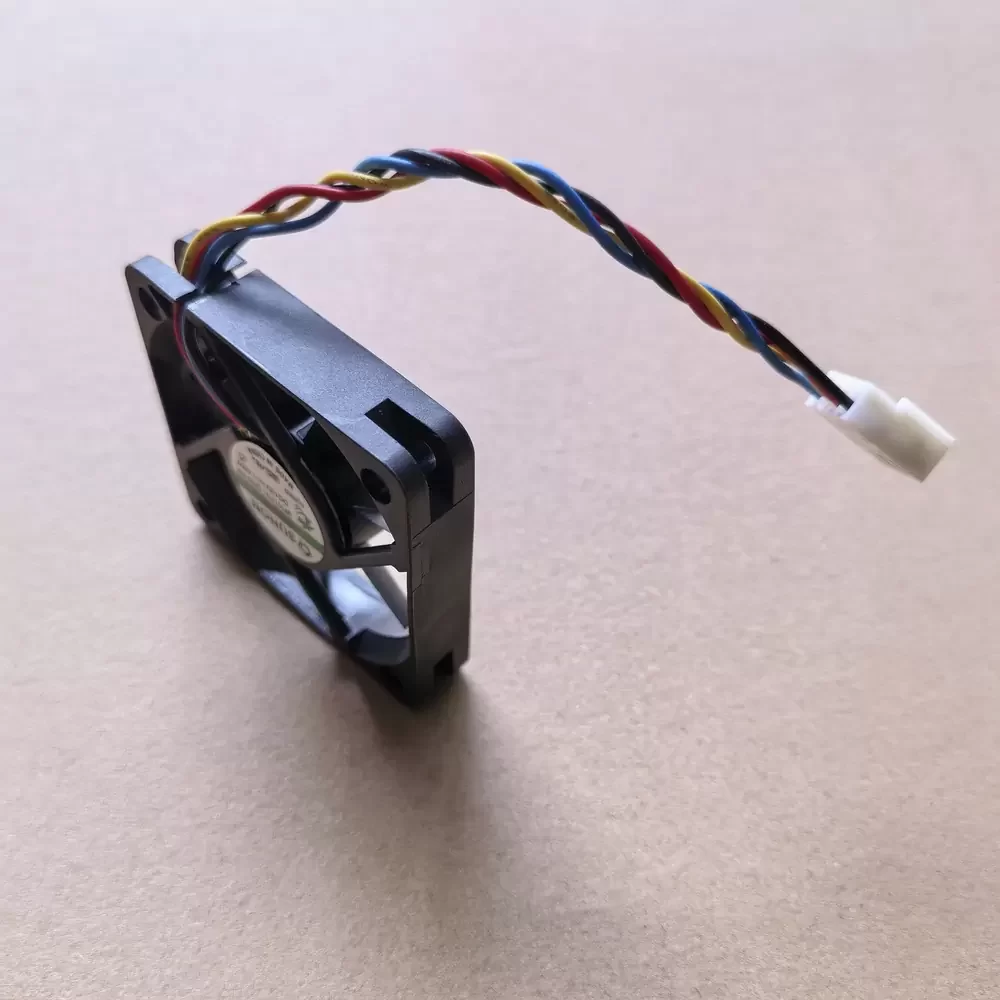

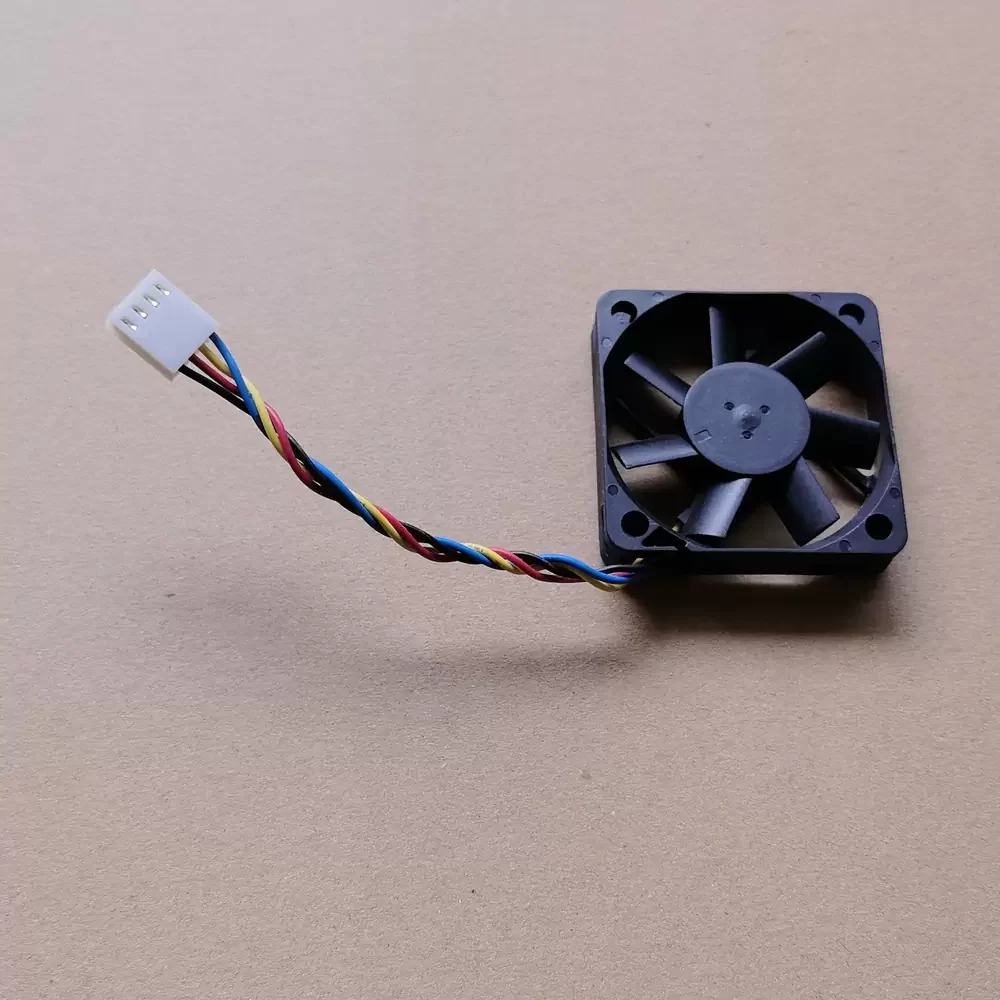

PF60251BX-Q030-S99 SUNON 12VDC 4.14W 60x60x25mm Axial Fan

Description

The SUNON PF60251BX-Q030-S99 is a high-performance DC axial fan measuring 60 x 60 x 25 mm with a nominal operating voltage of 12 VDC and a power consumption of 4.14 W. This unit features a precision dual ball bearing system and a 4-pole brushless DC motor housed within a UL 94V-0 rated thermoplastic frame and impeller. The fan is equipped with a 4-wire interface supporting Pulse Width Modulation (PWM) for dynamic speed control and a tachometer output for real-time RPM monitoring. Its internal mechanism is engineered for high-pressure output, reaching a rotational speed of approximately 8300 RPM to deliver an airflow of 40.0 CFM and a static pressure of 0.66 inch-H2O. The structural design includes an auto-restart function and is optimized for continuous operation in environments ranging from -10 to +70 °C.

PF60251BX-Q030-S99 Specifications
Model Number: PF60251BX-Q030-S99
Brand: SUNON
Dimensions: 60 x 60 x 25 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 6.0 to 13.8 VDC
Rated Current: 0.345 A
Rated Power: 4.14 W
Rated Speed: 8300 RPM
Airflow: 40.0 CFM
Static Pressure: 0.66 inch-H2O
Noise Level: 46.0 dBA
Bearing Type: Dual Ball Bearing
Interface: 4-wire (Red: +, Black: -, Yellow: FG, Blue: PWM)
Motor Design: 4-pole Brushless DC Motor
Frame Material: Thermoplastic PBT (UL 94V-0)
Impeller Material: Thermoplastic PBT (UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Insulation Resistance: 10M ohm at 500 VDC
Dielectric Strength: 500 VAC for 1 minute
Weight: 40.5 g
Safety Approvals: UL, TUV, CE
Features: PWM Speed Control, Tachometer (FG) Signal, Auto Restart

PF60251BX-Q030-S99 Applications
Primary applications include integration into 1U server chassis, network switch enclosures, and industrial power supply cooling systems. Deployed within telecommunications base stations, medical diagnostic equipment, and high-density electronic racks requiring precise thermal management via PWM control.
