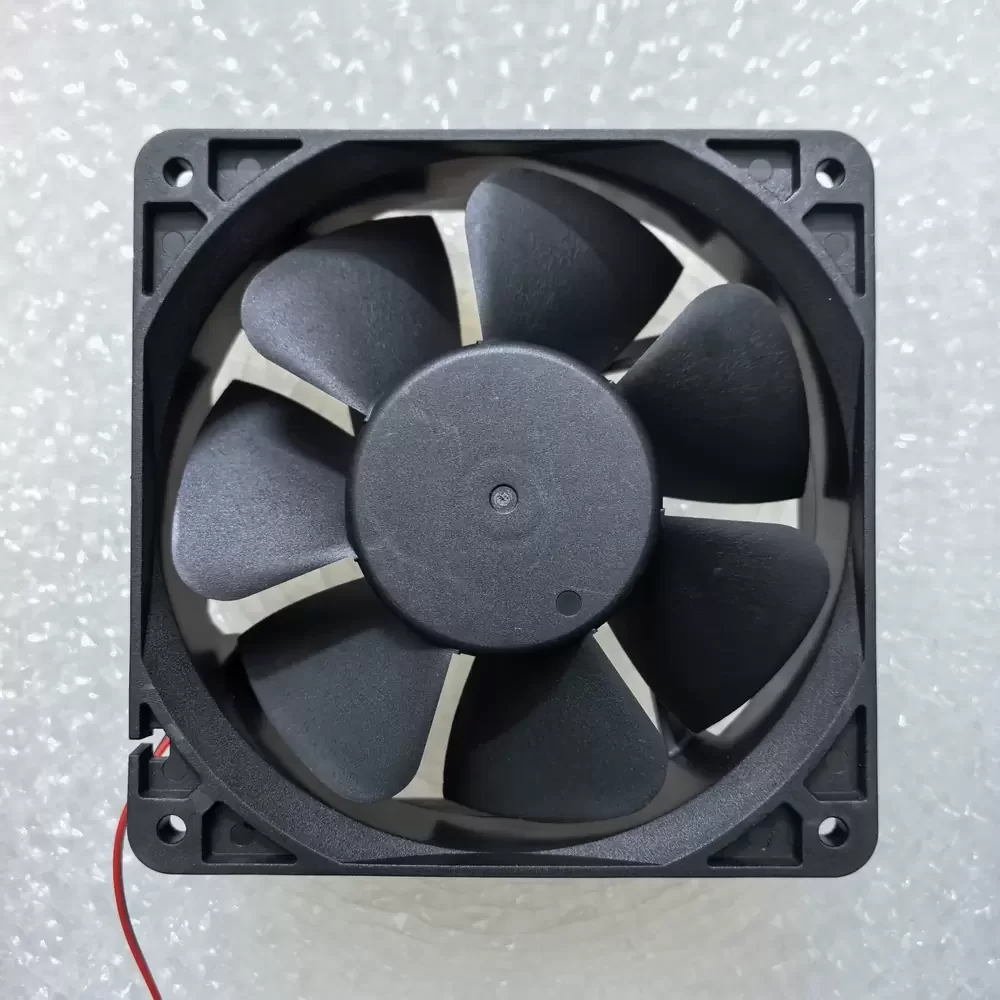

G12038HD2SL Delixi 24VDC 0.6A 120x120x38mm Axial Fan

Description

Delixi G12038HD2SL is a high-performance DC axial fan measuring 120 x 120 x 38 mm, operating at a nominal 24 VDC with a current draw of 0.6 A. This unit features a robust dual ball bearing system designed for extended operational life and high-speed rotation between 2600 and 3000 RPM. The frame and impeller are constructed from UL 94V-0 rated PBT thermoplastic, ensuring structural integrity under thermal stress. Electrical connection is established via a 2-wire lead interface, facilitating direct integration into DC power circuits for high-static pressure cooling requirements.

G12038HD2SL Specifications
Model Number: G12038HD2SL
Brand: Delixi
Category: DC Axial Fan
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 14.0 to 27.6 VDC
Rated Current: 0.6 A
Rated Power: 14.4 W
Rotational Speed: 2600 to 3000 RPM
Bearing Type: Dual Ball Bearing
Frame Material: PBT Thermoplastic (UL 94V-0)
Impeller Material: PBT Thermoplastic (UL 94V-0)
Termination: 2-Wire Lead Wire
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Insulation Resistance: 10M Ohm at 500 VDC
Dielectric Strength: 5 mA Max at 500 VAC for 1 minute
Weight: 290 g

G12038HD2SL Applications
Primary applications include integration into industrial frequency inverters, CNC machine tool control cabinets, server rack thermal management systems, and high-capacity uninterruptible power supplies. Deployed within telecommunications base stations and automated welding equipment for critical component heat dissipation.
