Description

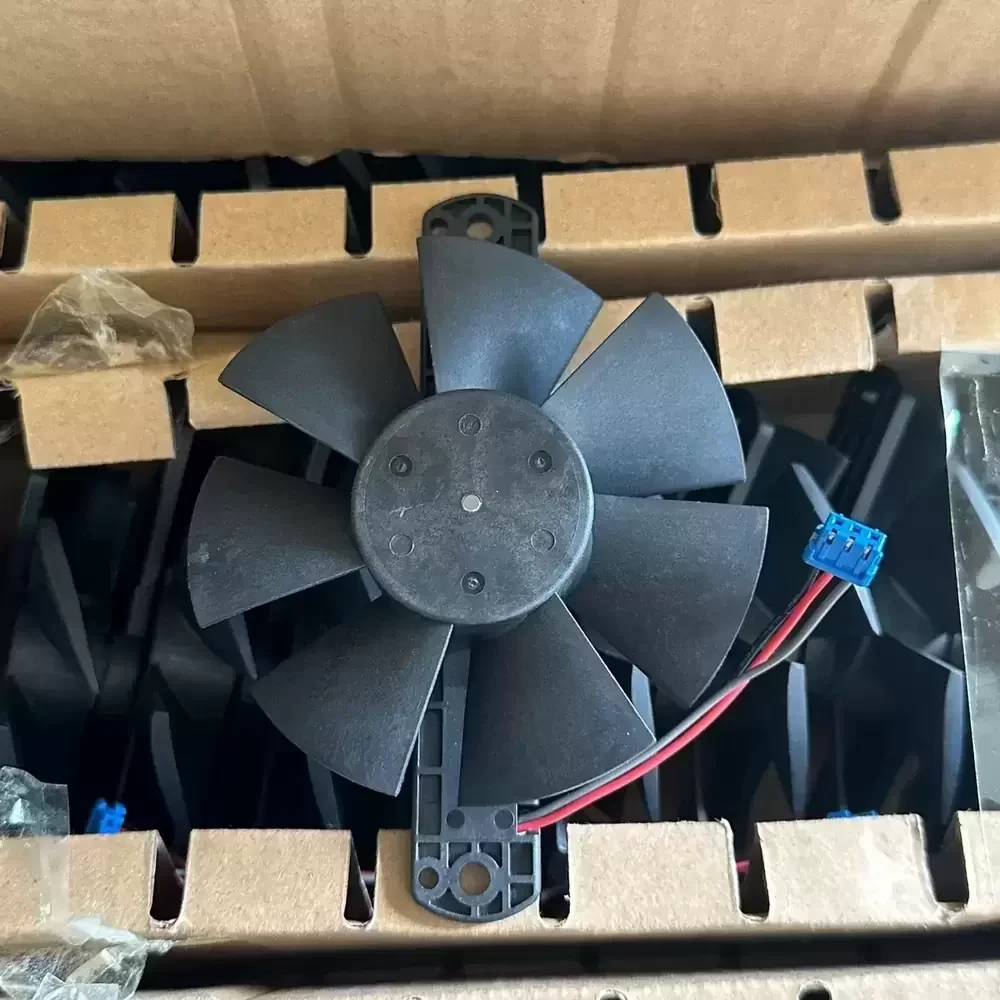

The Nidec D09T-20BS2 is a precision-engineered DC axial fan designed for critical thermal management applications requiring consistent airflow and structural rigidity. Utilizing advanced brushless DC motor technology, this unit optimizes aerodynamic efficiency to minimize thermal impedance within high-density electronic enclosures. The construction features a durable frame and balanced impeller system, ensuring low vibration and extended operational service life. Engineered for industrial reliability, the D09T-20BS2 maintains stable performance parameters under continuous load, making it an essential component for maintaining optimal operating temperatures in sensitive hardware environments.
Model Number: D09T-20BS2
Brand: Nidec Corporation
Product Type: Axial Cooling Fan
Rated Voltage: 20VDC
Voltage Range: 14.0 – 22.0 VDC
Rated Current: 0.12 A
Power Consumption: 2.40 W
Rated Speed: 2800 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 48.5 CFM (82.4 m³/h / 1.37 m³/min)
Max. Static Pressure: 3.8 mmH₂O (37.2 Pa / 0.15 inH₂O)
Dimensions: 90 x 90 x 25 mm
Weight: 95 g
Life Expectancy: 60,000 Hours at 40°C
Noise Level: 34.0 dB(A)
Housing Material: Polybutylene Terephthalate (PBT) (UL94V-0)
Impeller Material: Polybutylene Terephthalate (PBT) (UL94V-0)
Termination: 2-Wire Lead
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP40
Insulation Resistance: 10M Ohm at 500VDC
Dielectric Strength: 500VAC for 1 Minute
Motor Protection: Impedance Protected; Reverse Polarity Protection
Mounting Orientation: Any
Certifications: UL, CSA, TUV, RoHS Compliant
This cooling solution is widely utilized in industrial automation systems, server rack cooling modules, and precision medical instrumentation where reliable heat dissipation is mandatory. The D09T-20BS2 excels in telecommunications equipment and power supply units, providing the necessary airflow to prevent thermal throttling. Integrators frequently select the D09T-20BS2 for CNC machinery control panels and network switchgear, ensuring component longevity through effective thermal regulation.
