Description

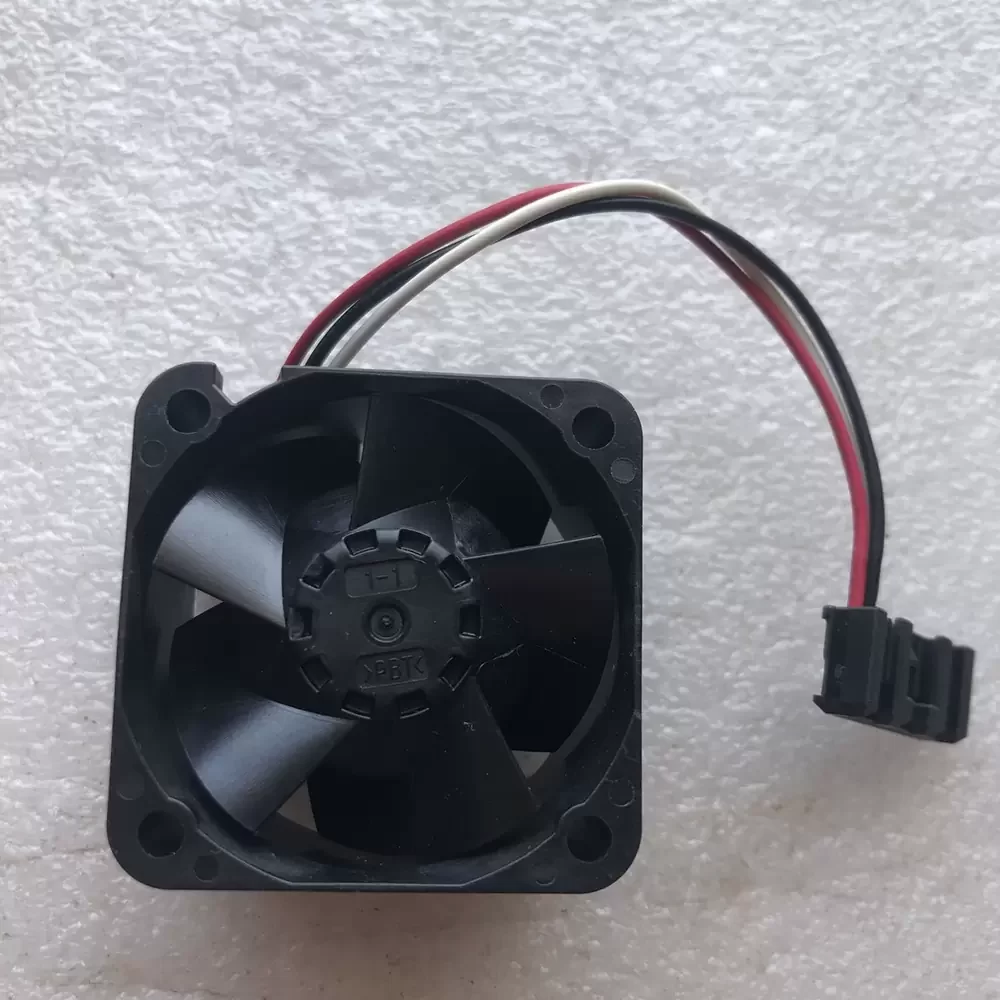

The NMB-MAT 1611VL-05W-B49-BE2 is a high-precision DC Axial Fan engineered for critical thermal management in industrial automation systems. Utilizing a brushless DC motor with advanced commutation logic, this unit minimizes thermal impedance through optimized blade geometry and structural rigidity. The dual ball bearing architecture ensures long-term reliability and stable rotational dynamics under continuous duty cycles. Specifically designed as a replacement for Fanuc A90L-0001-0580#A, it features a robust housing that maintains dimensional stability in high-vibration environments, providing consistent airflow for sensitive electronic components.
Model Number: 1611VL-05W-B49-BE2
Brand: NMB-MAT
Product Type: Axial Fan
Rated Voltage: 24VDC
Voltage Range: 10.0 – 27.6 VDC
Rated Current: 0.07A
Power: 1.68W
Rated Speed: 8000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 11.3 CFM (0.32 m³/min)
Max. Static Pressure: 88.2 Pa (0.35 inH₂O)
Dimensions: 40x40x28mm
Weight: 45g
Life Expectancy: 70,000 Hours at 40C
Speed Control: Tachometer (3rd Wire)
Housing Material: Plastic (Black) UL94V-0
Blade Material: Plastic (Black) UL94V-0
Termination: 3-Lead Wires
Operating Temperature: -10C to +70C
Storage Temperature: -40C to +70C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
OEM Cross Reference: Fanuc A90L-0001-0580#A
Certifications: UL, CSA, VDE, CE
This axial fan is primarily utilized in CNC machinery and industrial robotics, specifically serving as a dedicated cooling component for Fanuc drive systems and control units. The 1611VL-05W-B49-BE2 provides essential heat dissipation within high-density server racks and telecommunications enclosures where space is constrained. Due to its precise engineering, the 1611VL-05W-B49-BE2 is the standard choice for maintaining the operational integrity of medical diagnostic equipment and automated manufacturing modules.
