Description

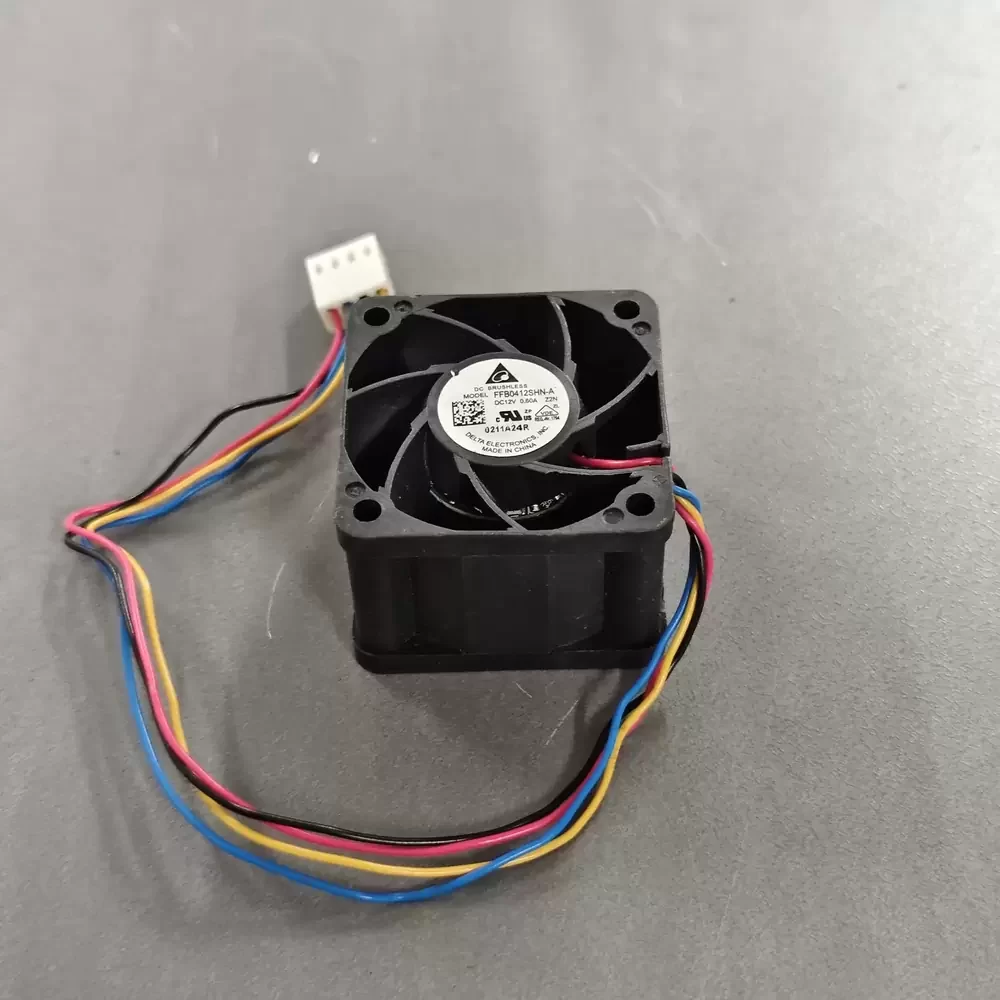

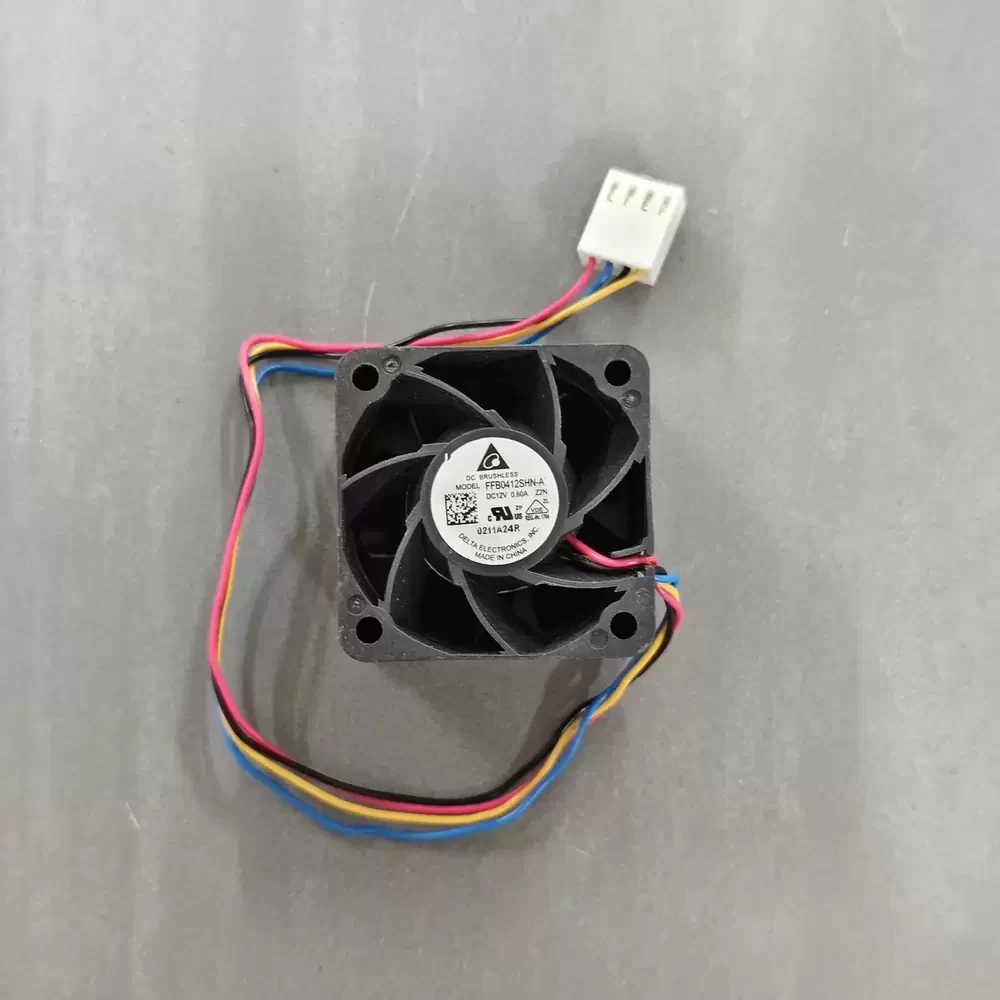

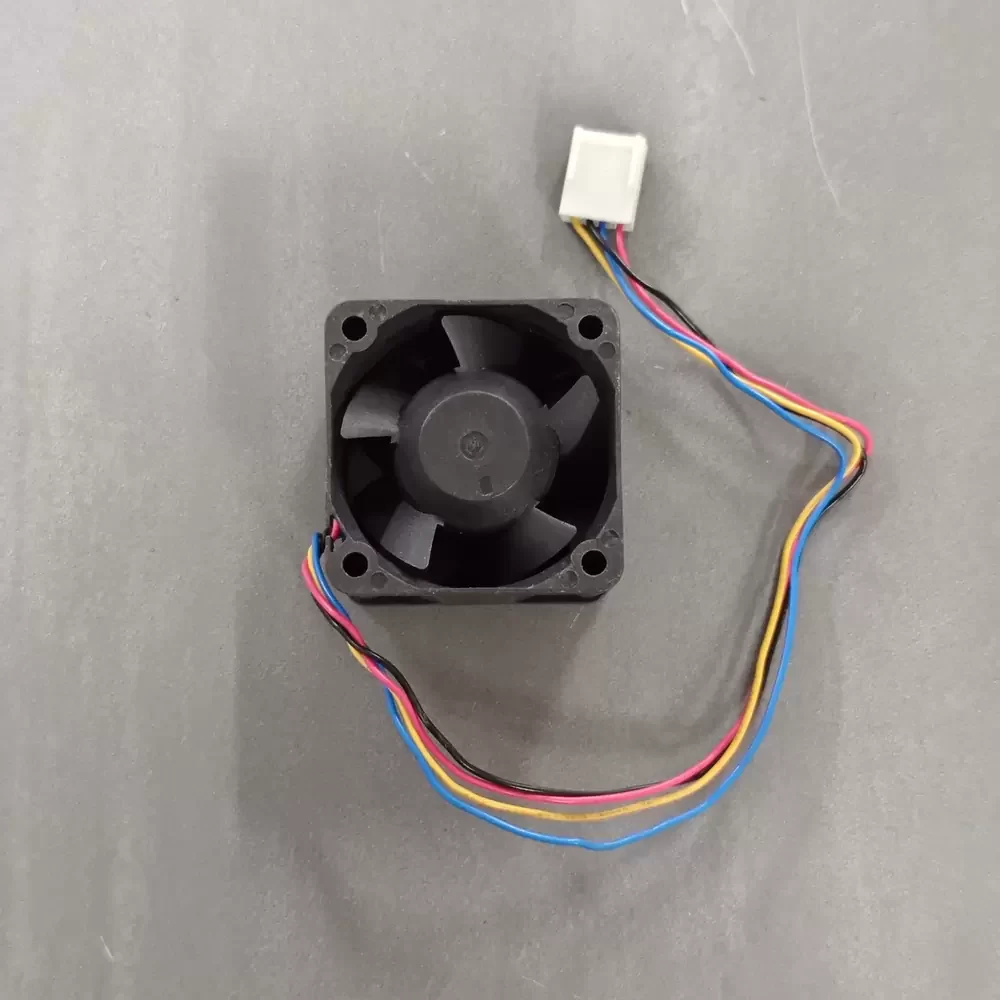

The Delta FFB0412SHN-AZ2N is a high-density DC axial fan engineered for mission-critical thermal management in space-constrained environments. Utilizing a sophisticated dual ball bearing architecture, this unit minimizes mechanical friction and thermal impedance, ensuring prolonged operational longevity under continuous duty cycles. The aerodynamic impeller design is optimized for high static pressure, overcoming the resistance of densely packed components. Its structural rigidity is reinforced by UL94V-0 plastic housing, providing a robust platform for high-velocity airflow. The integrated 4-wire interface facilitates precise speed modulation and real-time system monitoring, making it an essential component for advanced electronic cooling.
Model Number: FFB0412SHN-AZ2N
Brand: Delta Electronics
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 0.60A
Power: 7.2W
Rated Speed: 13000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 24.01 CFM (0.680 m³/min)
Max. Static Pressure: 27.29 mmH₂O (1.074 inH₂O)
Dimensions: 40x40x28mm
Weight: 50g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 54.5 dB(A)
Speed Control: PWM Control
Output Signal: Tachometer / Frequency Generator
Termination: 4-Lead Wires
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Insulation Class: Class A
The Delta FFB0412SHN-AZ2N is specifically designed for high-performance computing environments where compact dimensions and high static pressure are required. This FFB0412SHN-AZ2N is frequently deployed in 1U server racks, network switches, and telecommunications equipment to prevent thermal throttling. Additionally, the FFB0412SHN-AZ2N serves as a reliable cooling solution for industrial power supplies and medical diagnostic machinery requiring consistent airflow in restricted internal volumes.
