Description

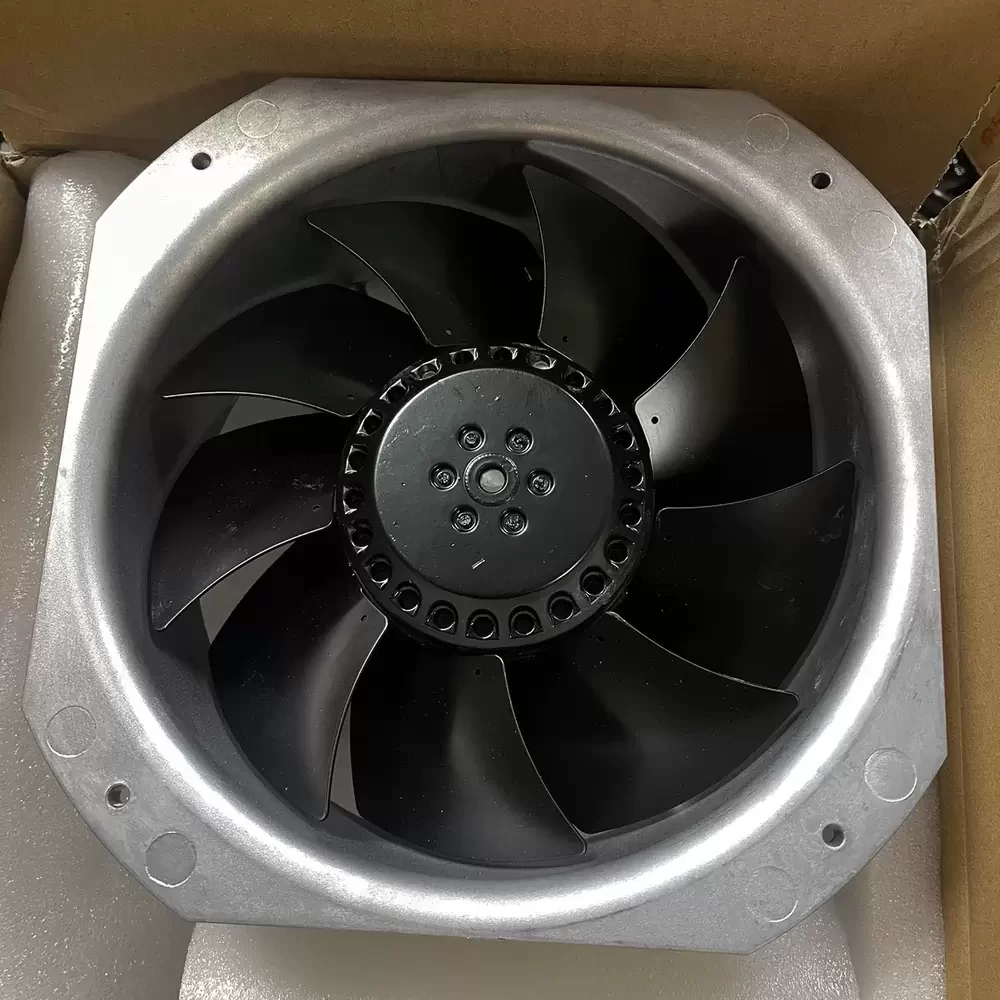

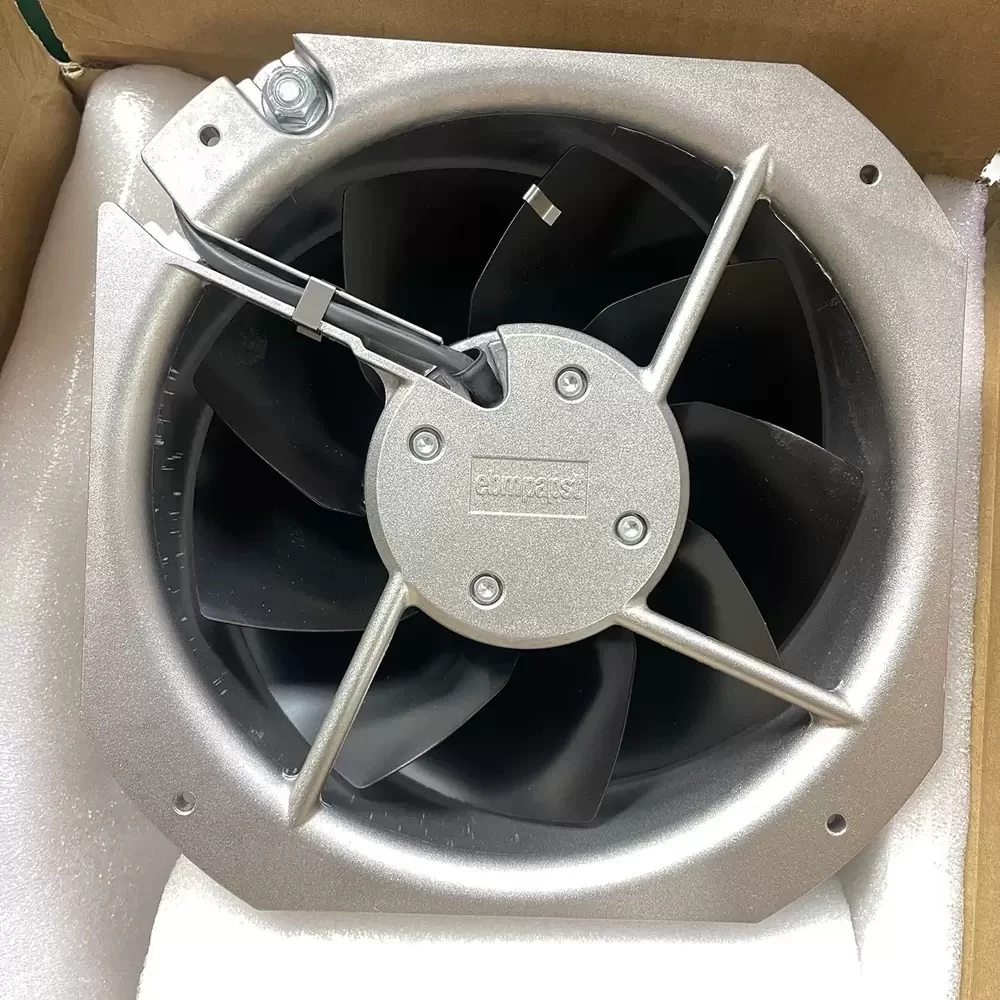

The ebm-papst W2E200-HH38-12 is a robust AC axial fan engineered for demanding thermal regulation environments requiring substantial airflow and structural durability. Featuring a rugged die-cast aluminum housing and a sheet steel impeller, this unit ensures high structural rigidity and vibration resistance. The external rotor motor design facilitates superior heat dissipation, reducing thermal impedance while maintaining consistent aerodynamic performance. Equipped with maintenance-free ball bearings, it operates efficiently across a broad temperature range, making it ideal for continuous duty applications where reliability and ingress protection are paramount.
Model Number: W2E200-HH38-12
Brand: ebm-papst
Product Type: AC Axial Fan
Rated Voltage: 230 VAC
Frequency: 50 / 60 Hz
Rated Current: 0.29 / 0.35 A
Power Consumption: 64 / 80 W
Rated Speed: 2550 / 2880 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 503.2 / 576.8 CFM (855 / 980 m³/h)
Max. Static Pressure: 0.36 / 0.44 inH₂O (90 / 110 Pa)
Dimensions: 225 x 225 x 80 mm
Weight: 2.1 kg
Life Expectancy: 40,000 Hours (at 40°C)
Noise Level: 61 / 64 dB(A)
Housing Material: Die-Cast Aluminum
Impeller Material: Sheet Steel, Black Coated
Ingress Protection: IP44
Insulation Class: Class B
Motor Type: M2E068-CF External Rotor
Direction of Rotation: Counter-clockwise seen on rotor
Mounting Orientation: Any
Operating Temperature: -25 to +65 °C (50Hz) / -25 to +70 °C (60Hz)

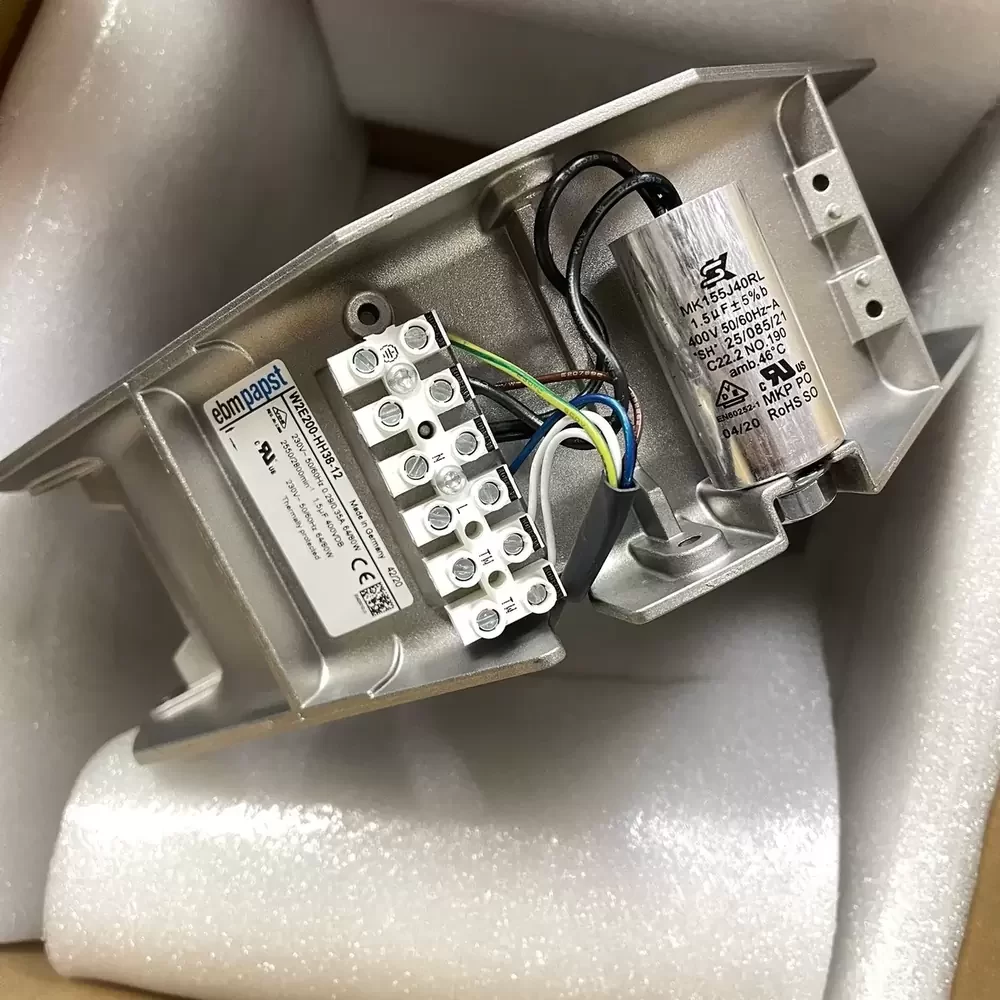

Termination: Terminal Block
Approvals: VDE, CSA, UL, CE
Phase: Single Phase
This cooling solution is specifically designed for high-density industrial electronics, including large-scale power inverters and variable frequency drive (VFD) cabinets where heat dissipation is critical. The W2E200-HH38-12 provides the necessary static pressure to force air through dense fin stacks found in server racks and industrial automation enclosures. Additionally, the W2E200-HH38-12 is widely utilized in telecommunication base stations, welding machines, and medical instrumentation where reliable thermal management is essential for component longevity and system stability.
