Description

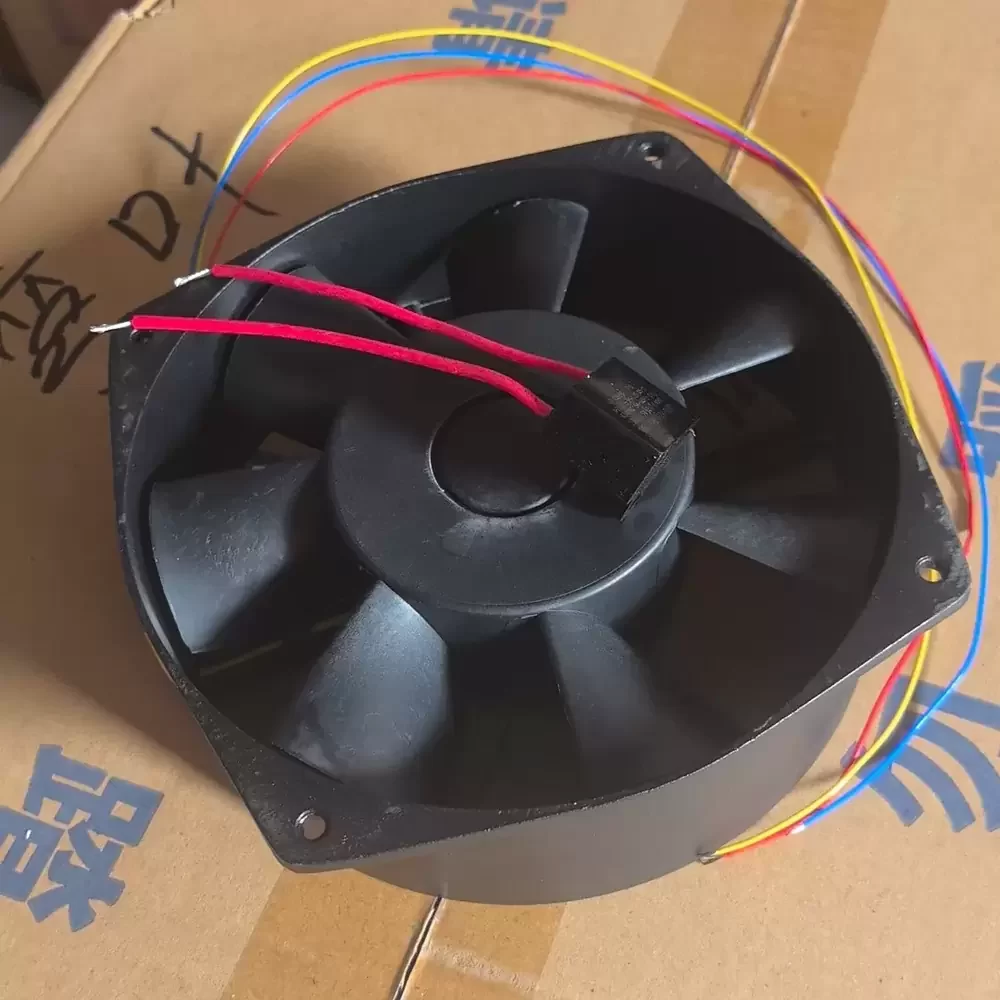

The Jiulong 150FZY9-D is a precision-engineered AC Axial Fan designed for rigorous industrial thermal management. Built with a robust copper wire motor, this unit ensures superior electrical conductivity and reduced thermal impedance, resulting in sustained high-performance operation. The fan operates on a 380VAC supply, making it ideal for heavy-duty machinery and high-voltage control systems. Its aerodynamic impeller design maximizes airflow efficiency while minimizing turbulence-induced noise. Featuring a durable housing structure, the 150FZY9-D provides exceptional structural rigidity and resistance to environmental stressors, ensuring reliable heat dissipation in demanding operational climates.
Model Number: 150FZY9-D
Brand: Jiulong
Product Type: AC Axial Fan
Rated Voltage: 380 VAC
Frequency: 50/60 Hz
Power: 30 W
Rated Current: 0.10 A
Motor Technology: Single Phase Induction Motor
Winding Material: Pure Copper
Dimensions: 150mm x 150mm x 60mm
Bearing Type: Ball Bearing
Rated Speed: 2600 RPM
Max. Air Flow: 190 CFM (322 m³/h)
Max. Static Pressure: 0.65 inH₂O (160 Pa)
Noise Level: 65 dBA
Housing Material: Die-Cast Aluminum Alloy
Blade Material: Thermoplastic PBT (UL94V-0)
Termination: Lead Wires
Operating Temperature: -20°C to +70°C
Storage Temperature: -40°C to +80°C
Life Expectancy: 50,000 Hours at 25°C
Mounting Orientation: Flange Mount
Ingress Protection: IP44
Designed for critical cooling in industrial infrastructure, the 150FZY9-D is widely utilized in telecommunication cabinets, server racks, and power distribution units. Its high-voltage capability makes it a preferred choice for CNC machine control panels and automated manufacturing equipment where 380V power is standard. By maintaining optimal operating temperatures, the 150FZY9-D prevents component failure in variable frequency drives (VFDs) and welding machines, ensuring continuous productivity in harsh factory environments.
Updated:
Additional information
| Shipping Weight | 1 kg |
|---|
