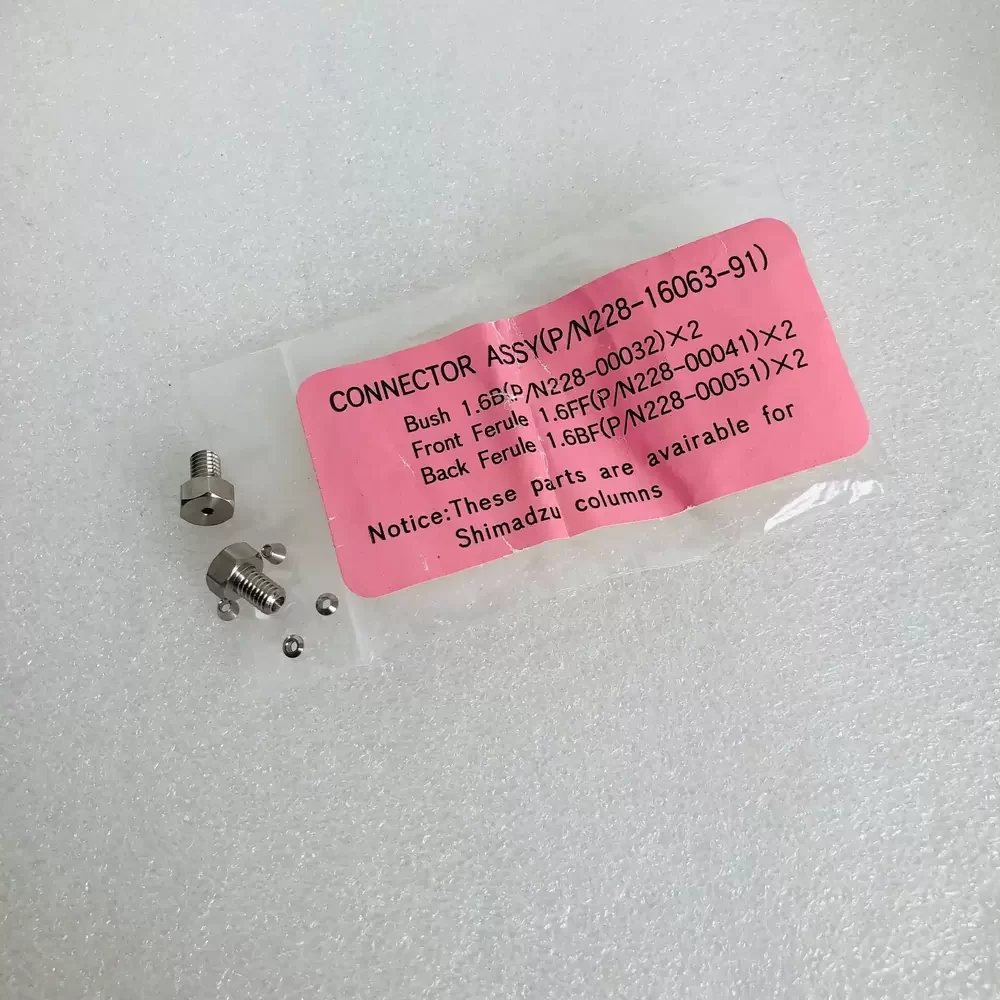

228-16063-91 Shimadzu 1.6mmOD SUS316 Capillary Connector

Description

Shimadzu 228-16063-91 features a 1.6 mm outer diameter capillary interface, SUS316 stainless steel construction, and a high-pressure threaded coupling mechanism. The connector assembly is engineered with zero dead volume tolerances to maintain fluidic integrity under high-pressure liquid flow. It utilizes precision-machined ferrules and compression nuts to ensure a leak-free seal across extreme chemical gradients.

228-16063-91 Specifications
Manufacturer: Shimadzu
Model Number: 228-16063-91
Part Name: CONNECTOR ASSY LC-6A
Component Type: Capillary Joint / Fitting
Compatible Equipment: LC-6A Pump Series
Material: SUS316 Stainless Steel
Tubing Outer Diameter (OD): 1.6 mm
Connection Type: Threaded Compression Fitting
Internal Volume: Zero Dead Volume Design
Chemical Resistance: High (Organic Solvents, Aqueous Buffers)
Pressure Rating: High Pressure Liquid Chromatography (HPLC) Standard
Mounting: In-line Pump Fluidic Path

228-16063-91 Applications
Primary applications include integration into high-performance liquid chromatography (HPLC) pump systems and gas chromatograph fluidic pathways. Deployed within LC-6A solvent delivery modules to ensure secure, high-pressure capillary connections during analytical separation processes.
