Description

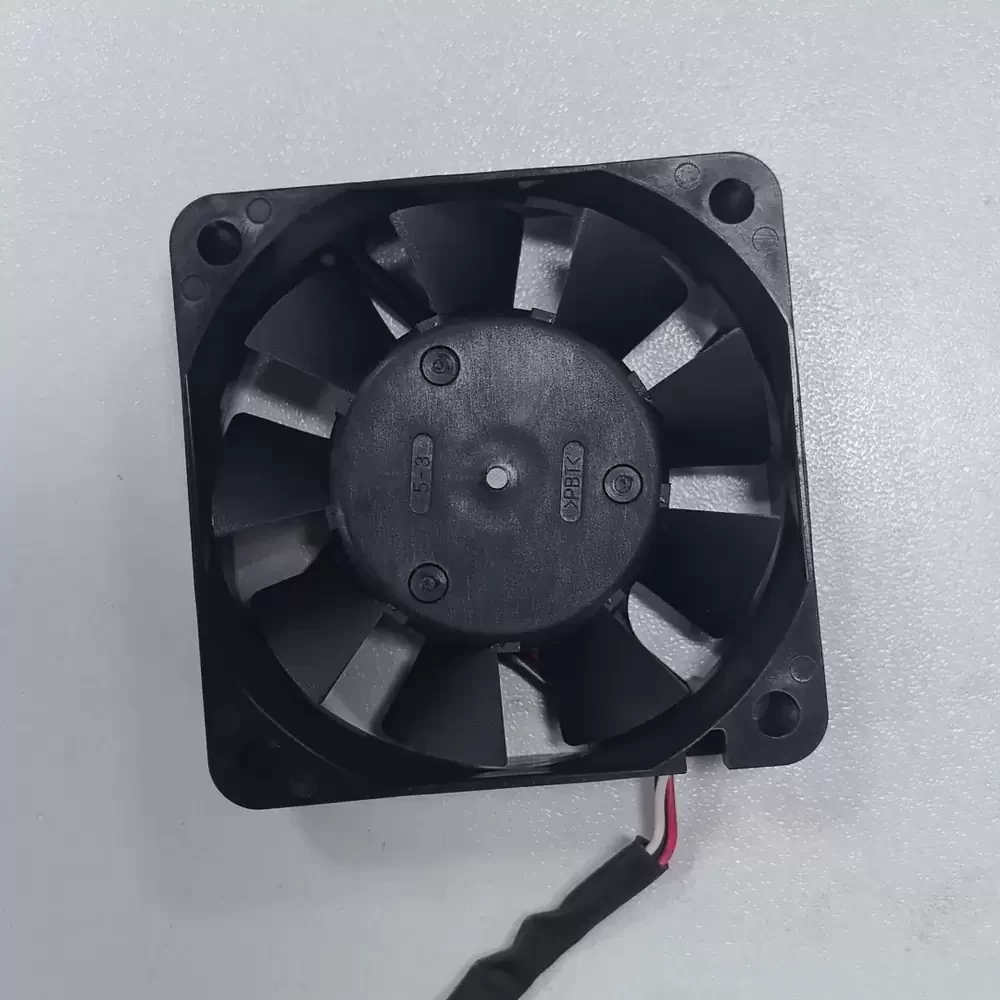

The NMB 2406KL-04W-B49-B00 is a precision-engineered DC Axial Fan designed by MinebeaMitsumi (NMB-MAT) for critical thermal management applications. This unit features an advanced aerodynamic impeller design housed within a reinforced UL94V-0 plastic frame, ensuring structural rigidity and optimal airflow dynamics. Utilizing NMB’s proprietary Dual Ball Bearing technology, the motor assembly minimizes friction and heat generation, significantly lowering thermal impedance while extending operational service life. The fan is engineered for consistent performance in industrial environments, offering a high static pressure to airflow ratio suitable for densely packed electronic enclosures.
Model Number: 2406KL-04W-B49-B00
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 12V DC
Voltage Range: 6.0 – 13.8 VDC
Rated Current: 0.17 A
Power Consumption: 2.04 W
Rated Speed: 4600 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 18.3 CFM (31.1 m³/h / 0.52 m³/min)
Max. Static Pressure: 4.1 mmH₂O (40.2 Pa / 0.16 inH₂O)
Dimensions: 60x60x15 mm
Weight: 45 g
Life Expectancy: 100,000 Hours @ 25°C
Noise Level: 34.0 dBA
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Termination: 3-Wire Lead
Sensor Type: Locked Rotor Sensor / Tachometer Signal
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Insulation Resistance: 10M Ω min. @ 500VDC
Dielectric Strength: 700VAC for 1 second
Protection: Polarity Protection, Auto Restart
The 2406KL-04W-B49-B00 is specifically optimized for forced-air cooling in industrial electronics, making it an ideal choice for variable frequency drive (VFD) inverters and power supply units. Its compact 60mm footprint allows for integration into space-constrained server racks, telecommunications equipment, and medical instrumentation where reliability is paramount. By maintaining stable operating temperatures, the 2406KL-04W-B49-B00 ensures the longevity and efficiency of sensitive components in continuous-duty cycles.
