Description

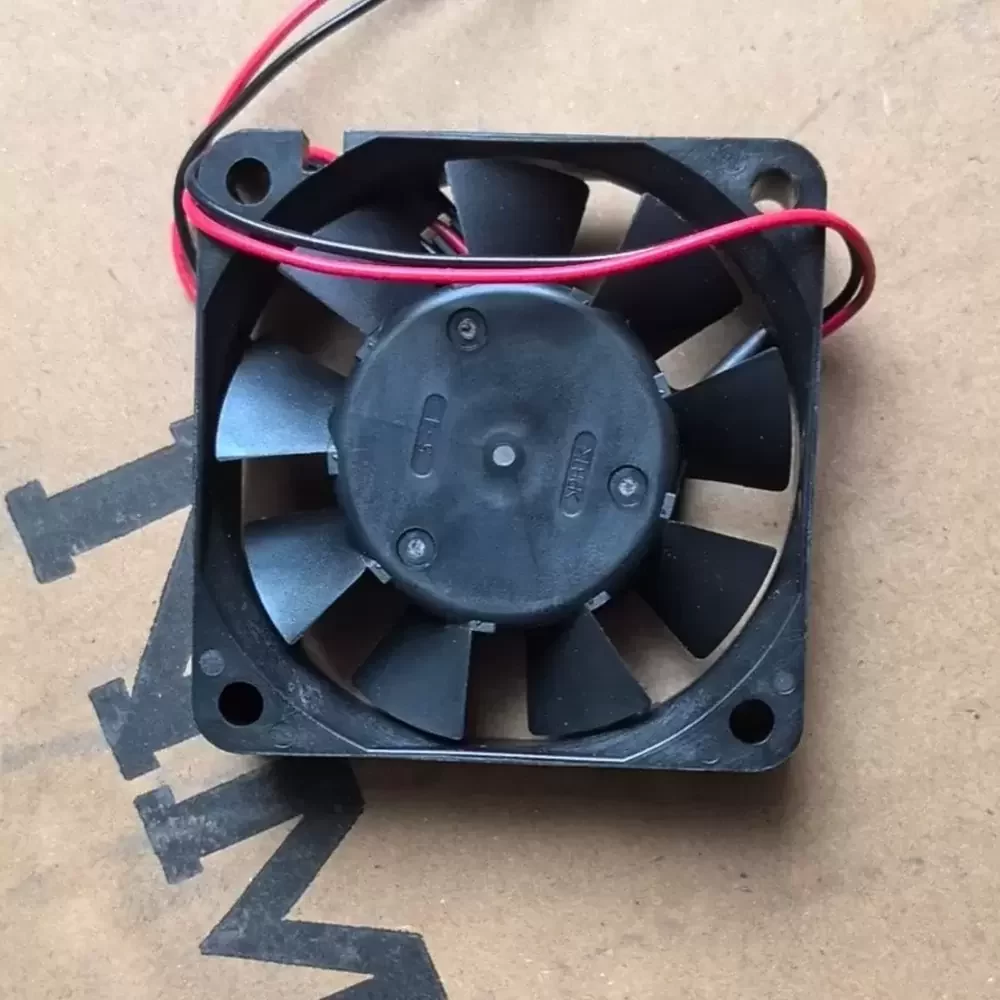

The NMB 2406KL-05W-B50-BQ1 is a precision-engineered DC axial fan designed by MinebeaMitsumi for critical thermal management applications. This unit features a robust dual ball bearing architecture that ensures long-term operational stability and reduced friction coefficients under continuous load. The aerodynamic impeller design optimizes airflow efficiency while maintaining a compact 60mm footprint, minimizing thermal impedance within high-density enclosures. Constructed with high-grade UL94V-0 plastic, the housing offers superior structural rigidity and vibration damping properties, making it suitable for industrial environments requiring reliable forced convection cooling.
Model Number: 2406KL-05W-B50-BQ1
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 10.0 – 27.6 VDC
Rated Current: 0.13 A
Input Power: 3.12 W
Rated Speed: 4600 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 18.3 CFM (31.1 m³/h / 0.52 m³/min)
Max. Static Pressure: 4.5 mmH₂O (44.1 Pa / 0.18 inH₂O)
Dimensions: 60 x 60 x 15 mm
Weight: 45 g
Noise Level: 34.0 dBA
Life Expectancy: 100,000 Hours at 25°C
Housing Material: Plastic (Black) UL94V-0
Impeller Material: Plastic (Black) UL94V-0
Termination: 2-Wire Lead (Red +, Black -)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Protection: Auto Restart, Polarity Protection
Rotation Direction: Clockwise looking at rotor
Airflow Direction: Air Out Over Struts
Insulation Resistance: 10M Ohm min. at 500 VDC
Dielectric Strength: 700 VAC for 1 second
This cooling solution is engineered for integration into compact industrial electronics and power conversion systems. The 2406KL-05W-B50-BQ1 is frequently utilized in variable frequency drives (VFDs) and solar inverters where space constraints require a slim 15mm profile without compromising airflow. Additionally, the 2406KL-05W-B50-BQ1 serves as a critical component in network switchgear, medical instrumentation, and CNC control cabinets, providing consistent thermal regulation to prevent component degradation in 24/7 operational environments.
