Description
Summary

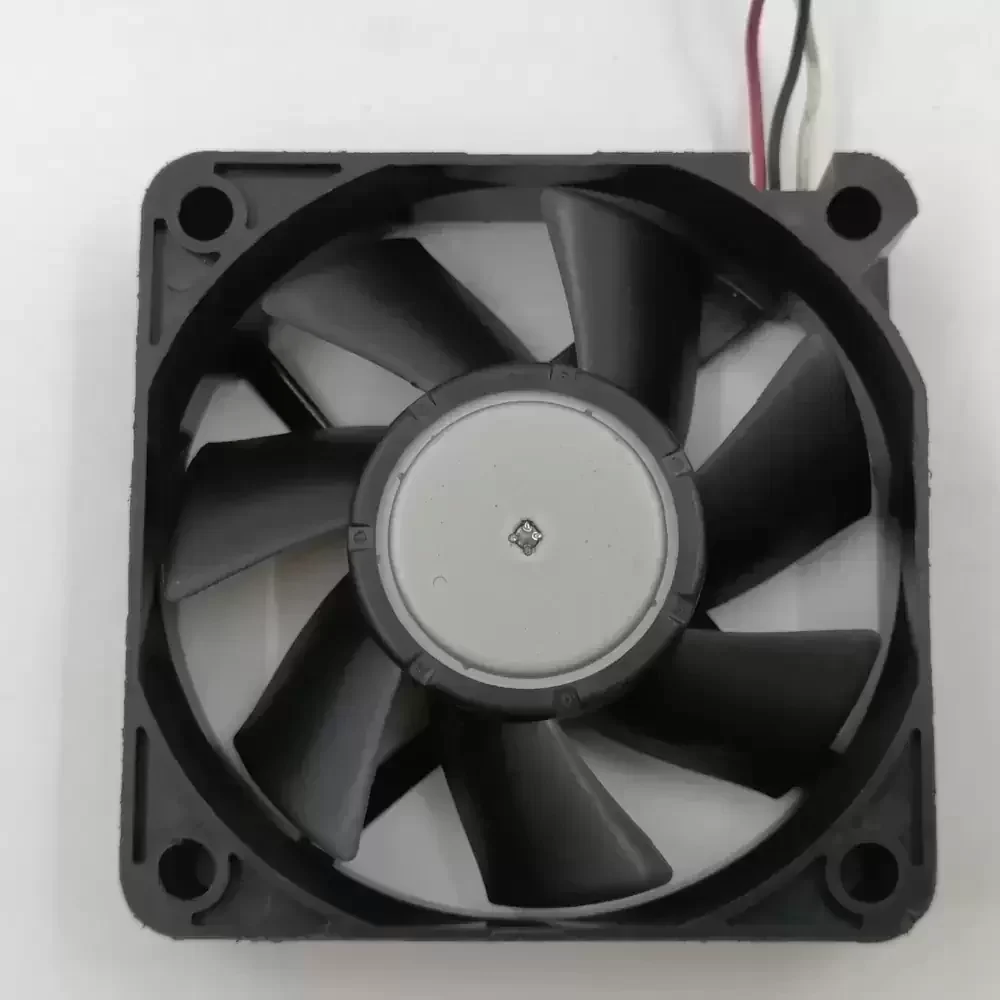

The NMB 2406RL-04W-S59 is a precision-engineered DC axial fan designed for applications requiring a balance between compact form factor and volumetric airflow efficiency. Manufactured by MinebeaMitsumi (NMB-MAT), this unit utilizes an advanced sleeve bearing architecture that ensures consistent rotational stability while minimizing acoustic resonance during operation. The aerodynamic impeller design is optimized to reduce thermal impedance in high-density electronic enclosures, providing reliable heat dissipation. Constructed with a durable housing that offers structural rigidity, the 2406RL-04W-S59 integrates a specialized motor drive circuit to maintain optimal torque and speed regulation under varying load conditions.
Model Number: 2406RL-04W-S59
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 6.0 – 13.8 VDC
Rated Current: 0.24 A
Input Power: 2.88 W
Rated Speed: 4600 RPM
Bearing Type: Sleeve Bearing
Max. Air Flow: 18.3 CFM (31.1 m³/h / 0.52 m³/min)
Max. Static Pressure: 4.2 mmH₂O (41.2 Pa / 0.16 inH₂O)
Dimensions: 60 x 60 x 15 mm
Weight: 45 g
Noise Level: 36.0 dBA
Termination: 3-Wire (Lead Wire)
Sensor Type: Tachometer Output (Speed Sensor)
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 30,000 Hours (at 25°C)
Mounting Orientation: Vertical / Horizontal
Ingress Protection: Standard IP20
Application
The 2406RL-04W-S59 is engineered for critical thermal management in compact industrial and consumer electronics. Frequently utilized in server rack cooling modules, network switchgear, and power supply units, this fan ensures component longevity by preventing thermal throttling. The 2406RL-04W-S59 is also suitable for medical instrumentation and small-form-factor automation equipment where space constraints prevent the use of larger cooling solutions, providing a reliable airflow stream to sensitive semiconductors and heat sinks.
