MGA12012UB-W38 Magic 12VDC 2.20A 120x38mm Axial Fan

Description

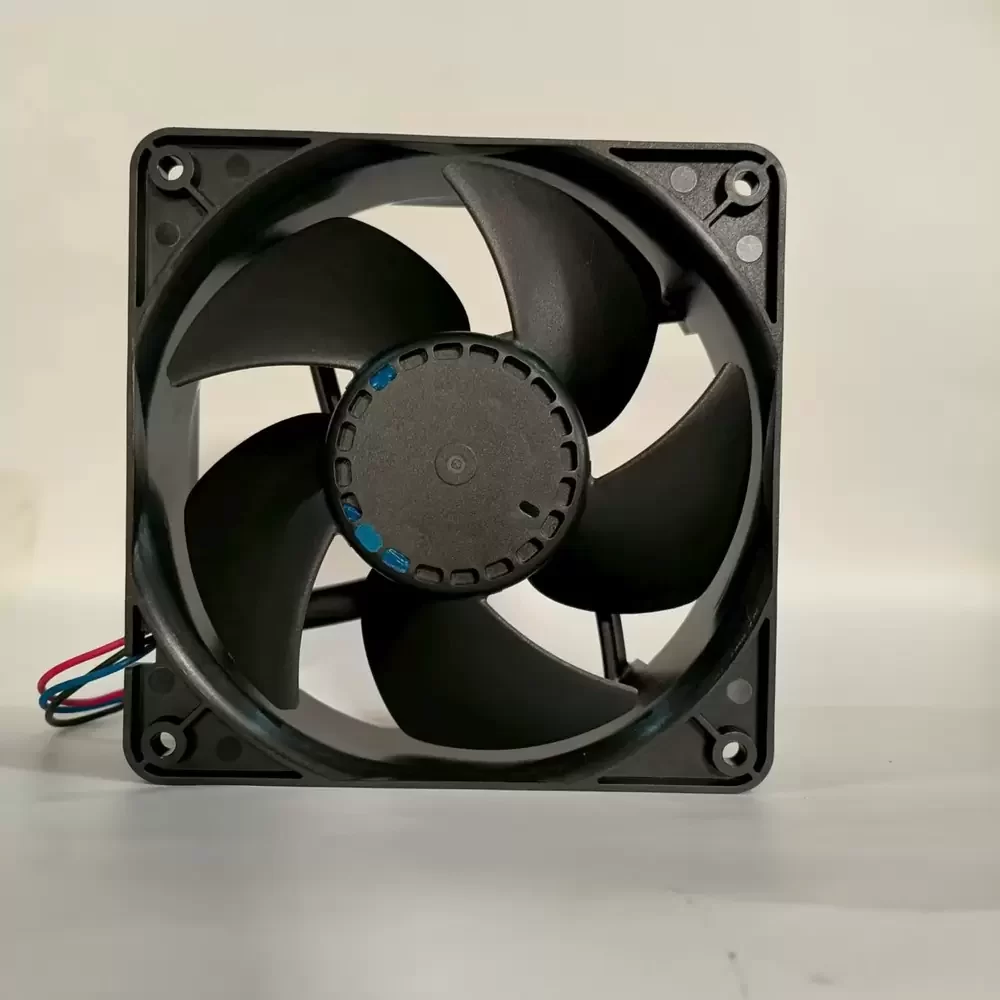

Magic MGA12012UB-W38 is a 120 x 120 x 38 mm high-performance axial fan operating at 12 VDC with a 2.20 A current draw. The unit features a reinforced PBT plastic impeller and housing rated to UL 94V-0 standards. It utilizes a precision dual ball bearing system to support rotational speeds of 4000 RPM, delivering 192.9 CFM of airflow. The internal brushless DC motor includes polarity protection and auto-restart functionality, interfaced via a 3-wire lead configuration for power and tachometer feedback.

MGA12012UB-W38 Specifications
Model: MGA12012UB-W38
Brand: Magic (Protechnic Electric)
Category: DC Axial Fan
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 10.2 to 13.8 VDC
Rated Current: 2.20 A
Input Power: 26.4 W
Rated Speed: 4000 RPM
Maximum Airflow: 192.9 CFM
Static Pressure: 0.571 in H2O
Noise Level: 57.0 dBA
Bearing Type: Dual Ball Bearing
Material: PBT Thermoplastic (UL 94V-0)

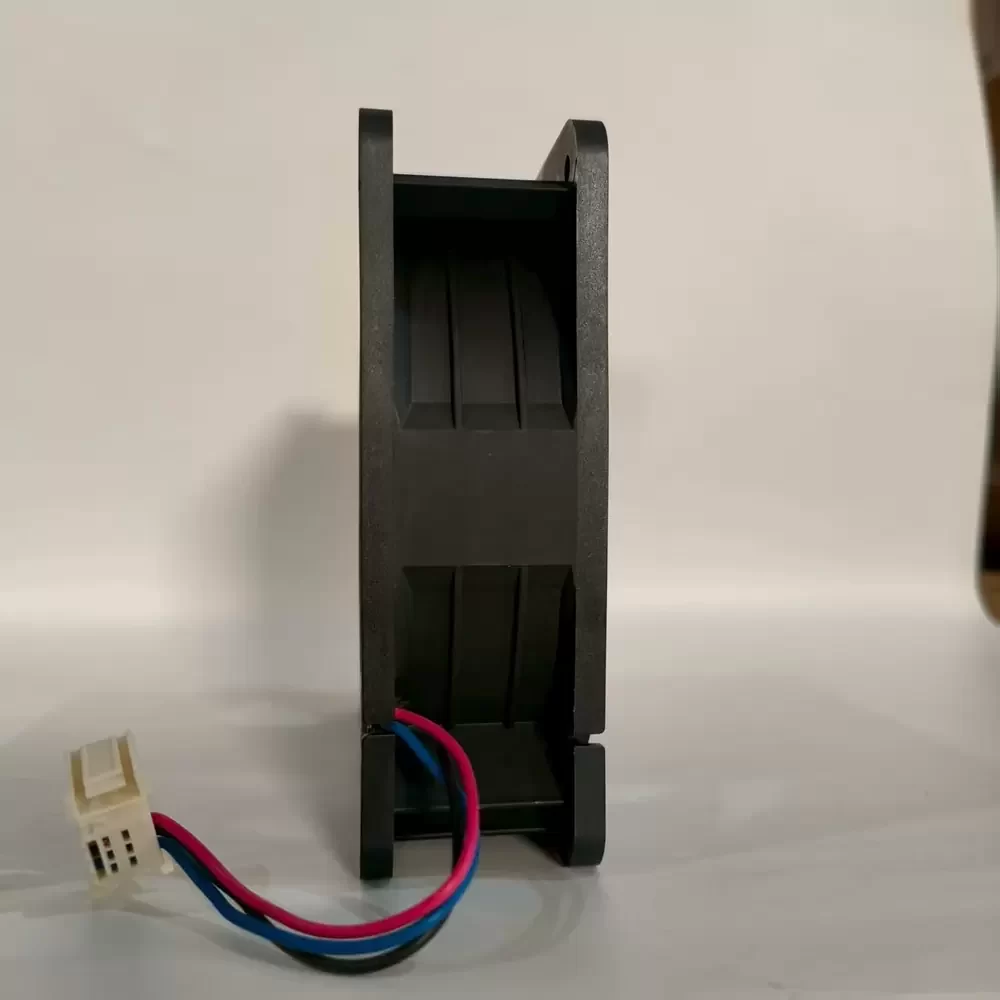

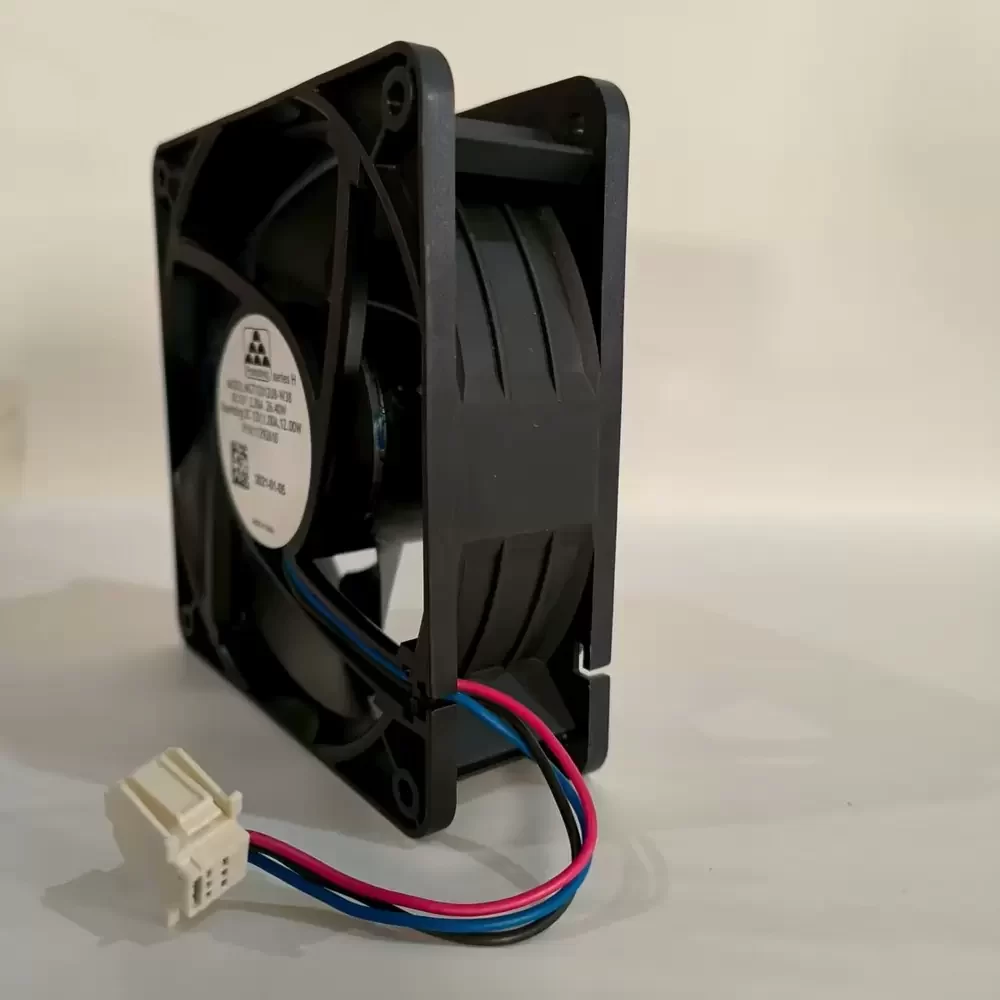

Termination: 3-Wire Lead
Weight: 300 g
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Life Expectancy: 70,000 Hours at 40 °C
Safety Approvals: UL, TUV, CE

MGA12012UB-W38 Applications
Primary applications include integration into industrial drying cabinets, high-density server rack enclosures, and telecommunications base station cooling systems. Deployed within CNC machine control consoles and large-scale power inverter thermal management modules to maintain operational temperatures.
