Description

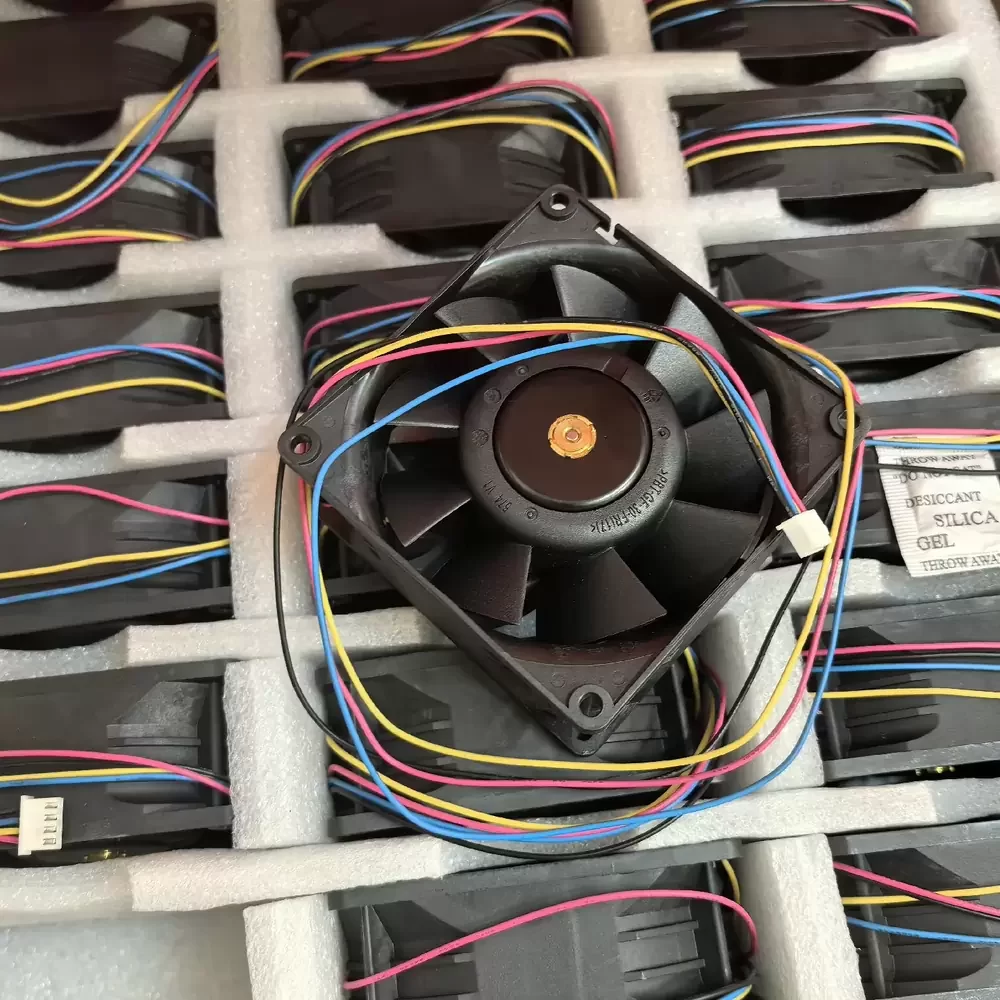

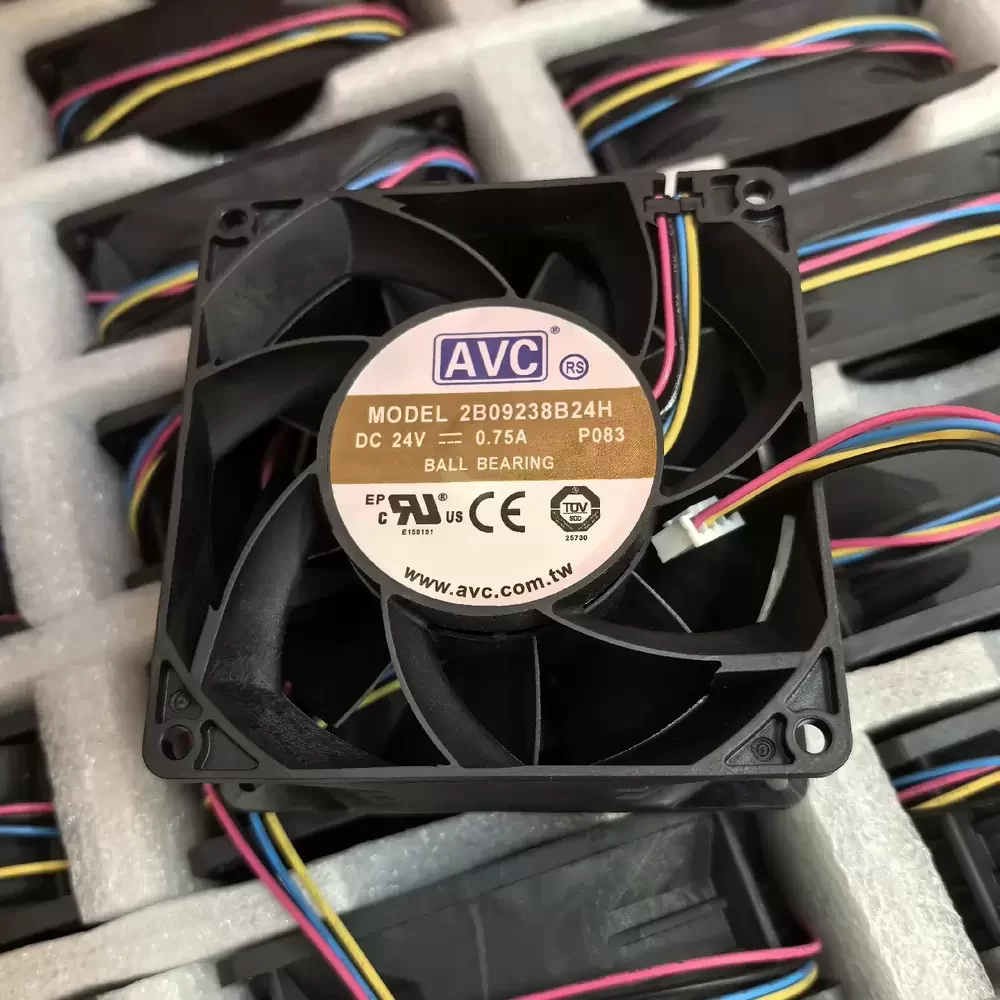

AVC 2B09238B24H-P083 is a 24VDC 92x92x38mm Axial Fan optimized for high-impedance thermal management in industrial power electronics. This unit features a high-torque DC brushless motor with dual ball bearing architecture, ensuring structural rigidity and extended service life under continuous duty cycles. The aerodynamic impeller design is engineered to minimize thermal impedance in densely packed enclosures. Operating at 0.75A with a rated power of 18W, this fan delivers significant static pressure to overcome the resistance of fine-mesh filters and heat sink fins, making it a critical component for maintaining system stability in high-demand environments.
Model Number: 2B09238B24H-P083
Brand: AVC
Product Type: Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.75 A
Power: 18.0 W
Rated Speed: 6500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 115.3 CFM
Max. Static Pressure: 18.2 mmH2O
Dimensions: 92 x 92 x 38 mm
Weight: 195 g
Life Expectancy: 70,000 Hours at 40 C
Speed Control: PWM Signal Control
Feedback: Tachometer / Frequency Generator
Termination: 4-Wire Lead Wires
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Operating Temperature: -10 to +70 C
Protection: Locked Rotor Protection, Reverse Polarity Protection
2B09238B24H-P083 Applications
1. VFD Control Cabinets: High static pressure capability allows for efficient heat dissipation through the restrictive heat sinks of variable frequency drives.
2. 3U Rackmount Servers: The 38mm depth and high RPM profile provide the necessary CFM to maintain airflow across high-density processor arrays.
3. Industrial Power Supplies: Ideal as a replacement fan for heavy-duty SMPS units where high-velocity cooling is required to prevent thermal throttling.
4. Telecom Base Stations: Ruggedized dual-ball bearing construction ensures reliability in remote outdoor enclosures with high ambient temperature fluctuations.
