Description

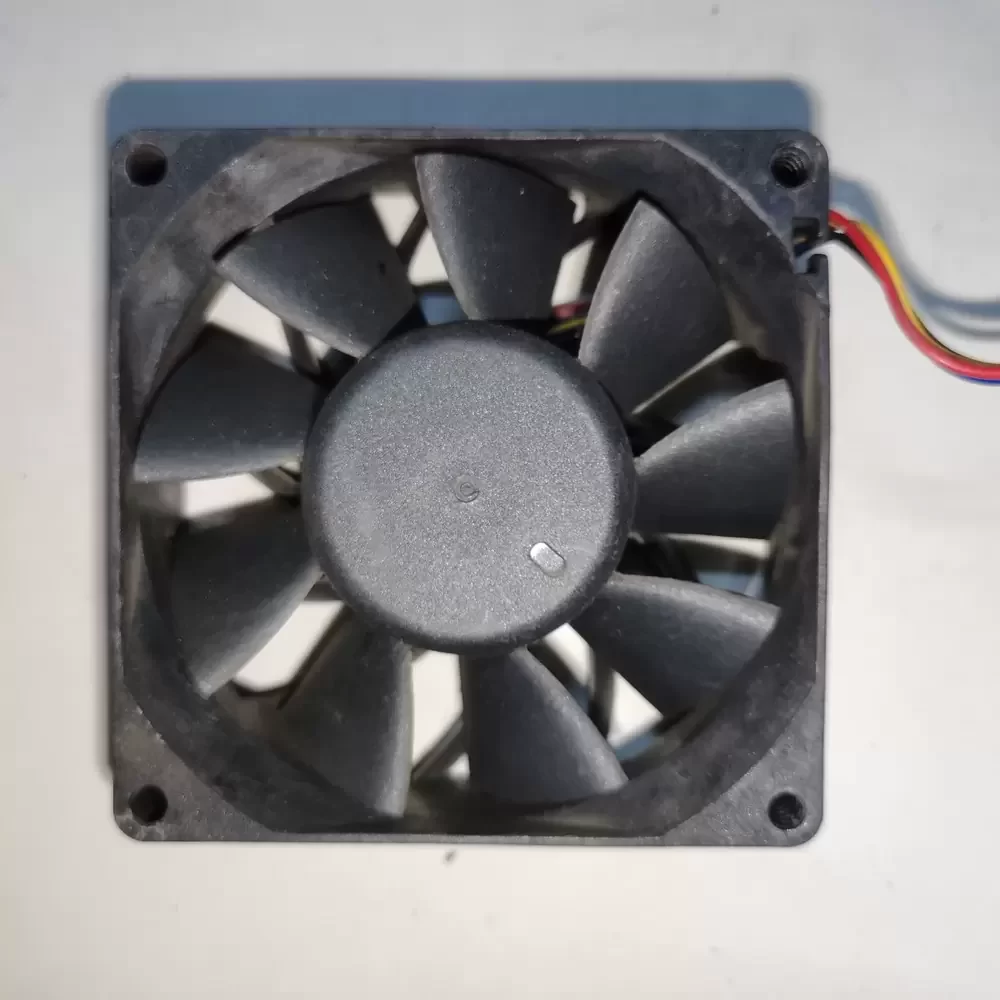

AVC DBTA0825B2U-P001 is a 12VDC 80x80x25mm Axial Fan optimized for high-density thermal management in server and networking environments. This unit features a sophisticated dual ball bearing architecture designed to minimize thermal impedance and ensure long-term structural rigidity under continuous operation. Utilizing a 4-wire PWM control interface, it allows for precise speed modulation to balance acoustic output with cooling demands. With a rated current of 0.54A and high RPM capabilities, it effectively overcomes system impedance in restricted enclosures. The aerodynamic blade profile is engineered for maximum static pressure, making it a reliable replacement fan for mission-critical hardware requiring consistent 12VDC cooling performance.
Model Number: DBTA0825B2U-P001
Brand: AVC
Product Type: Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.54 A
Power: 6.48 W
Rated Speed: 5000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 58.5 CFM (99.4 m³/h / 1.65 m³/min)
Max. Static Pressure: 12.4 mmH₂O (121.6 Pa / 0.49 inH₂O)
Dimensions: 80 x 80 x 25 mm
Weight: 85 g
Life Expectancy: 70,000 hours
Speed Control: PWM, Tachometer
Ingress Protection: IP54 Rated
Insulation Class: Class A
Housing Material: UL94V-0 Plastic
Blade Material: UL94V-0 Plastic
Termination: 4-Wire Lead
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Mounting Orientation: All Directions
Certifications: CE, TUV, UL
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
DBTA0825B2U-P001 Applications
1. 2U Rackmount Servers: High static pressure overcomes the airflow resistance of densely packed drive bays and heat sinks.
2. Enterprise Networking Switches: PWM control allows for dynamic cooling based on traffic load, extending component lifespan.
3. Industrial VFD Cabinets: Dual ball bearings provide the necessary durability for vertical mounting in high-vibration industrial environments.
4. Telecom Base Stations: Reliable replacement fan for outdoor enclosures requiring consistent thermal regulation under varying ambient temperatures.
