Description

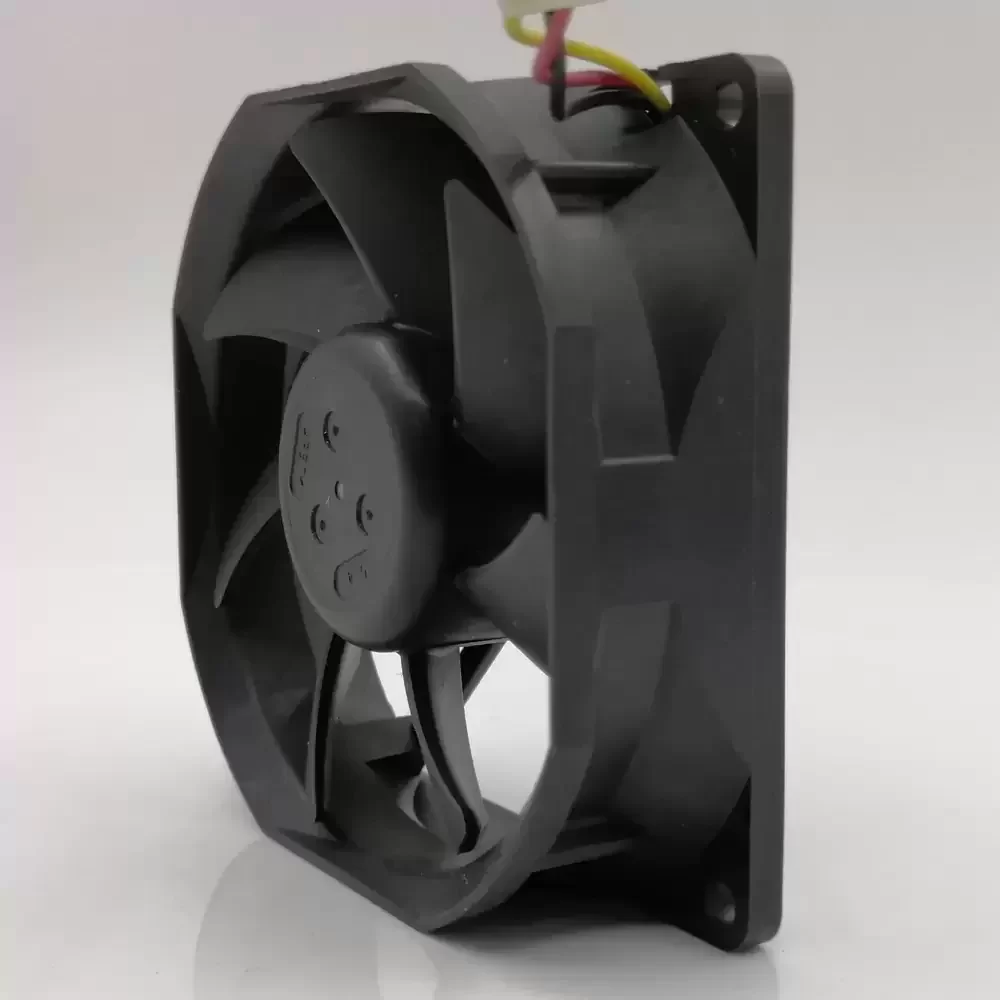

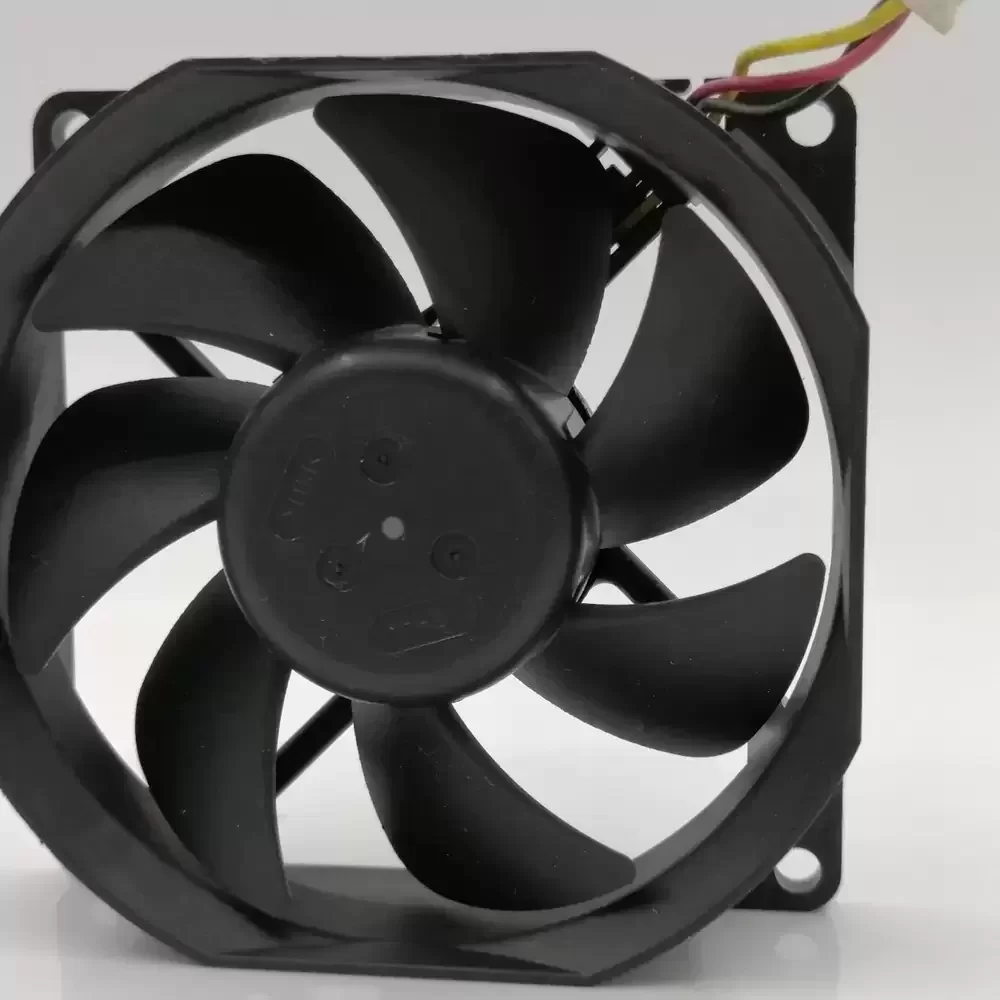

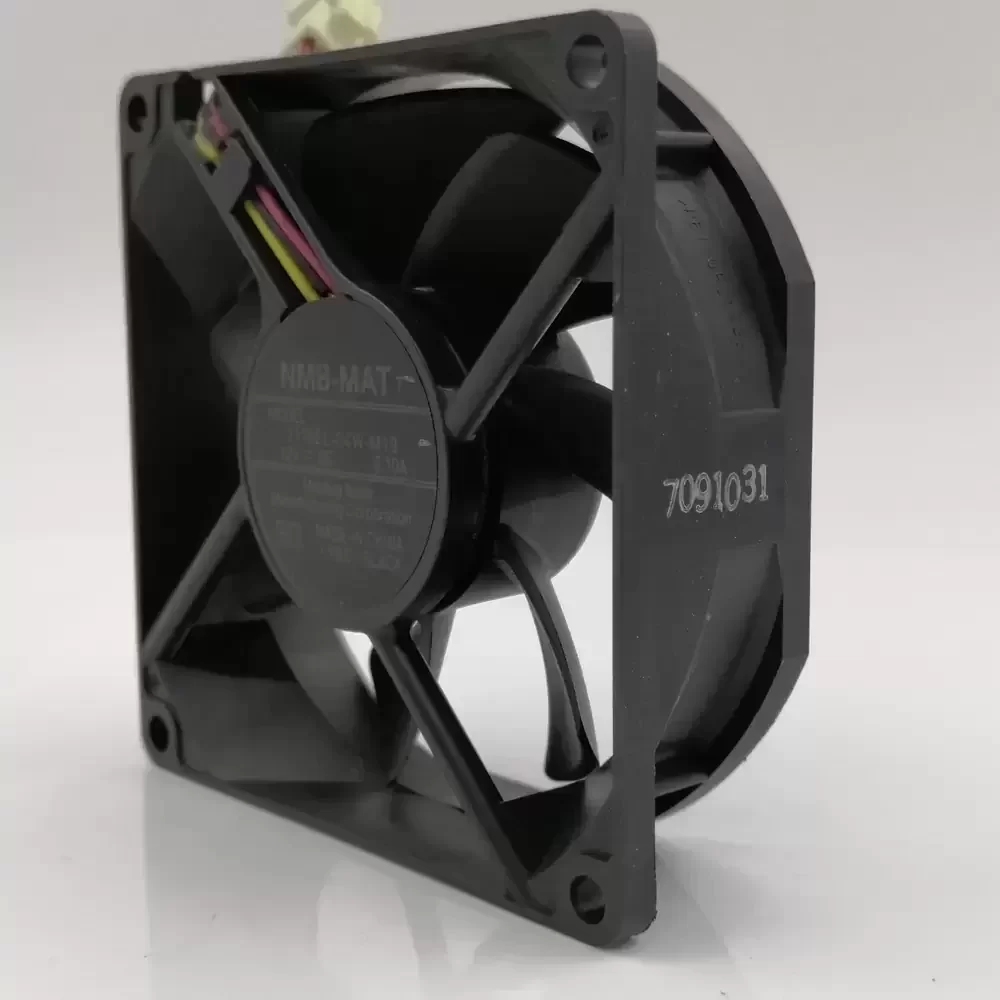

The NMB-MAT 3110EL-04W-M19-H01 is a precision-engineered Axial Fan designed for critical thermal management in industrial electronics. Utilizing advanced DC motor technology and NMB’s proprietary bearing architecture, this unit minimizes friction and thermal impedance while maintaining exceptional structural rigidity under continuous operation. The aerodynamic impeller design optimizes airflow efficiency, delivering consistent static pressure with reduced acoustic resonance. Engineered for reliability, the 3110EL-04W-M19-H01 ensures long-term stability in demanding environments, making it an ideal solution for systems requiring low-vibration cooling and high-durability performance.
Model Number: 3110EL-04W-M19-H01
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 6.0 – 13.8 VDC
Rated Current: 0.10 A
Power: 1.20 W
Rated Speed: 2900 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 31.8 CFM (54.0 m³/h / 0.90 m³/min)
Max. Static Pressure: 3.2 mmH₂O (31.4 Pa / 0.13 inH₂O)
Dimensions: 80x80x25mm
Weight: 95 g
Life Expectancy: 100,000 Hours @ 25°C
Termination: 3-Wire Leads (Signal/Tachometer)
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Noise Level: 29.0 dB(A)
Ingress Protection: IP40
Direction of Rotation: Clockwise
Safety Certifications: UL, CSA, TUV, VDE
This cooling solution is widely utilized in telecommunications equipment, server rack enclosures, and precision medical instrumentation where consistent airflow is mandatory. The 3110EL-04W-M19-H01 excels in compact power supply units and industrial automation controllers, effectively dissipating heat from sensitive components. Integrators frequently select the 3110EL-04W-M19-H01 for network switches and CNC machinery control panels due to its balance of airflow performance and acoustic profile, ensuring optimal operating temperatures for mission-critical hardware.
