Description

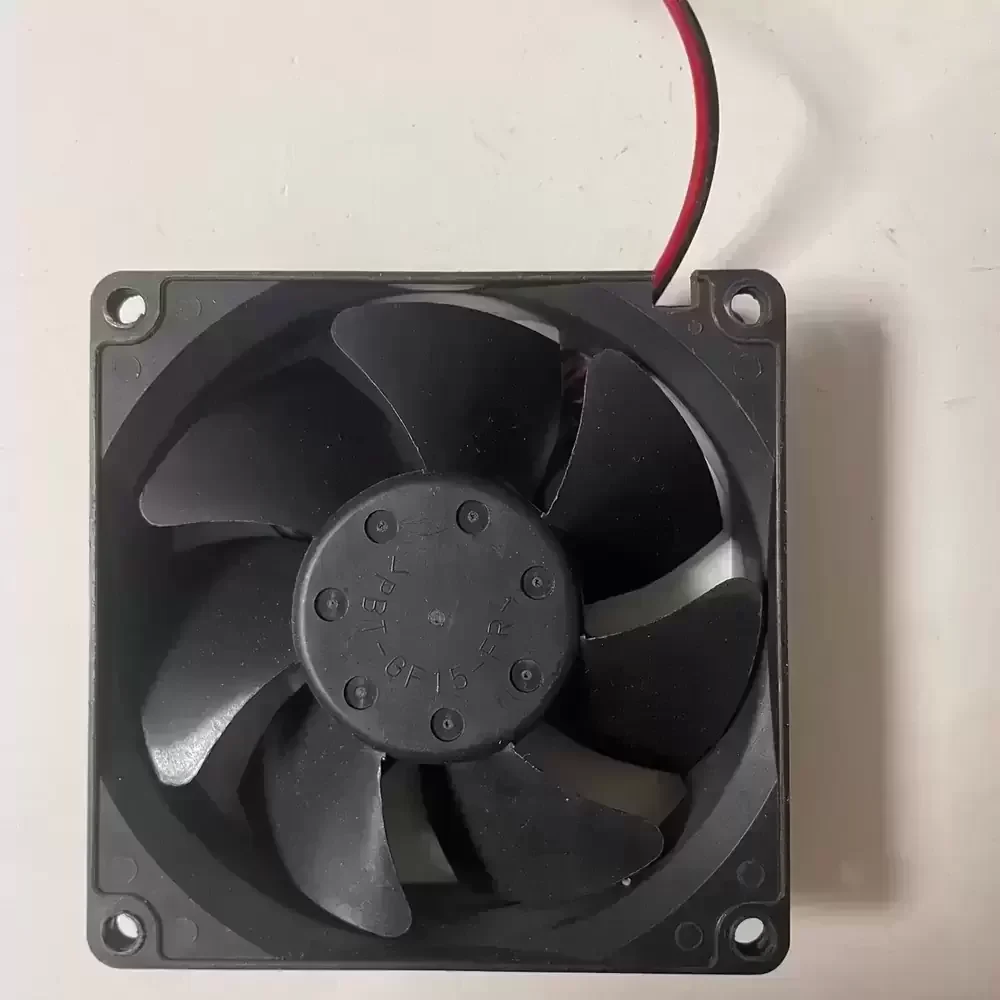

The NMB-MAT 3110KL-04W-B79-F03 is a precision-engineered Axial Fan designed for critical thermal management in industrial environments. Utilizing advanced DC motor technology coupled with a robust Dual Ball Bearing architecture, this unit ensures minimal friction and extended operational longevity under continuous load. The aerodynamic impeller design optimizes static pressure capabilities while maintaining a balanced thermal impedance profile. Constructed for structural rigidity, the 3110KL-04W-B79-F03 delivers reliable airflow performance, making it an essential component for maintaining system stability in high-density electronic enclosures and power supply units.
Model Number: 3110KL-04W-B79-F03
Brand: NMB-MAT (Minebea)
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 6.0 – 13.8 VDC
Rated Current: 0.38 A
Power Input: 4.56 W
Rated Speed: 4500 RPM (Nominal)
Bearing Type: Dual Ball Bearing
Max. Air Flow: 53.0 CFM (1.50 m³/min)
Max. Static Pressure: 8.0 mmH₂O (78.4 Pa / 0.31 inH₂O)
Dimensions: 80x80x25mm
Weight: 95 g
Life Expectancy: 100,000 Hours @ 25°C
Termination: 2-Wire (Lead Wires)
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Noise Level: 42.0 dBA
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP20
Mounting Orientation: Any
Designed for rigorous operational demands, the 3110KL-04W-B79-F03 is frequently deployed in Uninterruptible Power Supplies (UPS) and industrial control chassis where consistent thermal dissipation is mandatory. The 3110KL-04W-B79-F03 excels in server rack cooling solutions, effectively mitigating heat buildup in dense component configurations. Its robust construction also suits telecommunications equipment and automation machinery requiring reliable forced air convection.
